| Ref | Part Number | Description |
|---|
| 2 |
5007250 |

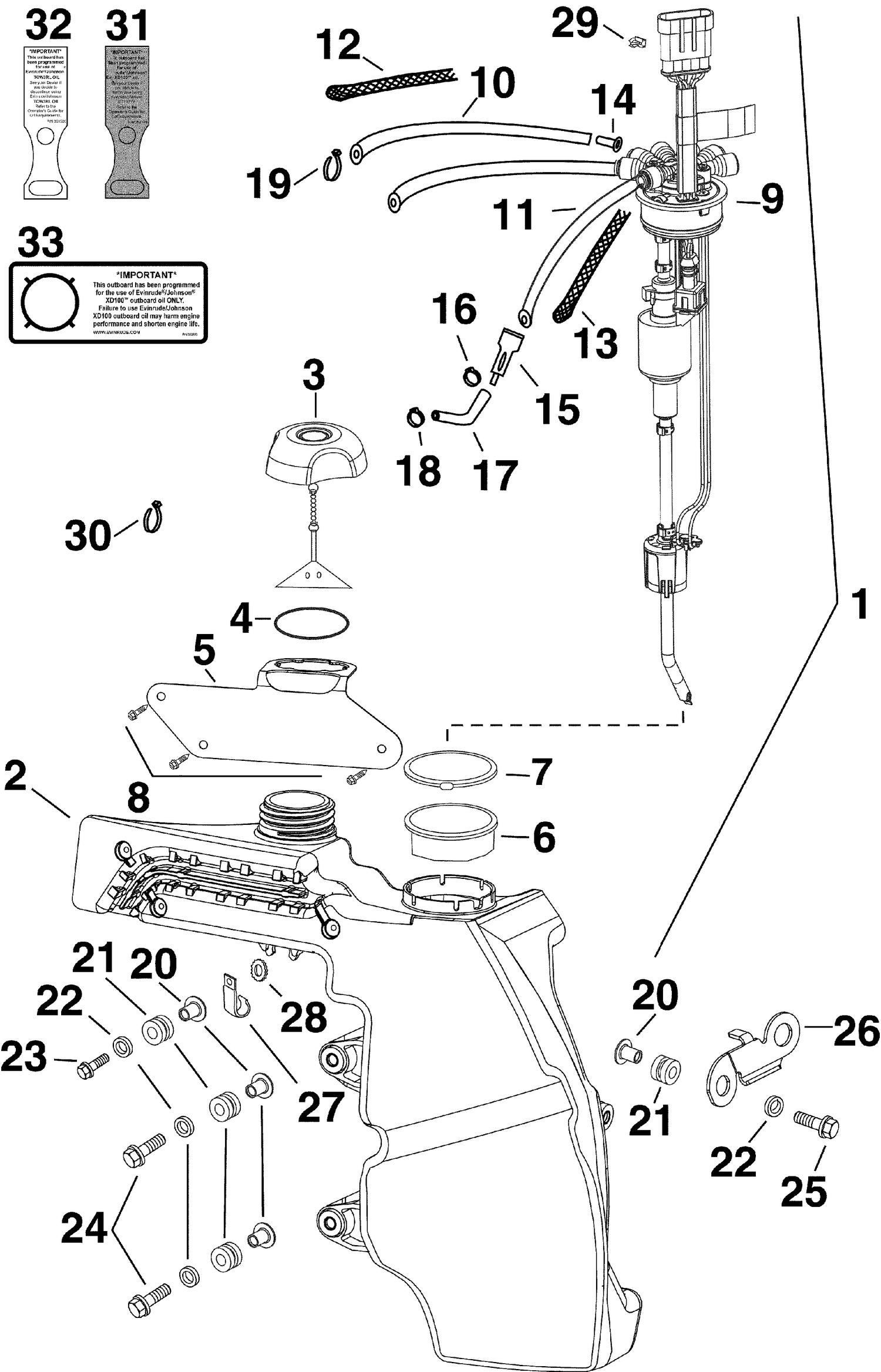

OIL TANK & PUMP Assy This part replaces 5005484. |
| 9 |
5007476 |
Kit Ay This part replaces 5007251. |
| 18 |
0348838 |
CLAMP, 10.5mm |
| 24 |
0325115 |
SCREW, Oil tank/EMM mount |
| 25 |
0341011 |
SCREW, Adapter to housing, outer |
| 26 |
0350990 |
BRACKET, Oil tank mount to injector |
| 27 |
0330151 |
CLAMP, Harness to oil tank boss |
| 30 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 31 |
0351520 |
EMM Oil program tag - XD100 Oil |
| 32 |
0351519 |
EMM Oil program tag - TC-W3 Oils |
