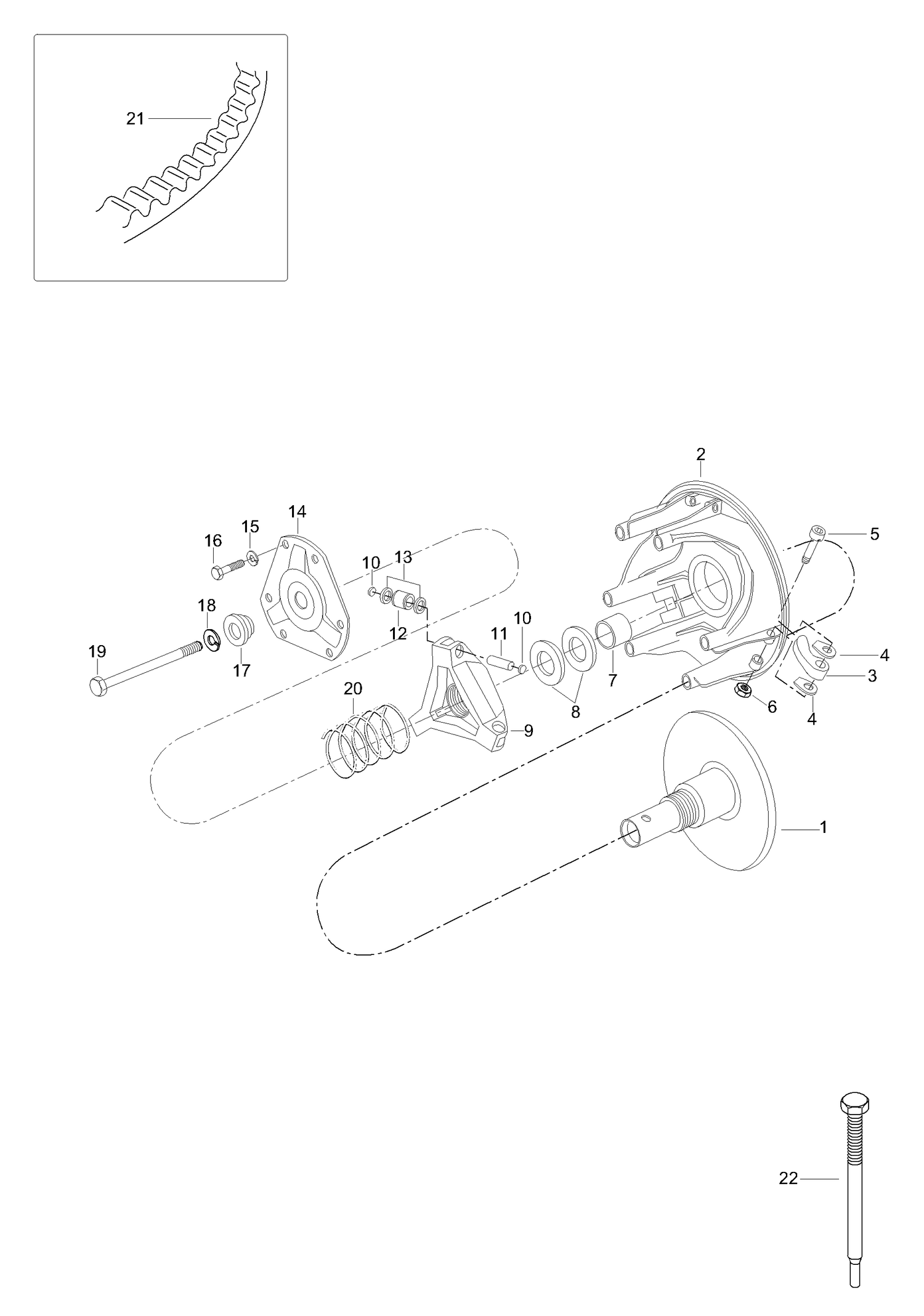

05- Clutch
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 140028 | Fixed pulley |
| 2 | 140024 | Sliding pulley |
| 3 | 140030 | Cam arm |
| 7 | 140023 | Bushing |
| 8 | 140022 | Spacer for spider Ass'y |
| 10 | 140021 | Spider thrust button Ass'y |
| 11 | 140020 | Pin assy |
| 12 | 140018 | Roller assy |
| 13 | 140019 | Thrust washer Ass'y |
| 14 | 140016 | Cover plate |
| 17 | 140013 | Pilot washer |
| 18 | 20090 | Spring Washer DIN 6796,keltapass,(1=10pc - Call your local BRP dealership |
| 19 | 417113800 | BOLT - Call your local BRP dealership |
| 20 | 140031 | Spring, silver/black |
| 21 | 414633800 | Drive belt |
