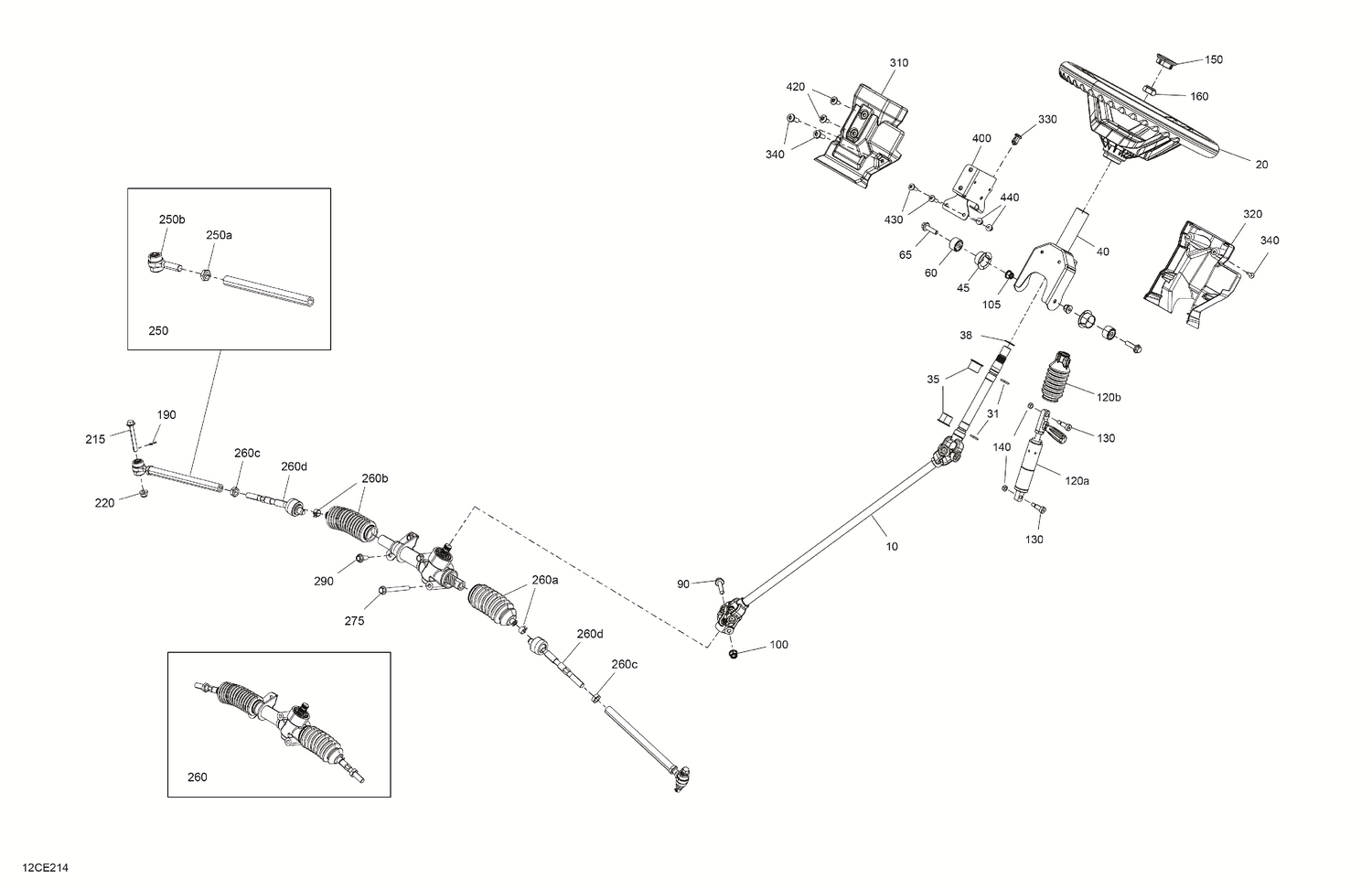

03- Mechanic - Steering
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 709402491 | Steering Column |
| 20 | 709401513 | Steering Wheel |
| 31 | 293300144 | O-Ring |
| 35 | 709402725 | Steering Bushing |
| 38 | 293370110 | Circlip |
| 40 | 709401602 | Steering Support |
| 45 | 709401603 | Bushing |
| 60 | 709401604 | Bushing |
| 65 | 207683044 | Hex. Flange Screw M8 X 30 |
| 90 | 250001021 | Hex. Flange Screw M8 X 35 |
| 100 | 233281416 | Hex. Elastic Flange Nut M8 |
| 105 | 233281416 | Hex. Elastic Flange Nut M8 |
| 120a | 709402506 | Adjustment Cylinder |
| 120b | 709401232 | Boot Tube Side |
| 130 | 250000669 | Socket Head Screw M8 X 16 |
| 140 | 232561414 | Elastic Stop Nut M6 |
| 150 | 709401514 | Steering Cap |
| 160 | 232511414 | Elastic Lock Nut M16 |
| 190 | 211400017 | Cotter Pin |
| 215 | 250000814 | Screw Hex Cap M10 X 75 |
| 220 | 233201436 | Hex. Flange Elastic Nut M10 |
| 250a | 715900238 | Steering Rod Nut |
| 250b | 709401601 | Ball Joint |
| 260a | 715900235 | Boot Kit, Pinion Side |
| 260b | 715900236 | Boot Kit, Tube Side |
| 260c | 715900238 | Steering Rod Nut |
| 260d | 715900951 | Steering Rod |
| 275 | 230500046 | Hex. Screw M10 X 100, Scotch Grip |
| 290 | 207502546 | Hex. Flange Screw M10 X 25 |
| 310 | 709402012 | Steering Box Cover |
| 320 | 709402013 | Steering Box Cover |
| 330 | 293150230 | Tuflok Plastic Rivet |
| 340 | 250000720 | Torx Screw K50 X 16 |
| 400 | 709401962 | Flasher Arm Support |
| 420 | 250000722 | Torx Screw M6 X 20 |
| 430 | 250000712 | Torx Screw M6 X 20 |
