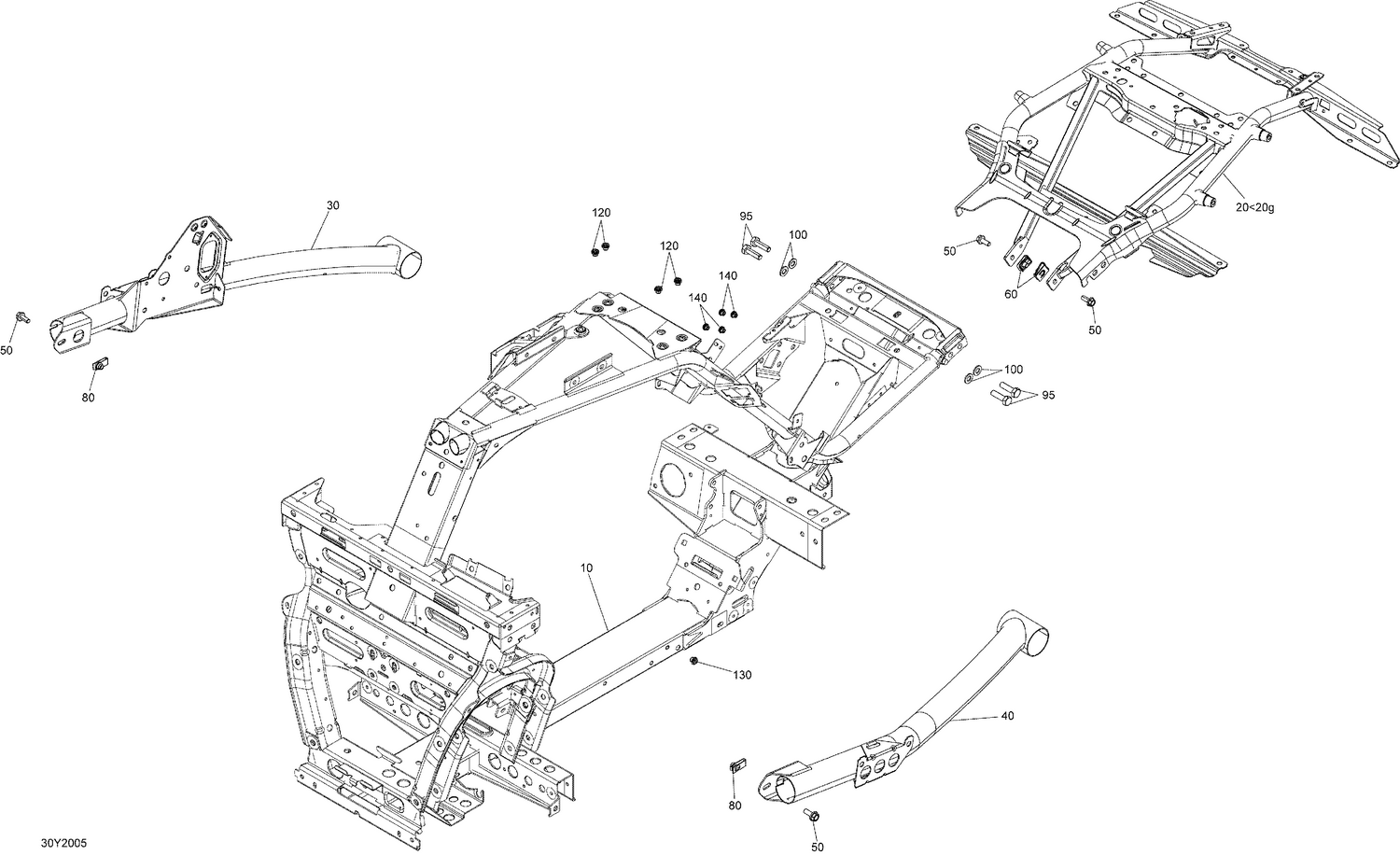

09- Frame
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 705210350 | Chassis This part replaces 705208647. |
| 30 | 705204607 | Carbon Black, RH Upper Lateral Support |
| 40 | 705204612 | Carbon Black, LH Upper Lateral Support |
| 50 | 207582054 | Hex Screw Washer Head M8 X 20 |
| 60 | 250100069 | Panel Nut M8 X 1.25 |
| 80 | 250100118 | Panel Nut M8 X 1.25 |
| 95 | 207303544 | Hex. Screw M10 x 35 (Scotch Grip) |
| 100 | 234101411 | Lock Washer Helical M10 |
| 120 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 130 | 250100199 | Insert Half Hex Body M6 x 1.0 |
