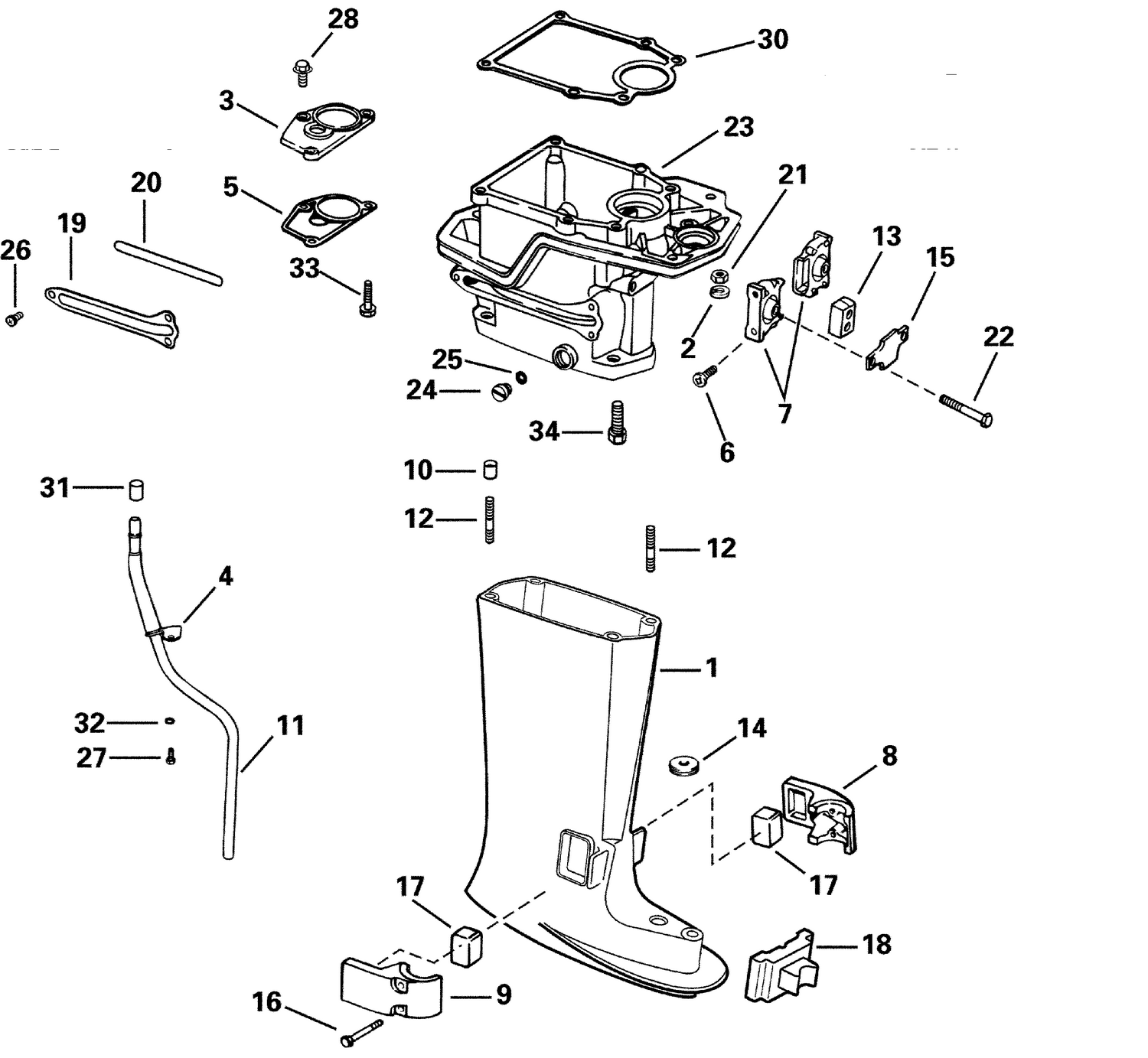

| Ref | Part Number | Description |
|---|
| 1 |
0441100 |
EXHAUST HOUSING ASSY. |
| 2 |
0446078 |
WASHER, Exhaust tube |
| 3 |
0441103 |
PLATE, Water tube |
| 4 |
0441031 |
GROMMET, Water tube |
| 5 |
0441201 |
GASKET, Plate |
| 6 |
0319545 |
VIS, supports de montage supérieurs vers support de direction |
| 7 |
0440184 |
MOUNT ASSY., Upper |
| 8 |
0441177 |
MOUNT BRACKET, Lower, port |
| 9 |
0441176 |
MOUNT BRACKET, Lower, stbd. |
| 11 |
0440175 |
WATER TUBE, 20 in. |
| 11 |
0440177 |
WATER TUBE, 15 in. |
| 12 |
0441111 |
STUD, Oil sump to exhaust housing |
| 13 |
0340893 |
THRUST MOUNT, Upper |
| 14 |
0552360 |
PASSE-FILS, tige de commande de sens de marche |
| 15 |
0446381 |
PLATE, Upper mounts |
| 16 |
0325115 |
SCREW, Oil tank/EMM mount |
| 17 |
0318997 |
LATERAL MOUNT, Lower |
| 18 |
0441175 |
THRUST MOUNT, Lower |
| 19 |
0441196 |
COVER, Exhaust passage |
| 20 |
0441197 |
SEAL, Cover |
| 21 |
0446077 |
NUT, Oil sump to exhaust housing |
| 22 |
0305652 |
VIS, manette des gaz |
| 23 |
0441099 |
OIL SUMP |
| 26 |
0446172 |
VIS, couvercle |
| 27 |
0446136 |
SCREW, Deflector to oil sump |
| 30 |
0441118 |
GASKET, Pan to block |
| 31 |
0441028 |
BUSHING, Water tube |
