| Ref | Part Number | Description |
|---|
| 1 |
0910736 |
SCREW, Deflector |
| 3 |
0345776 |
DÉFLECTEUR DE PROJECTIONS This part replaces 0341359. |
| 6 |
0910741 |
SCREW, Cover plate |
| 10 |
0338741 |
COVER, Mount bracket lower |
| 11 |
0341013 |
SCREW, Cover |
| 12 |
0333565 |
COVER, Water plate |
| 15 |
0435130 |
EXH. HSG. |
| 15 |
0435433 |
EXHAUST HOUSING This part replaces 0435310. |
| 15 |
0435479 |
EXHAUST HOUSING |
| 16 |
0911042 |
SCREW, Adapter to cylinder |
| 18 |
0434629 |
MOUNT, Lower |
| 20 |
0305282 |
BOLT, Bowl & suction piece This part replaces 0301218. |
| 21 |
0320961 |
JOINT, boîtier d'engrenages vers carter intérieur |
| 22 |
0349557 |
MOUNT This part replaces 0328584. |
| 23 |
0333165 |
SCREW, Cover, long |
| 24 |
0334118 |
SEAL, Exhaust housing, front |
| 25 |
0349556 |
Washer This part replaces 0329749. |
| 26 |
0338597 |
EXHAUST HOUSING, Inner, upper |
| 27 |
0346897 |
TUBE WATER, Inlet This part replaces 0321016. |
| 27 |
0346898 |
TUBE WATER, Inlet This part replaces 0321015. |
| 27 |
0346899 |
WATER TUBE This part replaces 0338673. |
| 28 |
0305145 |
GROMMET |
| 29 |
0343809 |
GASKET, Plate to adapter |
| 30 |
5001299 |
ADAPTER, Exhaust housing - V, U This part replaces 0436751. |
| 33 |
0312978 |
SCREEN, Ground plt to intmd hsg |
| 36 |
0341011 |
SCREW, Adapter to housing, outer |
| 37 |
0333879 |
GASKET, Adapter to powerhead |
| 38 |
0432017 |
RUBBER MOUNT Assembly |
| 41 |
0329743 |
STUD, Cover mount |
| 42 |
0341010 |
SCREW, Adapter to inner housing |
| 43 |
0330929 |
PLATE, Upper mount |
| 44 |
0306503 |
SCREW, Short |
| 45 |
0355037 |
SCREW, Exhaust housing to c/c This part replaces 0332128. |
| 47 |
0334113 |
GASKET, Inner exh hsg to water plate |
| 48 |
0333434 |
SEAL, Cover to adapter |
| 50 |
0330931 |
VIS, support supérieur |
| 52 |
0328742 |
NUT |
| 53 |
0341009 |
SCREW, Adapter to outer housing |
| 55 |
0320936 |
JOINT, boîtier échappement, inférieur |
| 56 |
0347251 |
WATER PLATE This part replaces 0338668. |
| 57 |
0327796 |
EXHASUT HSG,Inner lower |
| 57 |
0338664 |
BOÎTIER D'ÉCHAPPEMENT, intérieur, inférieur |
| 58 |
0329241 |
RONDELLE |
| 60 |
0912627 |
CLAMP |
| 61 |
0345586 |
GROMMET Assy This part replaces 0337782. |
| 62 |
0436726 |
INDICATOR/PLUG, Overboard water |
| 63 |
0301967 |
O RING |
| 64 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 65 |
0340383 |
LINER, Clamp |
| 66 |
0341010 |
SCREW, Adapter to inner housing |

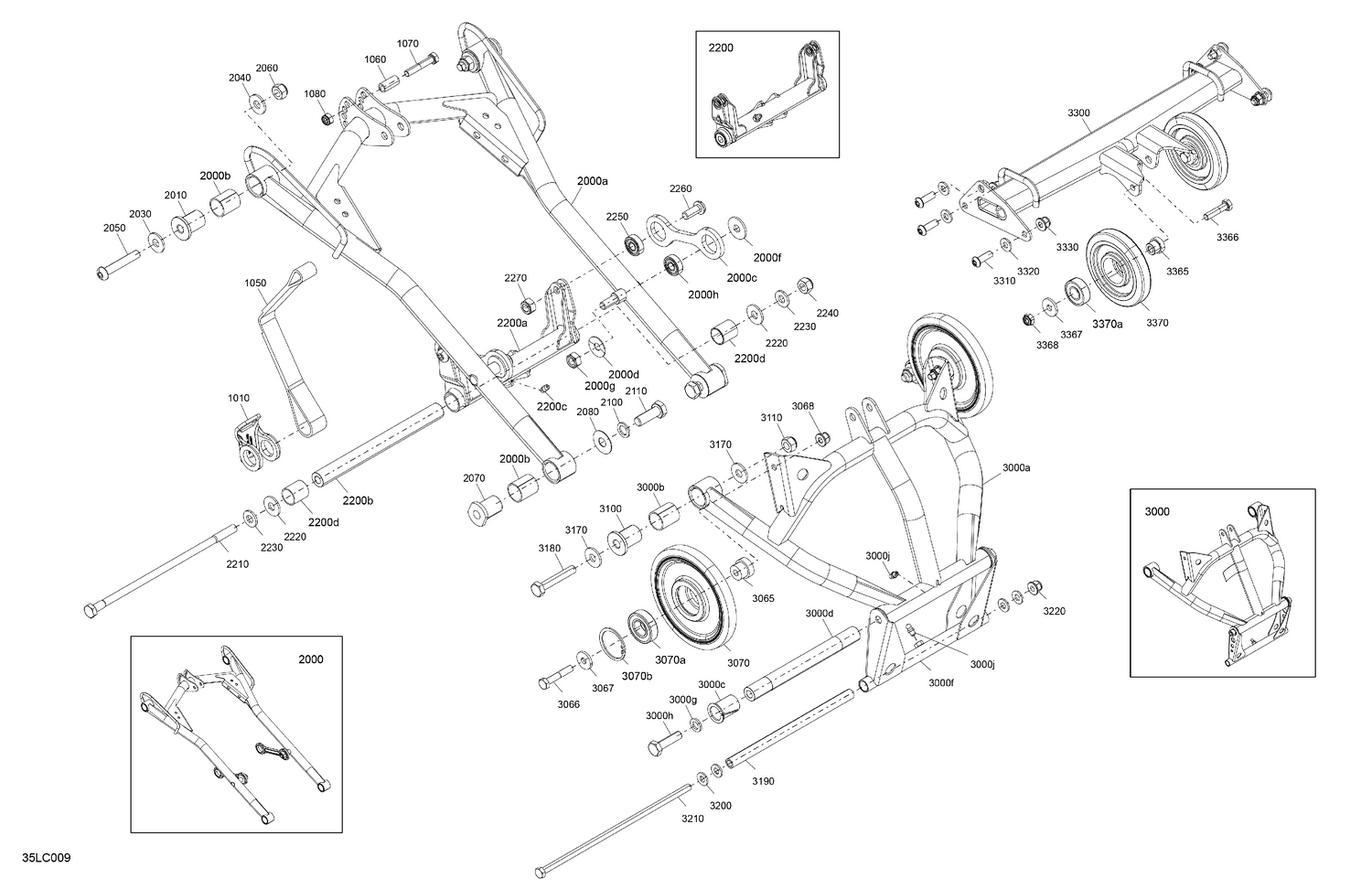

| 1010 |
503194867 |
Holder, Limiter Strap |
| 1050 |
503196920 |
Strap Stopper |
| 1060 |
605455335 |
Sleeve |
| 1070 |
207084544 |
Hex. Screw M8 X 45 |
| 1080 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 2000a |
503196155 |
Front Suspension Arm |
| 2000b |
503191554 |
Bushing |
| 2000c |
503196428 |
Link Rod |
| 2000d |
25004 |
Cup Spring |
| 2000f |
234002410 |
Flat Washer 10 mm |
| 2000g |
233401414 |
Lock Spring Nut M10 |
| 2000h |
503194696 |
Bearing |
| 2010 |
503194580 |
Upper Axle Sleeve |
| 2030 |
503191926 |
Washer |
| 2040 |
503191926 |
Washer |
| 2050 |
207006056 |
Hex. Cap Screw M10 X 60 |
| 2060 |
233601466 |
Elastic Locking Nut M10 |
| 2070 |
503194579 |
Lower Axle Sleeve |
| 2080 |
503190656 |
Washer |
| 2100 |
503192491 |
Washer |
| 2110 |
250000537 |
Hex. Cap Screw M12 X 35 |
| 2200a |
503196425 |
Front Pivot Arm |
| 2200b |
503193893 |
Lower Shaft |
| 2200c |
408200700 |
Grease Fitting |
| 2200d |
503196217 |
Glide Bearing |
| 2210 |
503193227 |
Bolt M10 X 251MM |
| 2220 |
503191926 |
Washer |
| 2230 |
250200138 |
Washer |
| 2240 |
233601466 |
Elastic Locking Nut M10 |
| 2250 |
503194696 |
Bearing |
| 2260 |
205402546 |
Socket Screw BN.HD.ISO.7380 |
| 2270 |
232500416 |
Elastic Stop Nut M10 |
| 3000a |
503196162 |
Rear Suspension Arm |
| 3000b |
503191554 |
Bushing |
| 3000c |
503191640 |
Cushion |
| 3000d |
503196223 |
Lower Shaft |
| 3000f |
503196433 |
Pivot Arm |
| 3000g |
503192496 |
Washer |
| 3000h |
205503554 |
Socket Head Screw M10 X 35 |
| 3000j |
408200700 |
Grease Fitting |
| 3065 |
605454461 |
Sleeve |
| 3066 |
207084544 |
Hex. Screw M8 X 45 |
| 3067 |
20077 |
M8 Washer |
| 3068 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 3070a |
503190396 |
Ball Bearing |
| 3070b |
415129371 |
Retaining Ring |
| 3100 |
503194580 |
Upper Axle Sleeve |
| 3110 |
233601466 |
Elastic Locking Nut M10 |
| 3170 |
503191926 |
Washer |
| 3180 |
207006056 |
Hex. Cap Screw M10 X 60 |
| 3190 |
503196358 |
Pivot Arm Axle |
| 3200 |
503192494 |
Washer |
| 3210 |
503192440 |
Bolt M8 X 248mm |
| 3220 |
233281466 |
Elastic Flang Nut M8 |
| 3300 |
503196424 |
Central Beam |
| 3310 |
250001126 |
Torx Screw Button Head M8 X 25 |
| 3320 |
503192494 |
Washer |
| 3330 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 3365 |
503193330 |
Sleeve |
| 3366 |
207083544 |
Hex. Screw M8 X 35 |
| 3367 |
20077 |
M8 Washer |
| 3368 |
232581414 |
Hex. Elastic Stop Nut M8 |
