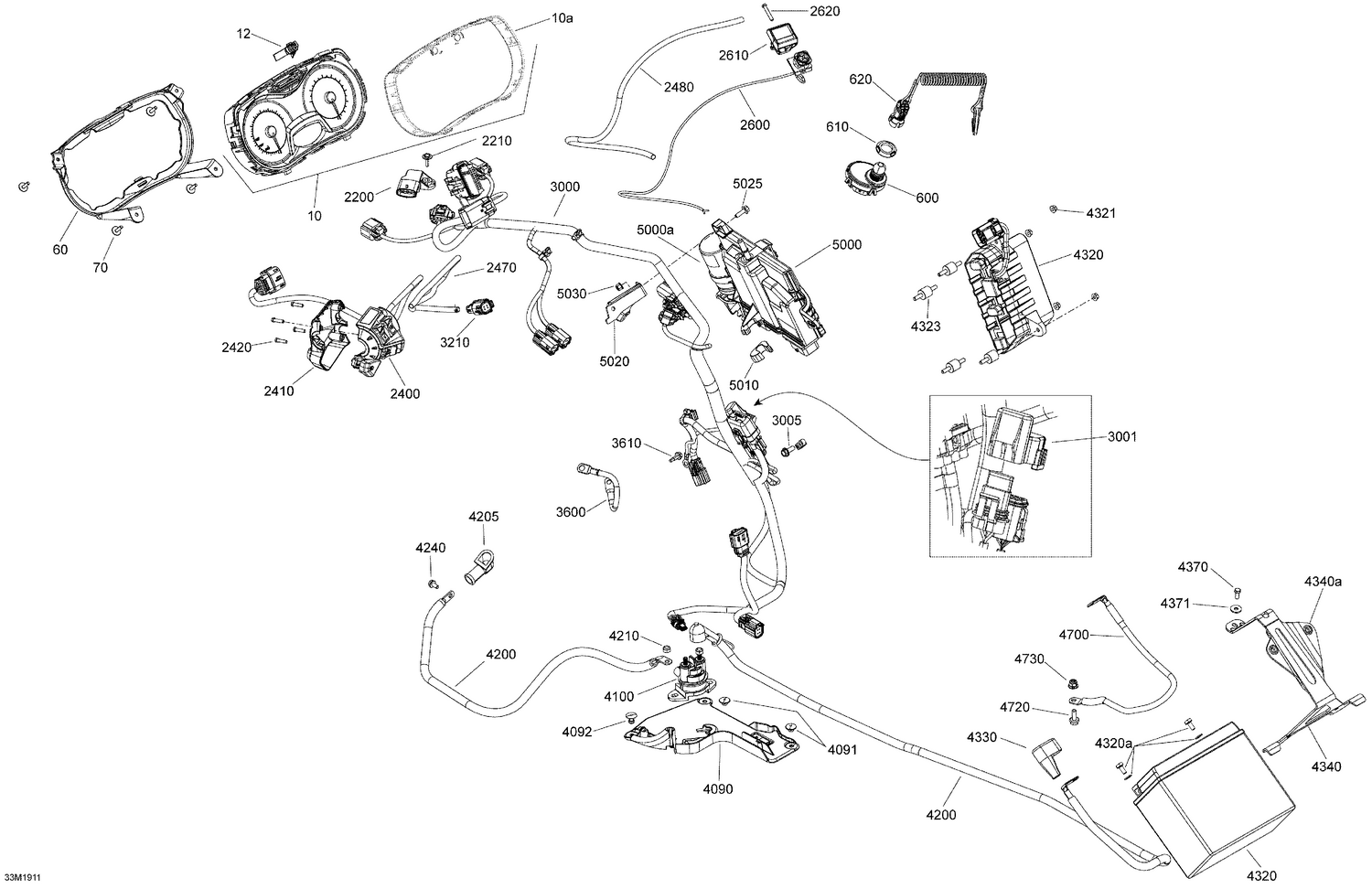

10- Electrical - 600R E-TEC
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 415129349 | Lens |
| 60 | 515177866 | Support |
| 70 | 250000725 | Screw M4 X 16 |
| 600 | 515178840 | Terminal Dess One-Wire This part replaces 515178225. |
| 610 | 278002963 | Safety Nut (DESS Switch) |
| 620 | 515178286 | Grey, RF Key Ass'y |
| 2200 | 707000995 | Pressure And Temperature Sensor |
| 2210 | 250000725 | Screw M4 X 16 |
| 2410 | 515177147 | Housing Plate |
| 2420 | 250000671 | Torx Screw |
| 2470 | 415130141 | Braided Sleeve |
| 2480 | 415130141 | Braided Sleeve |
| 2600 | 515177931 | Emergency Stop Switch |
| 2610 | 515177310 | Emergency Stop Switch Support |
| 2620 | 250000263 | Torx Screw #8-18 |
| 3001 | 515178435 | Diagnostic Cap |
| 3005 | 250001062 | Hex. Flange Screw M6 X 16 |
| 3210 | 515178177 | BLoc Femelle 4 Circuits |
| 3600 | 515178248 | Ground Wire |
| 3610 | 250000911 | Hex. Flange Screw M5 X 16 |
| 5000a | 515177272 | Capacitor |
| 5010 | 515178430 | Rubber Stopper |
| 5020 | 515178159 | Module Support |
| 5025 | 207651646 | Hex. Flange Screw M5 X 16 |
