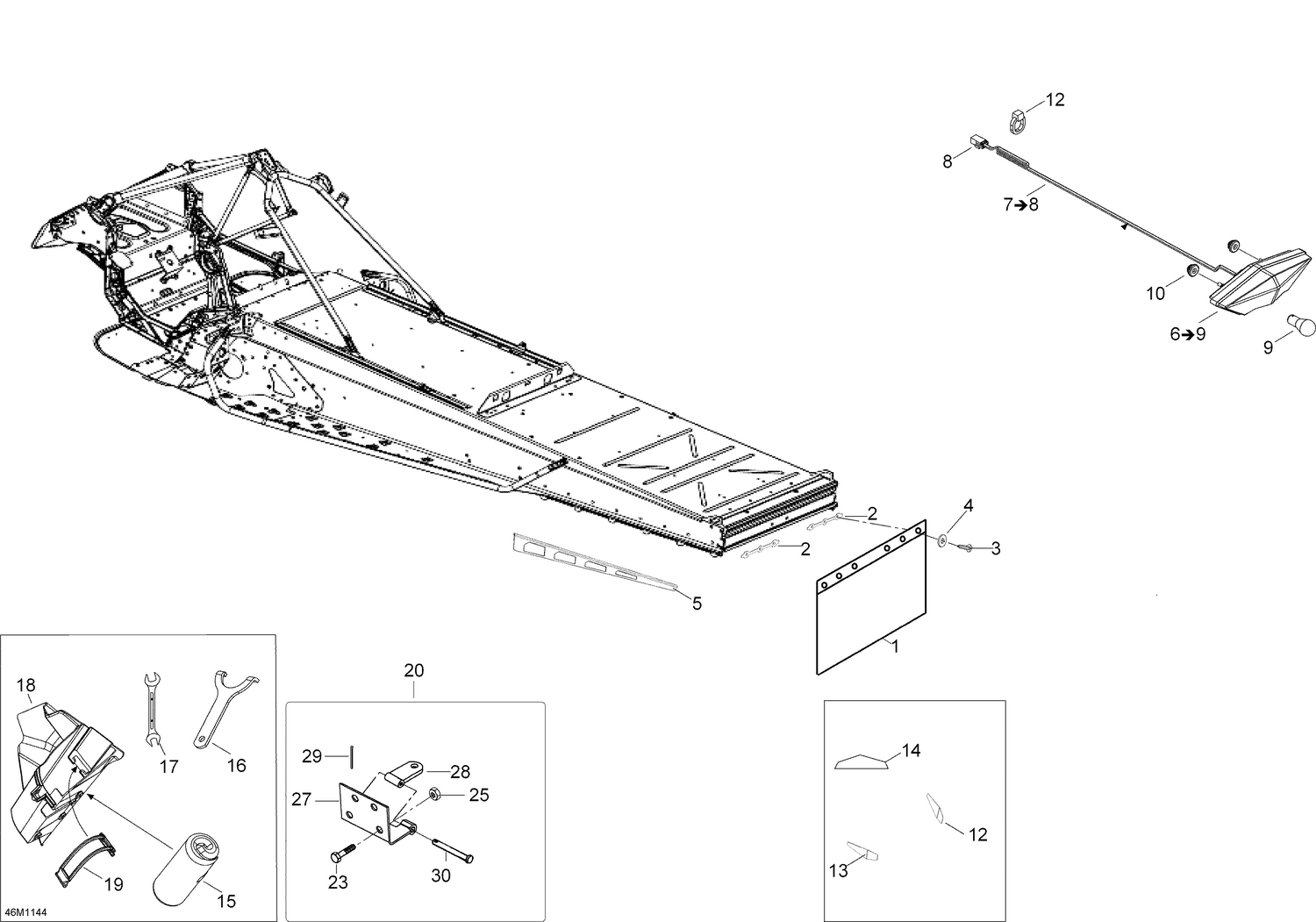

| Ref | Part Number | Description |
|---|
| 1 |
538629 |
Snow guard This part replaces M538629. |
| 2 |
520000847 |
THREADED PLATE - Call your local BRP dealership |
| 3 |
250000742 |
Torx Screw M5 X 14 This part replaces 250000145. |
| 4 |
250200025 |
Washer M5 |
| 5 |
520000693 |
RH Protector |
| 5 |
520000694 |
LH Protector |
| 6 |
520000848 |
Rear Light |
| 7 |
520000849 |
Rear Wiring Harness |
| 8 |
515175494 |
Male Housing, 3 Circuits |
| 9 |
520000758 |
Bulb |
| 10 |
705014429 |
Rubber Stopper This part replaces 705003666. |
| 12 |
520001600 |
Yellow, RH Reflector This part replaces 520000843. |
| 13 |
520001601 |
Yellow, LH Reflector This part replaces 520000844. |
| 14 |
705003412 |
Red, Lateral Reflector |
| 15 |
529000066 |
Tool Kit This part replaces 529000055. |
| 16 |
529035582 |
ADJUSTMENT WRENCH - Call your local BRP dealership |
| 17 |
Not |
Available As Spare Part - Wrench |
| 18 |
520000720 |
TOOL KIT RACK - Call your local BRP dealership |
| 19 |
520000528 |
Latch |
| 20 |
207782544 |
Carriage Bolt, M8 X 25 |
| 23 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 25 |
5344151 |
Fitting Plate This part replaces M5344151. |
| 27 |
548745 |
TONGUE WELD - Call your local BRP dealership This part replaces M548745. |
| 28 |
560309200 |
PIN-RETAINER - Call your local BRP dealership |
| 29 |
41031 |
Cotter Pin This part replaces M41031. |
