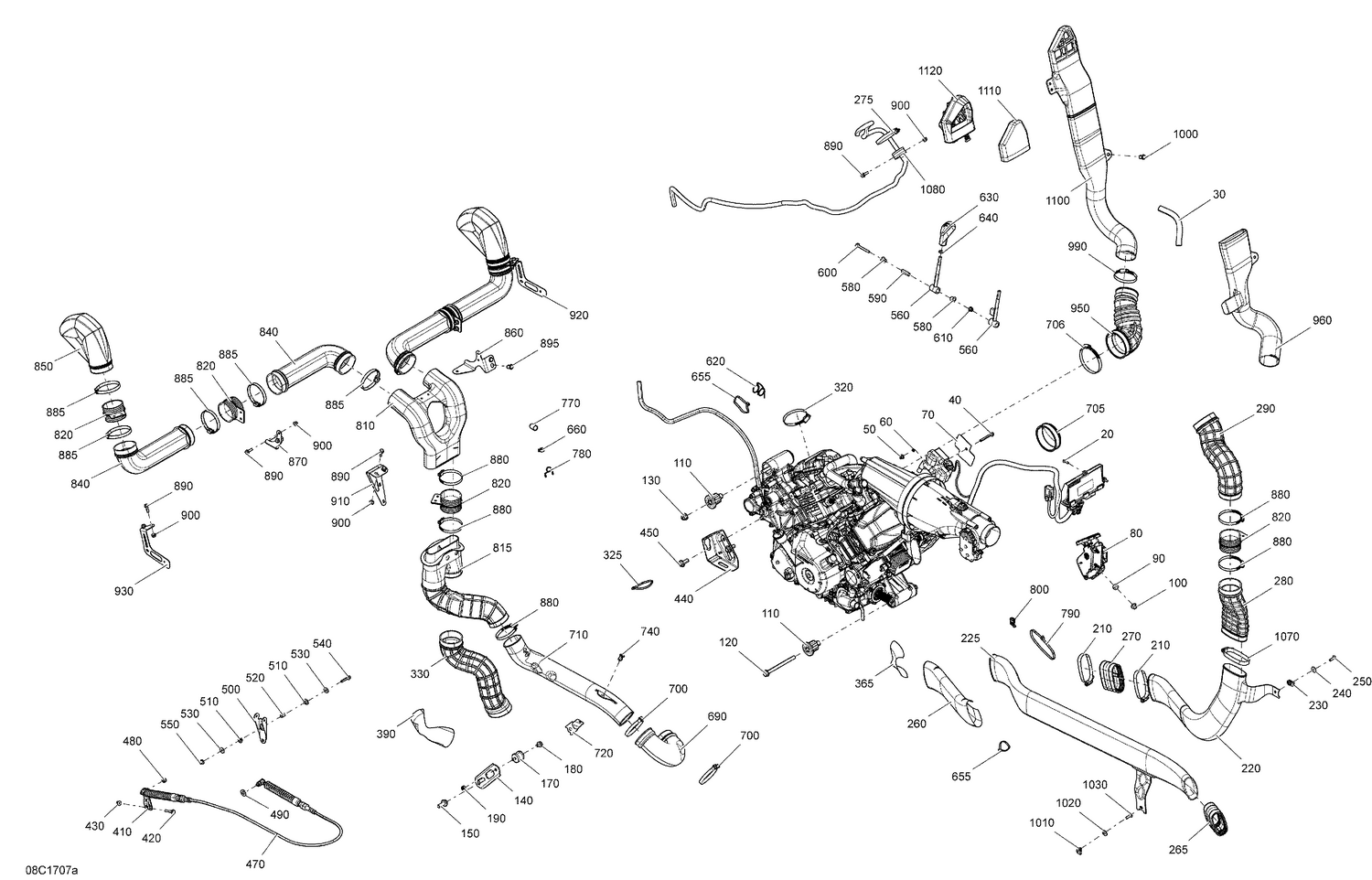

01- Engine - Package XMR
Parts (96)
| Ref | Part Number | Description |
|---|---|---|
| 20 | 250000720 | Torx Screw K50 X 16 |
| 30 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 40 | 207665044 | Hex. Flange Screw M6 X 50 |
| 50 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 60 | 234461608 | External Serrated Lock Washer 6 mm |
| 70 | 710000073 | Insulator Pad |
| 80 | 707001166 | Accelerator Pedal |
| 90 | 707000848 | Bushing |
| 100 | 233081416 | Hex. Flange Nut M8 |
| 110 | 707001170 | Anti Vibration Buffer |
| 120 | 230602546 | Hex. Flange Screw M10 X 125 |
| 130 | 233201436 | Hex. Flange Elastic Nut M10 |
| 140 | 707000707 | Upper Engine Bracket |
| 150 | 207602544 | Hex. Flange Screw M10 X 25 |
| 170 | 707000949 | Rubber Isolator |
| 180 | 207581046 | Flange Screw M8 x 10, Scotch Grip |
| 190 | 232581414 | Hex. Elastic Stop Nut M8 |
| 210 | 293650091 | Norma Clamp |
| 220 | 707001339 | Air Inlet |
| 220 | 707001983 | AIR INLET - Call your local BRP dealership |
| 225 | 707001228 | Air Inlet |
| 230 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 240 | 250200082 | Flat Washer |
| 250 | 250000722 | Torx Screw M6 X 20 |
| 260 | 707001346 | Reflector |
| 265 | 707002585 | Flexibale Adaptor This part replaces 707001467. |
| 270 | 707002585 | Flexibale Adaptor This part replaces 707001467. |
| 275 | 293650091 | Norma Clamp |
| 280 | 707001377 | AIR INLET - Call your local BRP dealership |
| 290 | 707001378 | Air Inlet |
| 320 | 293650118 | Norma Gear Clamp |
| 325 | 293750008 | Tie Wrap 368 mm |
| 330 | 707001380 | CVT Outlet |
| 365 | 707000991 | Reflective Sheet |
| 390 | 707000991 | Reflective Sheet |
| 410 | 707000911 | Lever |
| 420 | 207663544 | Hex. Flange Screw M6 X 35 |
| 430 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 440 | 707000919 | Cable Support |
| 450 | 207602544 | Hex. Flange Screw M10 X 25 |
| 470 | 707001283 | Shifting Cable |
| 480 | 232581414 | Hex. Elastic Stop Nut M8 |
| 490 | 234001410 | Flat Washer 10 mm |
| 500 | 707000828 | Lower Lever Arm |
| 510 | 707000847 | Flanged Bushing |
| 520 | 707000801 | Bushing |
| 530 | 234062410 | Flat Washer 6 mm |
| 540 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 550 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 560 | 707000711 | Upper Lever Arm |
| 580 | 707000869 | Flanged Bushing |
| 590 | 707001376 | Bushing |
| 600 | 207665044 | Hex. Flange Screw M6 X 50 |
| 610 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 620 | 707000750 | Lever Arm Spring |
| 630 | 707000284 | Lever Handle |
| 640 | 232180491 | Hex. Jam Nut M8 |
| 655 | 293750008 | Tie Wrap 368 mm |
| 660 | 414415200 | Spring Clamp |
| 690 | 707001866 | CVT OUTLET - Call your local BRP dealership |
| 700 | 293650118 | Norma Gear Clamp |
| 705 | 707001911 | PLUG - Call your local BRP dealership |
| 706 | 514052924 | Norma Clamp |
| 710 | 707001381 | Front CVT Outlet |
| 720 | 707001231 | Front Support |
| 740 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 770 | 707001185 | Plug |
| 780 | 707800506 | Retainer Clip |
| 790 | 293750008 | Tie Wrap 368 mm |
| 800 | 710002899 | Clip Tie-Rap |
| 810 | 707001532 | CVT Outlet |
| 815 | 707001855 | Front CVT Outlet |
| 820 | 707001383 | Adaptor |
| 840 | 707001385 | CVT Outlet |
| 850 | 707001386 | Rear CVT Outlet |
| 860 | 707001483 | Support |
| 870 | 707001388 | Right Support |
| 880 | 293650091 | Norma Clamp |
| 885 | 293750065 | Tie Rap 367mm |
| 890 | 207662054 | Hex. Flange Screw M6 X 20 |
| 895 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 900 | 233261494 | Hex. Flange Elastic Nut M6 |
| 910 | 707001389 | Central Support |
| 920 | 707001390 | LEFT SUPPORT - Call your local BRP dealership |
| 930 | 707001391 | Right Support |
| 950 | 707001910 | Air Inlet |
| 960 | Not | Available As Spare Part - Air Inlet |
| 990 | 293650091 | Norma Clamp |
| 1000 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 1010 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 1020 | 250200082 | Flat Washer |
| 1030 | 250000722 | Torx Screw M6 X 20 |
| 1070 | 293650091 | Norma Clamp |
| 1080 | 293650218 | Hose Retainer |
| 1100 | 707002145 | AIR INLET - Call your local BRP dealership |
| 1110 | 707001482 | CVT Filter |
