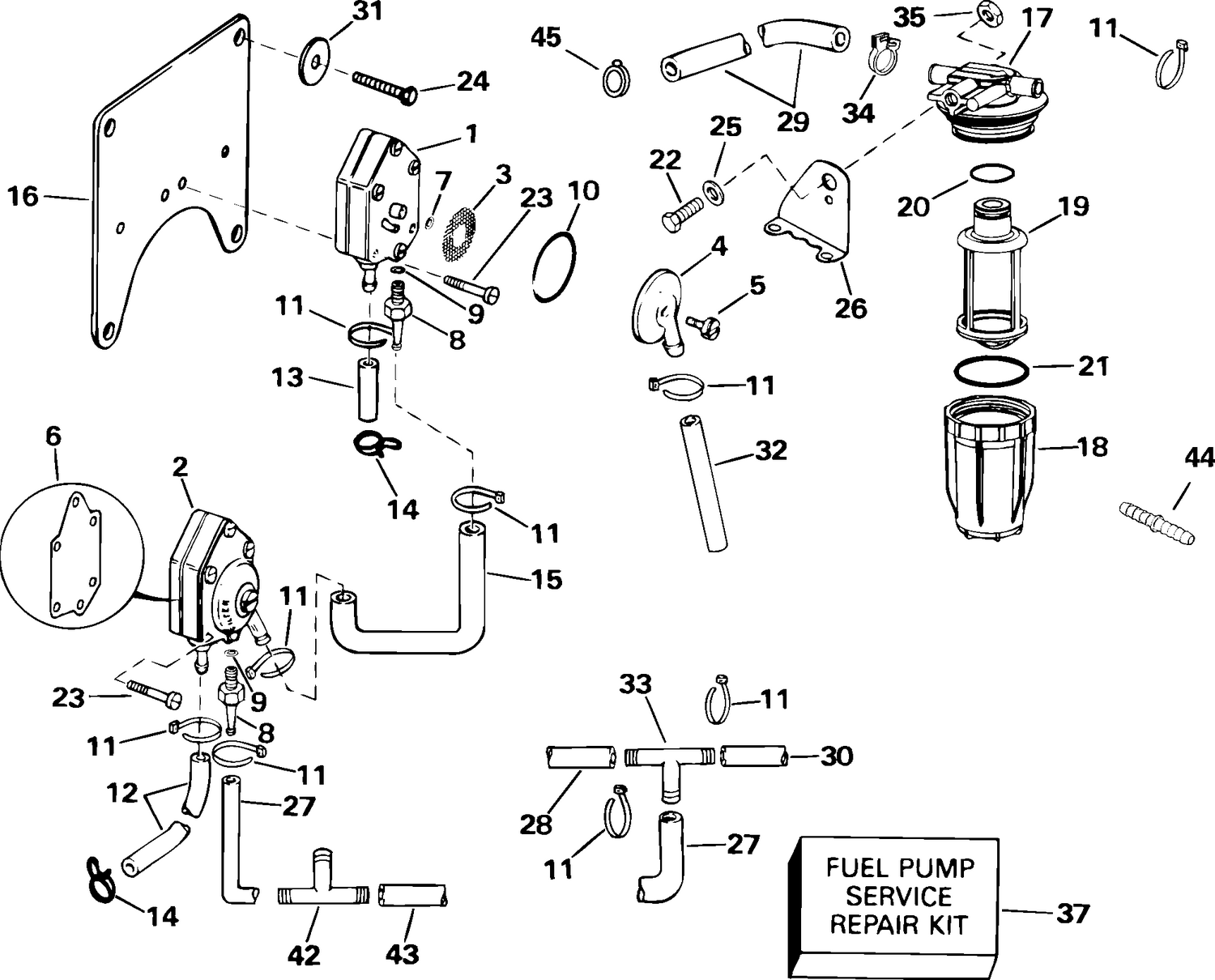

| Ref | Part Number | Description |
|---|
| 1 |
0438559 |
FUEL PUMP ASSY., Lower |
| 2 |
0438557 |
FUEL PUMP Assy |
| 11 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 13 |
0342866 |
HOSE, Port pump to crankcase |
| 14 |
0339277 |
CLAMP, Exh back pressure hose |
| 15 |
0334131 |
FLEXIBLE, impulsions |
| 16 |
0344527 |
BRACKET, Pump mounting |
| 23 |
0330184 |
VIS, montage pompe |
| 24 |
0325402 |
SCREW, Bracket |
| 25 |
0307708 |
RONDELLE GROWER |
| 26 |
0343025 |
BRACKET, Filter to block |
| 27 |
0334131 |
FLEXIBLE, impulsions |
| 28 |
0339606 |
HOSE, bracket to manifold- Starboard |
| 29 |
0349050 |
HOSE, Connector to filter |
| 30 |
0339607 |
FLEXIBLE, Support to port manifold |
| 31 |
0336316 |
WASHER, screw, bracket to hood |
| 32 |
0333395 |
HOSE, Connector to filter |
| 33 |
0319741 |
TEE |
| 37 |
0438616 |
FUEL PUMP REPAIR KIT |
| 42 |
0329603 |
TEE, Fuel hose |
| 43 |
0331526 |
HOSE, Manifold to #1 carb. |
| 44 |
0348841 |
CONNECTOR, Fuel hose |
