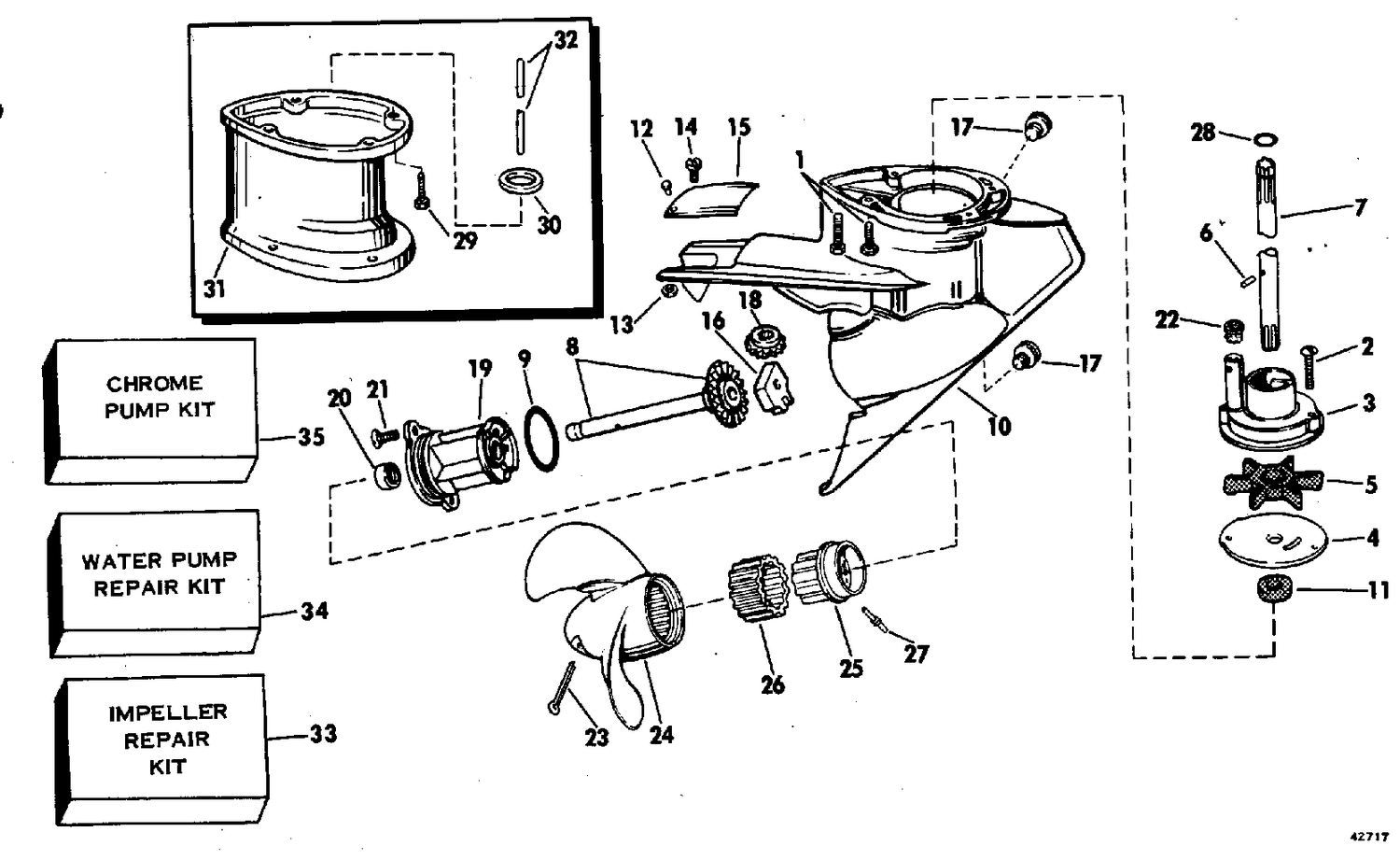

| Ref | Part Number | Description |
|---|
| 1 |
0308707 |
SCREW |
| 1 |
0909533 |
SCREW, Pressure relief valve cover This part replaces 0309646. |
| 2 |
0302963 |
SCREW |
| 3 |
0310344 |
HOUSING, Impeller |
| 4 |
0203132 |
PLATE, Pump |
| 5 |
0277181 |
IMPELLER & PIN ASSY |
| 7 |
0205350 |
DRIVESHAFT |
| 7 |
0310345 |
DRIVESHAFT, Standard |
| 8 |
0386179 |
PROPELLER SHAFT ASSY |
| 10 |
0382787 |
GEARCASE & EXH. COV. ASSY |
| 18 |
0203648 |
PINION, Driveshaft |
| 19 |
0384714 |
BEARING HOUSING ASSY |
| 22 |
0317372 |
GROMMET, Wate tube, lower |
| 23 |
0313693 |
COTTER PIN |
| 24 |
0319004 |
PROPELLER, 6-1/4 inch x 6 inch |
| 25 |
0316559 |
CLUTCH HUB, Prop |
| 26 |
0315471 |
BUSHING,Propeller clutch |
| 27 |
0333513 |
DRIVE IN, Propeller This part replaces 0316558. |
| 29 |
0909533 |
SCREW, Pressure relief valve cover This part replaces 0309646. |
| 30 |
0310744 |
PILOT RING 5 INCH LONGER PARTS |
| 31 |
0310355 |
EXRENSION,Gearcase 5" LONGER PARTS |
| 32 |
0323677 |
WATER TUBE 5 INCH LONGER PARTS |
| 33 |
0379763 |
IMPELLER REPAIR KIT |
| 34 |
0379770 |
WATER PUMP REPAIR KIT |
| 0315338 |
0315338 |
GASKET, Exh housing |
| 0323286 |
0323286 |
GROMMET, Water tube |
| 0323443 |
0323936 |
GASKET, Housing to cover This part replaces 0323443. |
| 0386493 |
0386493 |
GEARCASE ASSEMBLY |
| 0389221 |
0389221 |
EXTENSION KIT ASSY -5 INCH 5" LONGER PARTS |
