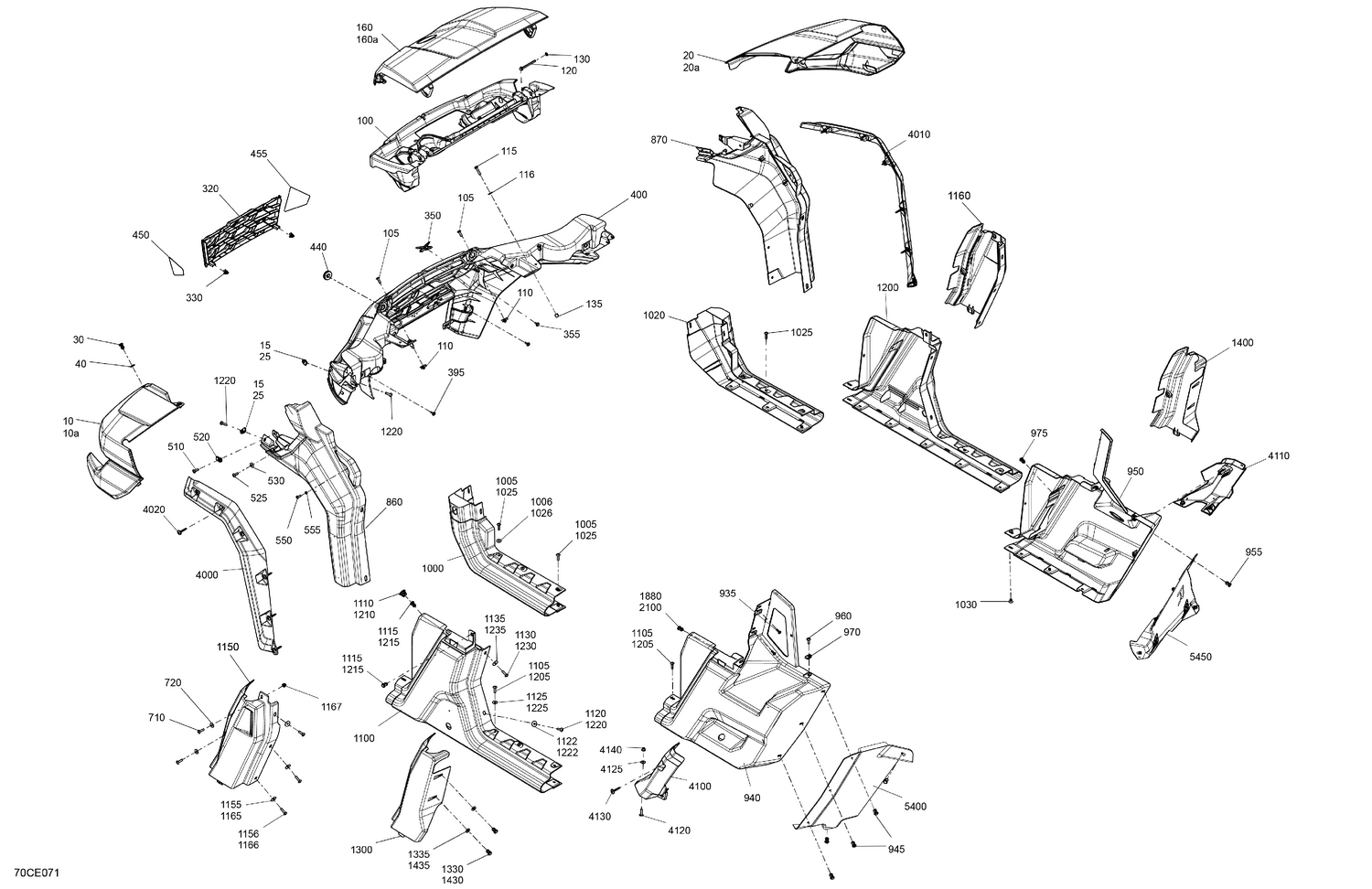

07- Body - System
Parts (92)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 705016320 | LH Front Fender |
| 15 | 250100198 | Panel Nut M6 X 1.0 |
| 20a | 705016321 | RH Front Fender |
| 25 | 250100198 | Panel Nut M6 X 1.0 |
| 30 | 293150230 | Tuflok Plastic Rivet |
| 40 | 503192494 | Washer |
| 100 | 705013766 | Multi Purpose Support |
| 105 | 250000722 | Torx Screw M6 X 20 |
| 110 | 250100198 | Panel Nut M6 X 1.0 |
| 115 | 210263050 | Hex. Flange Screw M6 X 30 |
| 116 | 234062670 | Stainless Steel Flat Washer |
| 120 | 207667554 | Hex. Flange Screw M6 X 75 |
| 130 | 732610072 | Push Nut |
| 135 | 293900125 | Bushing |
| 160a | 705016319 | Deep Black, Front Hood |
| 320 | 705013590 | Grille |
| 330 | 517306478 | Clip |
| 350 | 705017646 | Emblem X |
| 355 | 250000725 | Screw M4 X 16 |
| 395 | 250000725 | Screw M4 X 16 |
| 400 | 705013591 | Deep Black, Front Fascia |
| 440 | 705010718 | Grommet |
| 450 | 704905072 | LH Front Reflector |
| 455 | 704905073 | RH Front Reflector |
| 510 | 250000722 | Torx Screw M6 X 20 |
| 520 | 250100198 | Panel Nut M6 X 1.0 |
| 525 | 250000722 | Torx Screw M6 X 20 |
| 530 | 234062670 | Stainless Steel Flat Washer |
| 550 | 250000720 | Torx Screw K50 X 16 |
| 555 | 234051670 | Flat Washer M5 |
| 710 | 250000807 | Torx Truss Screw M6 X 25 |
| 720 | 234062670 | Stainless Steel Flat Washer |
| 860 | 705008152 | LH Front Lateral Panel |
| 870 | 705008153 | RH Front Lateral Panel |
| 935 | 250000720 | Torx Screw K50 X 16 |
| 940 | 705013658 | Deep Black, LH Rear Body Panel |
| 945 | 293150230 | Tuflok Plastic Rivet |
| 950 | 705013659 | Deep Black, RH Rear Body Panel |
| 955 | 293150230 | Tuflok Plastic Rivet |
| 960 | 250000722 | Torx Screw M6 X 20 |
| 970 | 250100198 | Panel Nut M6 X 1.0 |
| 975 | 293150230 | Tuflok Plastic Rivet |
| 1000 | 705019037 | Deep Black, LH Central Panel |
| 1005 | 250000807 | Torx Truss Screw M6 X 25 |
| 1006 | 234062670 | Stainless Steel Flat Washer |
| 1020 | 705019038 | Deep Black, RH Central Panel |
| 1025 | 250000807 | Torx Truss Screw M6 X 25 |
| 1026 | 234062670 | Stainless Steel Flat Washer |
| 1030 | 293150308 | Black, Ornit Rivet 3/16 X ,675 This part replaces 293150308. |
| 1100 | 705013660 | LH Middle Side Panel |
| 1105 | 250000807 | Torx Truss Screw M6 X 25 |
| 1110 | 707900133 | Insert |
| 1115 | 293150230 | Tuflok Plastic Rivet |
| 1120 | 250000807 | Torx Truss Screw M6 X 25 |
| 1122 | 250200162 | Flat Washer M6.6 X 22 |
| 1125 | 234062670 | Stainless Steel Flat Washer |
| 1130 | 250000807 | Torx Truss Screw M6 X 25 |
| 1135 | 250200162 | Flat Washer M6.6 X 22 |
| 1150 | 705010601 | LH Middle Cage Cover |
| 1155 | 250200162 | Flat Washer M6.6 X 22 |
| 1156 | 250000807 | Torx Truss Screw M6 X 25 |
| 1160 | 705010602 | RH Middle Cage Cover |
| 1165 | 250200162 | Flat Washer M6.6 X 22 |
| 1166 | 250000807 | Torx Truss Screw M6 X 25 |
| 1167 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 1200 | 705013661 | RH Middle Side Panel |
| 1205 | 250000807 | Torx Truss Screw M6 X 25 |
| 1210 | 707900133 | Insert |
| 1215 | 293150230 | Tuflok Plastic Rivet |
| 1220 | 250000807 | Torx Truss Screw M6 X 25 |
| 1222 | 250200162 | Flat Washer M6.6 X 22 |
| 1225 | 234062670 | Stainless Steel Flat Washer |
| 1230 | 250000807 | Torx Truss Screw M6 X 25 |
| 1235 | 250200162 | Flat Washer M6.6 X 22 |
| 1300 | 715003564 | LH Rear Cage Cover Kit |
| 1330 | 293150230 | Tuflok Plastic Rivet |
| 1335 | 503192494 | Washer |
| 1400 | 715003565 | RH Rear Cage Cover Kit |
| 1430 | 293150230 | Tuflok Plastic Rivet |
| 1435 | 503192494 | Washer |
| 1880 | 293150230 | Tuflok Plastic Rivet |
| 2100 | 293150230 | Tuflok Plastic Rivet |
| 4000 | 705011518 | LH Front Fender Flare |
| 4010 | 705011519 | RH Front Fender Flare |
| 4020 | 250000840 | Torx Truss Screw Head PT.K50 X 40 |
| 4100 | 705011522 | LH Central Fender Flare |
| 4110 | 705011523 | RH Center Fender Flare |
| 4120 | 250000758 | Torx Screw M6 X 25 |
| 4125 | 234062670 | Stainless Steel Flat Washer |
| 4130 | 250000840 | Torx Truss Screw Head PT.K50 X 40 |
| 4140 | 233261494 | Hex. Flange Elastic Nut M6 |
| 5400 | 705016336 | LH Rear Deflector |
