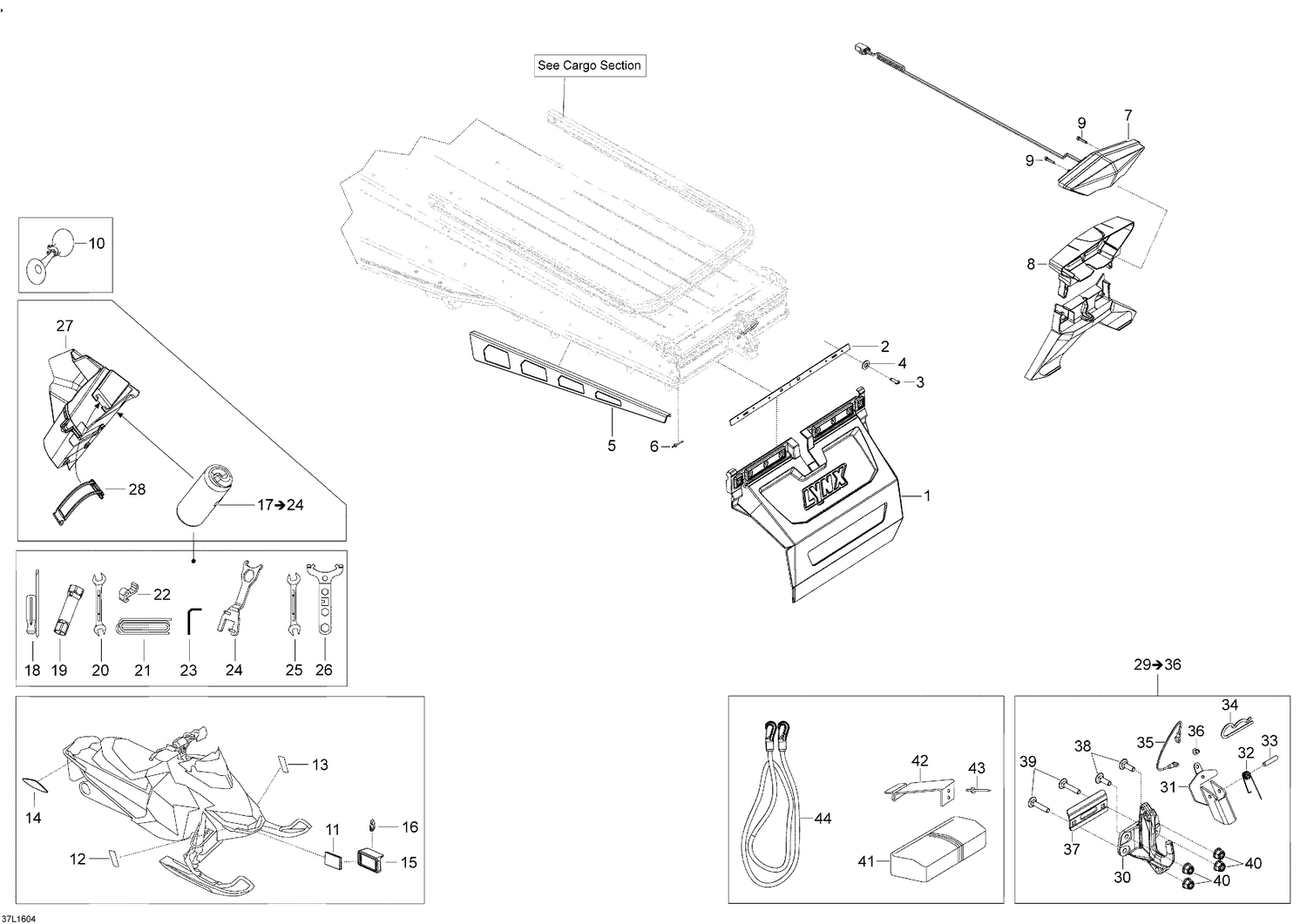

09- Utilities
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 520001408 | Snow Guard |
| 2 | 520001022 | Fastening Plate |
| 3 | 250000676 | Forming Screw M5 x 16 |
| 4 | 250200025 | Washer M5 |
| 5 | 520000693 | RH Protector |
| 5 | 520000694 | LH Protector |
| 6 | 293150163 | Rivet Hucklok |
| 7 | 520000692 | Rear Light |
| 8 | 511000763 | Rear Light Support |
| 9 | 40611 | Screw K40 x 10 |
| 10 | 549011291 | Horn |
| 11 | 21118 | Bright Reflector |
| 12 | 520001600 | Yellow RH Reflector |
| 13 | 520001601 | Yellow LH Reflector |
| 14 | 705002423 | Amber Reflector |
| 15 | 520000871 | Reflector Support |
| 16 | 27120 | TIE RAP - Call your local BRP dealership |
| 18 | 529000004 | SCREWDRIVER - Call your local BRP dealership |
| 19 | 529000046 | Socket Wrench (16/21mm) |
| 20 | 529000002 | FORK WRENCH, 10/13 MM - Call your local BRP dealership |
| 21 | 412500200 | Starter Rope |
| 22 | 529000060 | Starter Grip |
| 23 | 520001142 | Key |
| 24 | 520001499 | Wrench |
| 25 | 34017 | Wrench (17/19mm) |
| 26 | 520001442 | Wrench |
| 27 | 520000720 | TOOL KIT RACK - Call your local BRP dealership |
| 28 | 520000528 | Latch |
| 30 | Not | Available As Spare Part - Hook |
| 31 | Not | Available As Spare Part - Locking Plate |
| 32 | Not | Available As Spare Part - Spring |
| 33 | 41012 | Spring Pin 6 x 30 |
| 34 | 41029 | Cotter Spring |
| 35 | Not | Available As Spare Part - Retainer Cable |
| 36 | 390909100 | Avex Rivet |
| 37 | 520000727 | Plate |
| 38 | 207782544 | Screw M8 x 25 |
| 39 | 207784044 | Screw M8 x 40 |
| 40 | 233281414 | Hex. Flange Elastic Nut M8 |
| 41 | 520900004 | Tool Box Ass'y |
| 42 | 5346728 | Support Spring |
| 43 | 36108 | Rivet |
