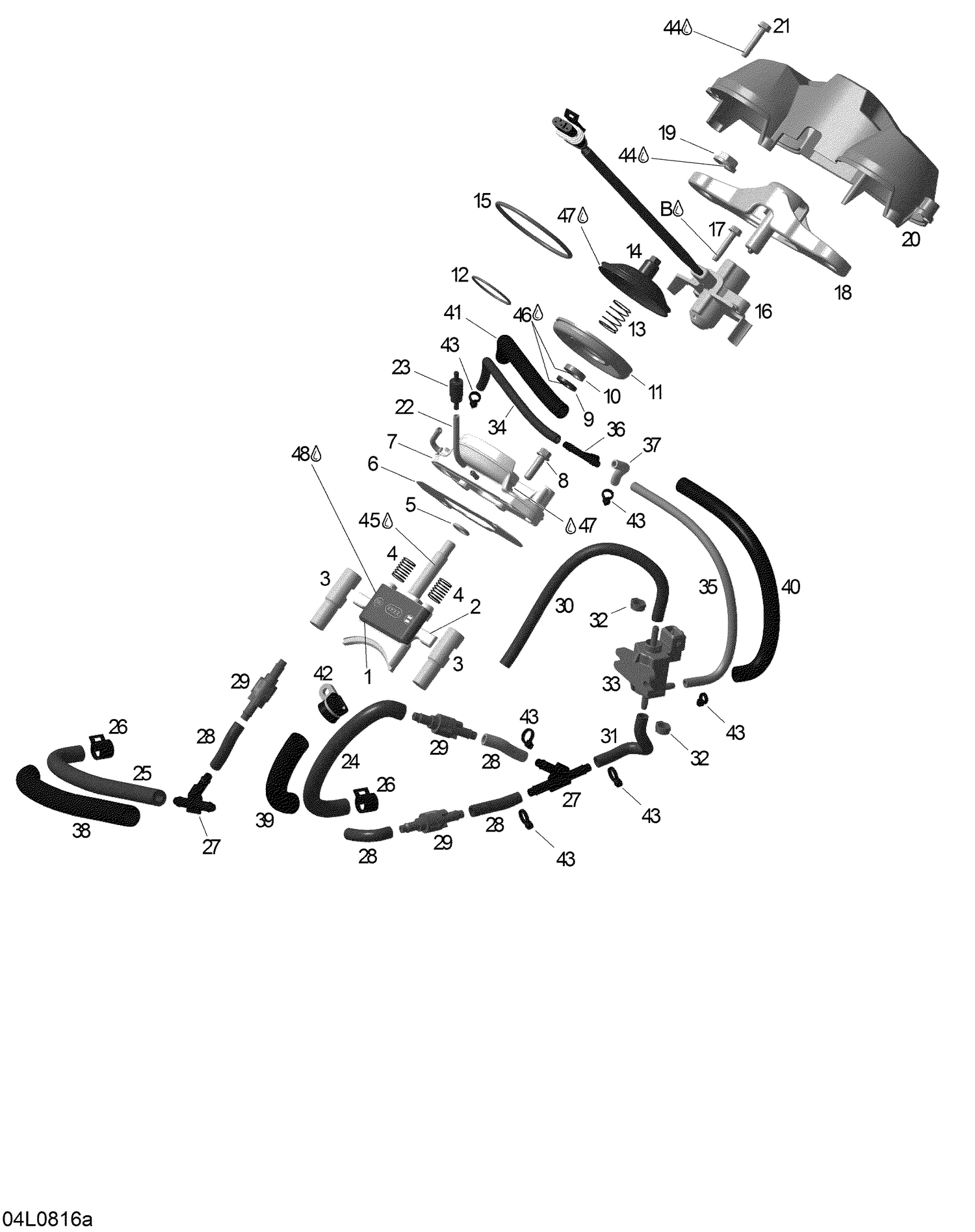

| Ref | Part Number | Description |
|---|
| 1 |
420854980 |
Ehaust valva upper |
| 2 |
420854972 |
EXHAUST VALVE, LOWER - Call your local BRP dealership |
| 3 |
420854990 |
Exhaust valve |
| 4 |
420238558 |
Spring This part replaces 420238556. |
| 5 |
420931765 |
O-ring |
| 6 |
420430030 |
Gasket |
| 7 |
420854889 |
VALVE HOUSING - Call your local BRP dealership |
| 8 |
420440207 |
Flanged Torx Screw M6X20-SW8/T30 This part replaces 420440202. |
| 9 |
420431380 |
Gasket ring |
| 10 |
420950732 |
Oil Seal This part replaces 420950730. |
| 11 |
420260725 |
Bellows This part replaces 420260724. |
| 12 |
420939286 |
Hose Spring This part replaces 420939285. |
| 13 |
420238557 |
Spring |
| 14 |
420854442 |
Exhaust valve piston |
| 15 |
420838255 |
Hose spring |
| 16 |
420854089 |
Position Sensor With Valve Bar This part replaces 420665971. |
| 17 |
420241271 |
Hex. Taptite Screw M5 X 25 This part replaces 420241270. |
| 18 |
420854089 |
Position Sensor With Valve Bar This part replaces 420854086. |
| 19 |
420942190 |
Nut M12 X 1.5 |
| 20 |
420910821 |
Rave Cover This part replaces 420910820. |
| 21 |
420241271 |
Hex. Taptite Screw M5 X 25 This part replaces 420241270. |
| 22 |
414413800 |
Oil line 50 mm |
| 23 |
420956515 |
Check Valve Ass’y |
| 24 |
420460782 |
MOLDED HOSE - Call your local BRP dealership |
| 25 |
420460782 |
MOLDED HOSE - Call your local BRP dealership |
| 26 |
293650214 |
Spring Clamp This part replaces 420853510. |
| 27 |
293710059 |
T-Fitting This part replaces 420460635. |
| 28 |
420460851 |
HIGH PRESSURE AIR HOSE, 40 MM - Call your local BRP dealership |
| 29 |
420660543 |
Check valve |
| 30 |
420460854 |
Pressure line, 205 mm |
| 31 |
420460852 |
HIGH PRESSURE AIR HOSE, 80 MM - Call your local BRP dealership |
| 32 |
420853658 |
Gear Clamp This part replaces 420853643. |
| 33 |
270600005 |
Solenoid valve |
| 34 |
420660571 |
Pressure line, 180mm |
| 35 |
420660575 |
HIGH PRESSURE AIR HOSE, 220 MM - Call your local BRP dealership |
| 36 |
293710068 |
T-fitting |
| 37 |
420660572 |
HIGH PRESSURE AIR HOSE, 50 MM - Call your local BRP dealership |
| 38 |
420460962 |
Tube NW 13 190mm |
| 39 |
420460961 |
Tube NW 13 165mm |
| 40 |
420460941 |
Tube NW 8,5 200mm |
| 41 |
415079900 |
Tube NW 8,5 150mm |
| 42 |
420851250 |
Clamp |
| 43 |
420866720 |
Tie Rap This part replaces 420866718. |
| 44 |
293750001 |
Tie-Rap 94 mm |
| 45 |
Not |
Available As Spare Part - Molukote G-N slide paste |
| 46 |
293550033 |
SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership |
| 47 |
Not |
Available As Spare Part - Sealing compount dreibond 2290 |
