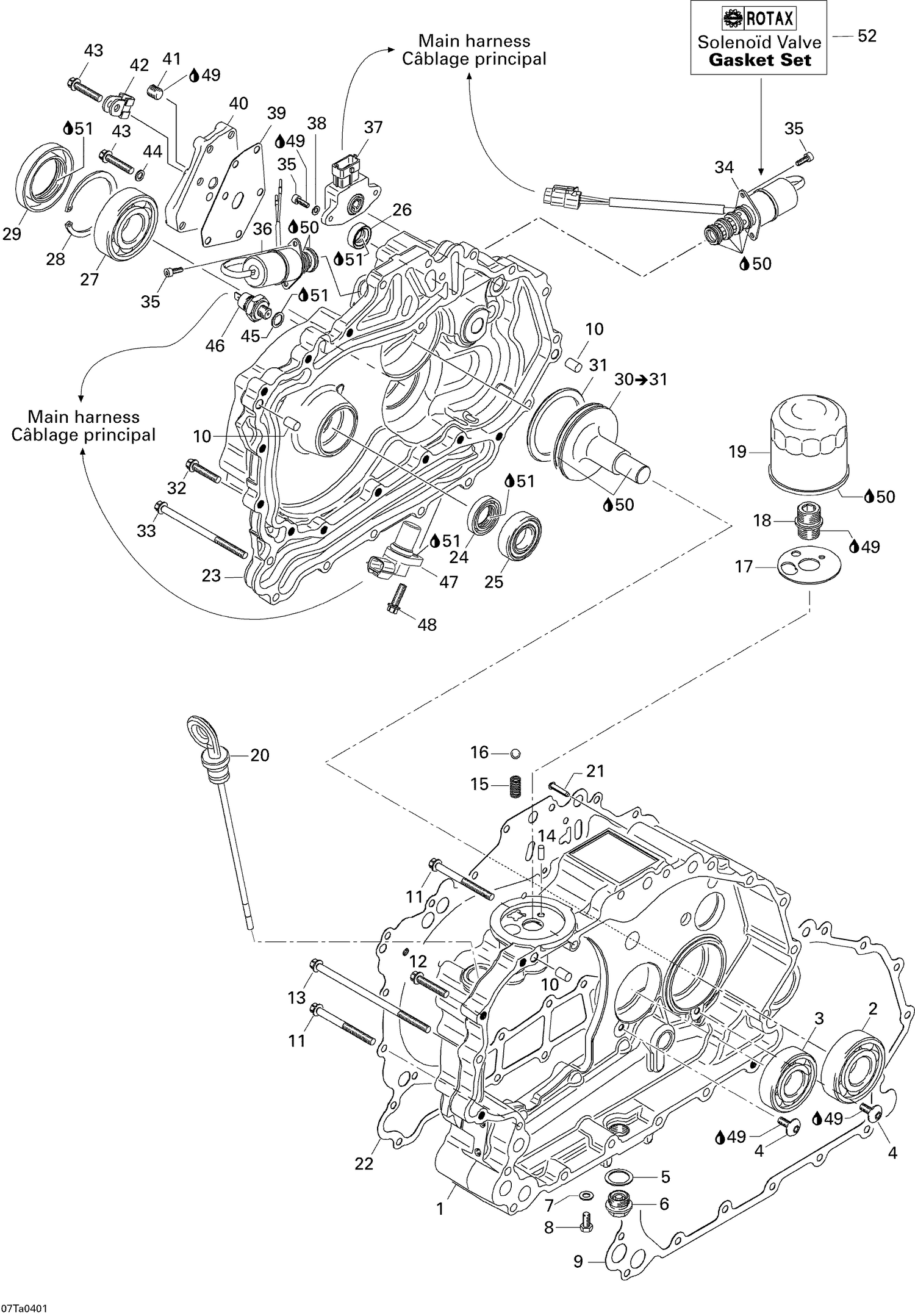

| Ref | Part Number | Description |
|---|
| 1 |
420211921 |
Clutch Housing |
| 2 |
420932822 |
Ball Bearing This part replaces 420932825. |
| 3 |
420632200 |
BALL BEARING 63/22 - Call your local BRP dealership |
| 4 |
420241531 |
SCREW M6 X 13 - Call your local BRP dealership |
| 5 |
420552280 |
Crush Washer |
| 6 |
420840278 |
Drain Plug M18 X 1.5 This part replaces 420840277. |
| 7 |
404146600 |
Sealing Washer |
| 8 |
420241751 |
Hex. Flange Screw M6 X 16 |
| 9 |
420650582 |
GASKET, CLUTCH HOUSING - Call your local BRP dealership |
| 10 |
420632010 |
Center Pin 8 X 12 |
| 11 |
420940576 |
Hex. Flange Screw M6 X 70 |
| 12 |
420941126 |
HEX. FLANGED SCREW M6 X 35 - Call your local BRP dealership |
| 13 |
420640371 |
Hex. Flange Screw M6 X 130 |
| 14 |
420232710 |
NEEDLE PIN - Call your local BRP dealership |
| 15 |
420238050 |
Spring |
| 16 |
420232370 |
BALL - Call your local BRP dealership |
| 17 |
420627370 |
OIL FILTER WASHER - Call your local BRP dealership |
| 18 |
420924420 |
Oil Filter Nipple |
| 19 |
420256623 |
FILTER OIL - Call your local BRP dealership This part replaces 420256620. |
| 20 |
420256610 |
OIL DIPSTICK - Call your local BRP dealership |
| 21 |
420229170 |
Groove Pin M4 X 20 |
| 22 |
420650592 |
GASKET, CLUTCH COVER - Call your local BRP dealership |
| 23 |
420211811 |
Clutch Cover |
| 24 |
420930392 |
Oil Seal This part replaces 420930390. |
| 25 |
420232190 |
Ball Bearing 6304 |
| 26 |
420250455 |
Oil Seal |
| 27 |
420932822 |
Ball Bearing This part replaces 420932825. |
| 28 |
420445070 |
RETAINING RING - Call your local BRP dealership |
| 29 |
420650682 |
Oil Seal This part replaces 420650680. |
| 31 |
420650550 |
K-GROOVED RING - Call your local BRP dealership |
| 32 |
420241941 |
HEX. FLANGED SCREW M6 X 30 - Call your local BRP dealership |
| 33 |
420640361 |
Hex. Flange Screw M6 X 100 |
| 34 |
420256550 |
Solenoïd Valve |
| 35 |
420440291 |
SOCKET HEAD SCREW M4 X 12 - Call your local BRP dealership |
| 36 |
420256560 |
Pressure Valve |
| 37 |
420265600 |
POTENTIOMETER, SUB TRANSMISSION - Call your local BRP dealership |
| 38 |
420244072 |
Flat Washer 4 This part replaces 420244073. |
| 39 |
420650620 |
GASKET - Call your local BRP dealership |
| 40 |
420211935 |
Oil Duct Cover |
| 41 |
420240480 |
PLUG SCREW - Call your local BRP dealership |
| 42 |
414176000 |
Open Clamp |
| 43 |
420241941 |
HEX. FLANGED SCREW M6 X 30 - Call your local BRP dealership |
| 44 |
420230415 |
Seal Washer |
| 45 |
420230150 |
Oil Seal |
| 46 |
710000313 |
OIL PRESSURE SWITCH - Call your local BRP dealership This part replaces 420256640. |
| 47 |
420265727 |
Camshft Position Sensor Ass'y This part replaces 420265622. |
| 48 |
420241861 |
HEX. FLANGED SCREW M6 X 20 - Call your local BRP dealership |
| 49 |
293800060 |
Loctite 243, 10 ml |
| 50 |
Not |
Available As Spare Part - Engine oil, mineral, API, SJ SAE 10W40 |
| 51 |
293550030 |
Grease, Super Lube This part replaces 293550014. |
