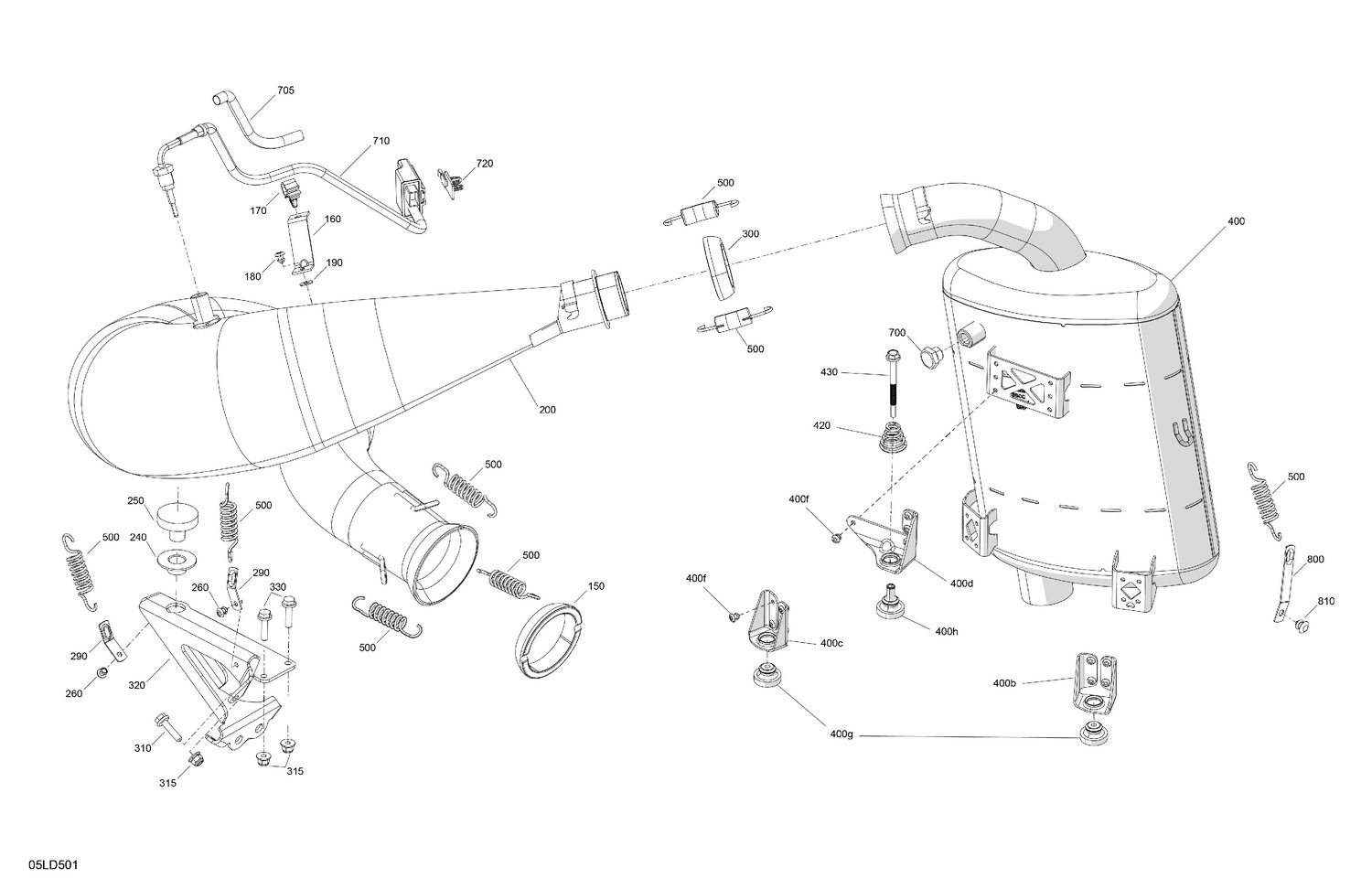

02- Engine - Exhaust
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 150 | 514053487 | Exhaust Gasket |
| 160 | 514055512 | Support |
| 170 | 515176795 | Tie Rap Mount (Screwable) |
| 180 | 390909200 | Avex Rivet |
| 190 | 514055537 | Washer 3/16 |
| 200 | 514055809 | Pipe |
| 240 | 514055831 | Support Stopper |
| 250 | 514053654 | Rubber Bumper |
| 260 | 390909200 | Avex Rivet |
| 290 | 514054522 | Spring Bracket |
| 300 | 514055294 | Exhaust Gasket |
| 310 | 207662544 | Hex. Flange Screw M6 X 25 |
| 315 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 320 | 514055830 | Support |
| 330 | 207662544 | Hex. Flange Screw M6 X 25 |
| 400b | 514056193 | Exhaust Support |
| 400c | 514056082 | Exhaust Support |
| 400d | 514056083 | Exhaust Support |
| 400f | 390909200 | Avex Rivet |
| 400g | 514055203 | Stopper |
| 400h | 514056138 | Stopper Ass'y |
| 420 | 514055282 | Spring |
| 430 | 250000926 | Hex. Flanged Screw M6 |
| 500 | 514055198 | Spring |
| 700 | 250100074 | Hexagonal Head Pipe Plug M14 |
| 705 | 514055832 | Heat Shield |
| 710 | 515178170 | Module |
| 720 | 514056265 | Module Support |
| 800 | 514055644 | Spring Bracket |
