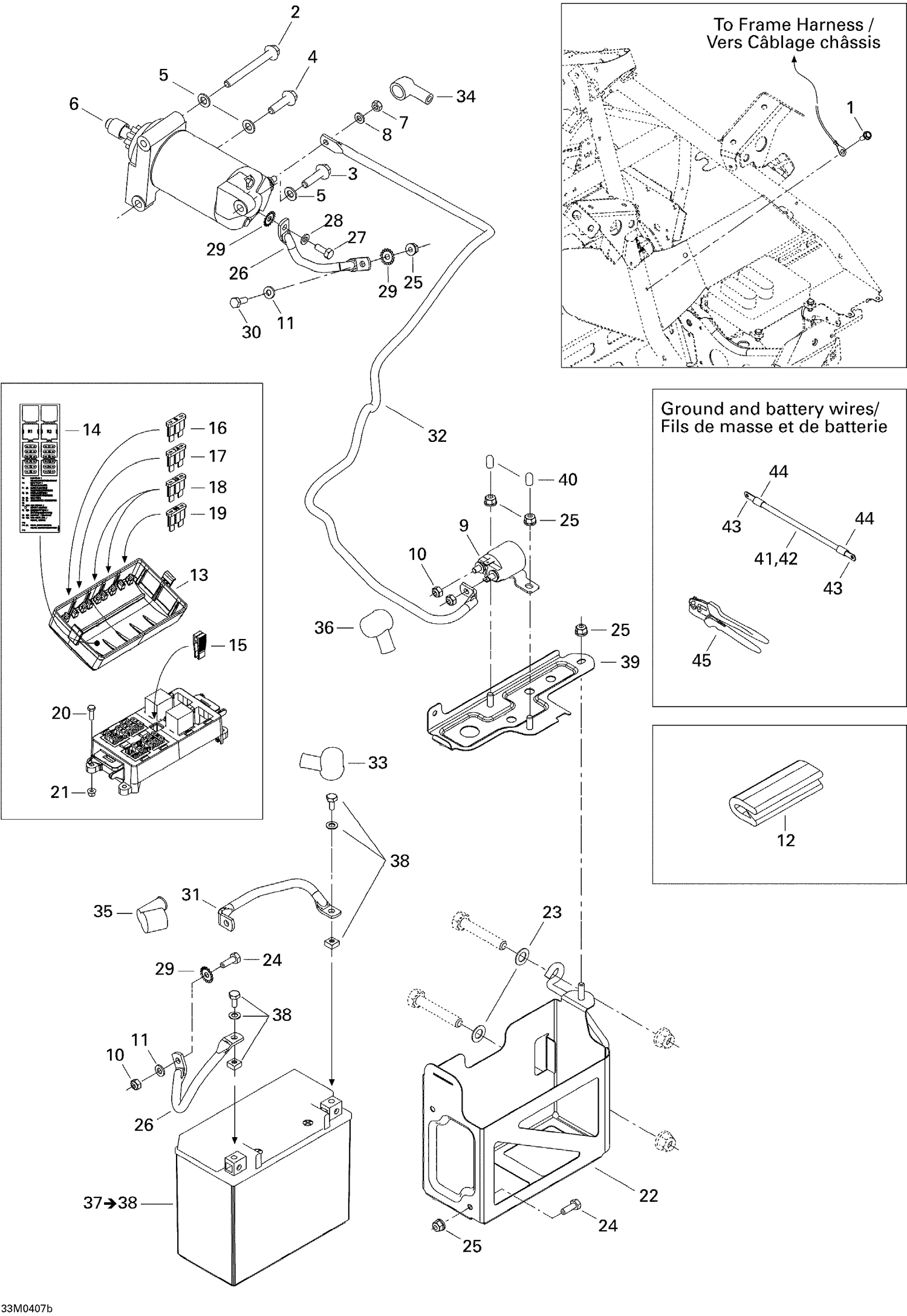

| Ref | Part Number | Description |
|---|
| 1 |
210251180 |
HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership |
| 2 |
207587544 |
Hex. Flange Screw M8 X 75, Scotch Grip |
| 3 |
207583044 |
Hex. Flange Screw M8 X 30, Scotch Grip |
| 4 |
207583044 |
Hex. Flange Screw M8 X 30, Scotch Grip |
| 5 |
250200008 |
Flat Washer With Teflon 8 mm |
| 6 |
515176133 |
Electric Starter Ass'y This part replaces 515176003. |
| 7 |
232561414 |
Elastic Stop Nut M6 |
| 8 |
234061410 |
Flat Washer 6 mm |
| 9 |
515176011 |
Starter Relay |
| 10 |
232561414 |
Elastic Stop Nut M6 |
| 11 |
234061410 |
Flat Washer 6 mm |
| 12 |
219704353 |
Was 271000110 Protection Trim |
| 13 |
515176066 |
COVER - Call your local BRP dealership |
| 14 |
516002141 |
Fuse Decal |
| 15 |
515175811 |
FUSE TOOL - Call your local BRP dealership |
| 16 |
278000344 |
Fuse, 5 Amperes |
| 17 |
278000704 |
FUSE, 7.5 AMPERES - Call your local BRP dealership |
| 18 |
409003900 |
Fuse, 20 Amperes |
| 19 |
410917200 |
Fuse, 30 Amperes |
| 20 |
207152044 |
Hex. Screw M5 X 20 |
| 21 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 22 |
515176017 |
Battery Support, Black |
| 23 |
503175800 |
Washer |
| 24 |
207161844 |
Hex. Screw M6 X 18 |
| 25 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 26 |
Not |
Available As Spare Part - Ground Wire |
| 27 |
207361644 |
Hex. Screw M6 X 16, Scotch Grip |
| 28 |
234061410 |
Flat Washer 6 mm |
| 29 |
250200041 |
Lock Washer Serrated M6 |
| 30 |
207162044 |
Hex. Screw M6 X 20 |
| 31 |
Not |
Available As Spare Part - Battery Wire |
| 32 |
Not |
Available As Spare Part - Battery Wire |
| 33 |
570151000 |
Protection Cap |
| 34 |
278001771 |
PROTECTOR CAP - Call your local BRP dealership |
| 35 |
570064200 |
PROTECTION CAP - Call your local BRP dealership |
| 36 |
515175919 |
Protector Cap |
| 38 |
250000282 |
Battery Bolt Kit This part replaces 295500849. |
| 39 |
515175735 |
BATTERY STRIP - Call your local BRP dealership |
| 40 |
515176141 |
Cap |
| 41 |
278001680 |
Ground Cable Battery, no 6, meter) |
| 42 |
278001690 |
Cable Battery, no 6, meter) |
| 43 |
278001682 |
Terminal 45°, Small Hole |
| 44 |
219704447 |
Was 710000483 Heat Shrink Tubing |
| 278001685 |
FLAT |
TERMINAL, BIG HOLE - Call your local BRP dealership 278001685 |
| 278001685 |
Terminal |
Plate, Gros Trou - Appelez votre concessionnaire BRP local 278001685 |
| 278001688 |
FLAT |
TERMINAL - Call your local BRP dealership 278001688 |
| 278001688 |
Terminal |
Plat - Appelez votre concessionnaire BRP local 278001688 |
