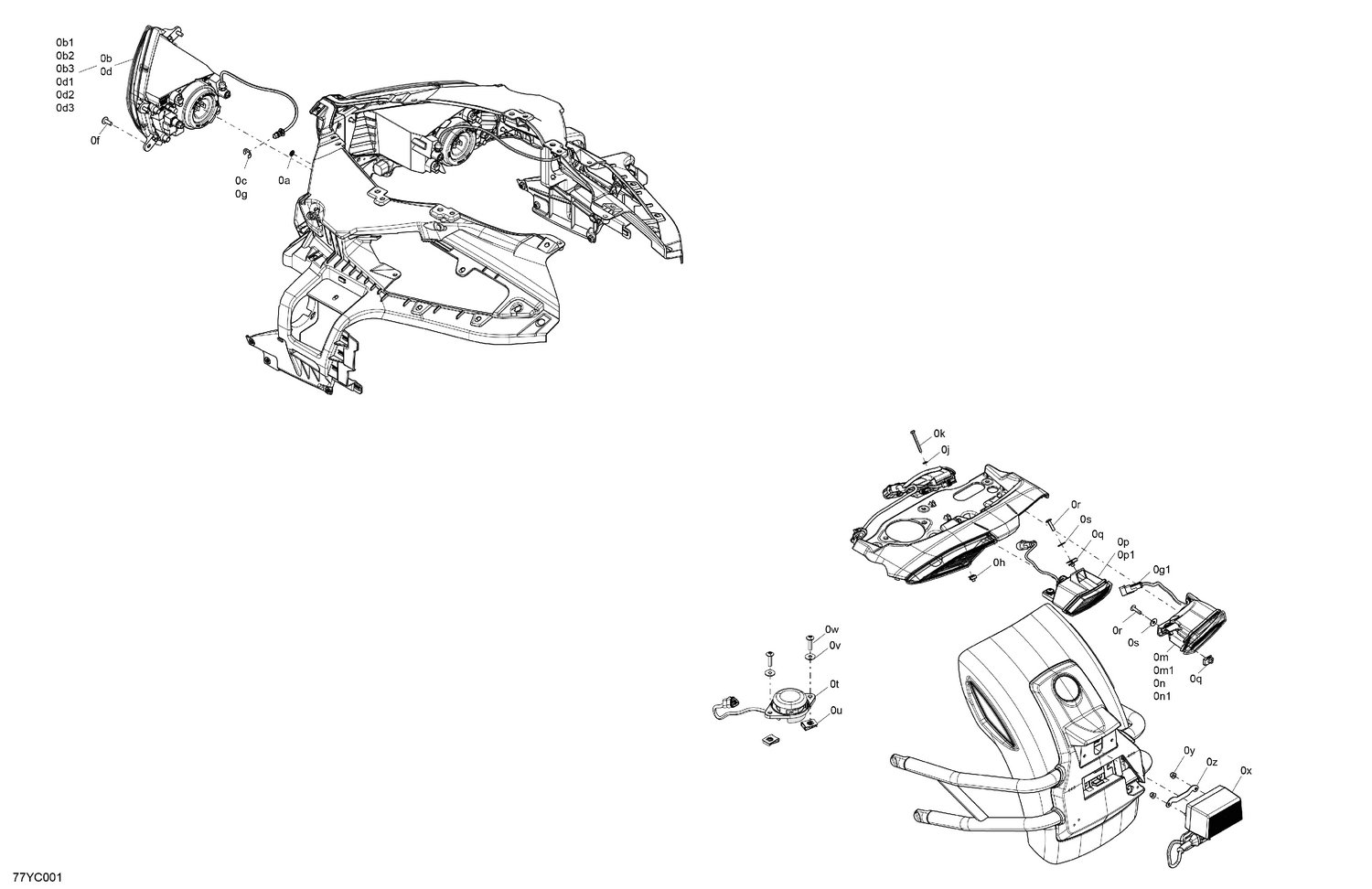

08- Electric - Vehicle Lighting
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 0a | 250001189 | Push Nut |
| 0b1 | 515176274 | Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 0b2 | 219800280 | Rubber Cap Protector |
| 0b3 | 219800281 | Spring |
| 0c | 293370013 | E-Circlip |
| 0d1 | 515176274 | Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 0d2 | 219800280 | Rubber Cap Protector |
| 0d3 | 219800281 | Spring |
| 0f | 250000721 | Torx Truss Screw M6 X 16 |
| 0g1 | 710007701 | MODULE_TURN SIGNAL - Call your local BRP dealership |
| 0h | 250100143 | Extruded Panel Nut M4 X 0.7 |
| 0j | 234041600 | Flat Washer 4 mm, Stainless |
| 0k | 207144060 | Hex. Screw M4 X 40 |
| 0m1 | 219800304 | Flasher Bulb |
| 0n1 | 219800304 | Flasher Bulb |
| 0p1 | 219800322 | Bulb 12V 10W |
| 0q | 250000958 | Panel Nut M5 X 0.8 |
| 0r | 250000715 | Torx Truss Screw M5 X 20 |
| 0s | 234052670 | Stainless Steel Flat Washer M5 |
| 0t | 710008103 | Passenger Detection Switch |
| 0u | 250100208 | Panel Nut M6 X 1.0 |
| 0v | 234062670 | Stainless Steel Flat Washer |
| 0w | 250000807 | Torx Truss Screw M6 X 25 |
| 0x | 710003348 | License Plate Light |
| 0y | 233251494 | Elastic Flange Nut M5 |
