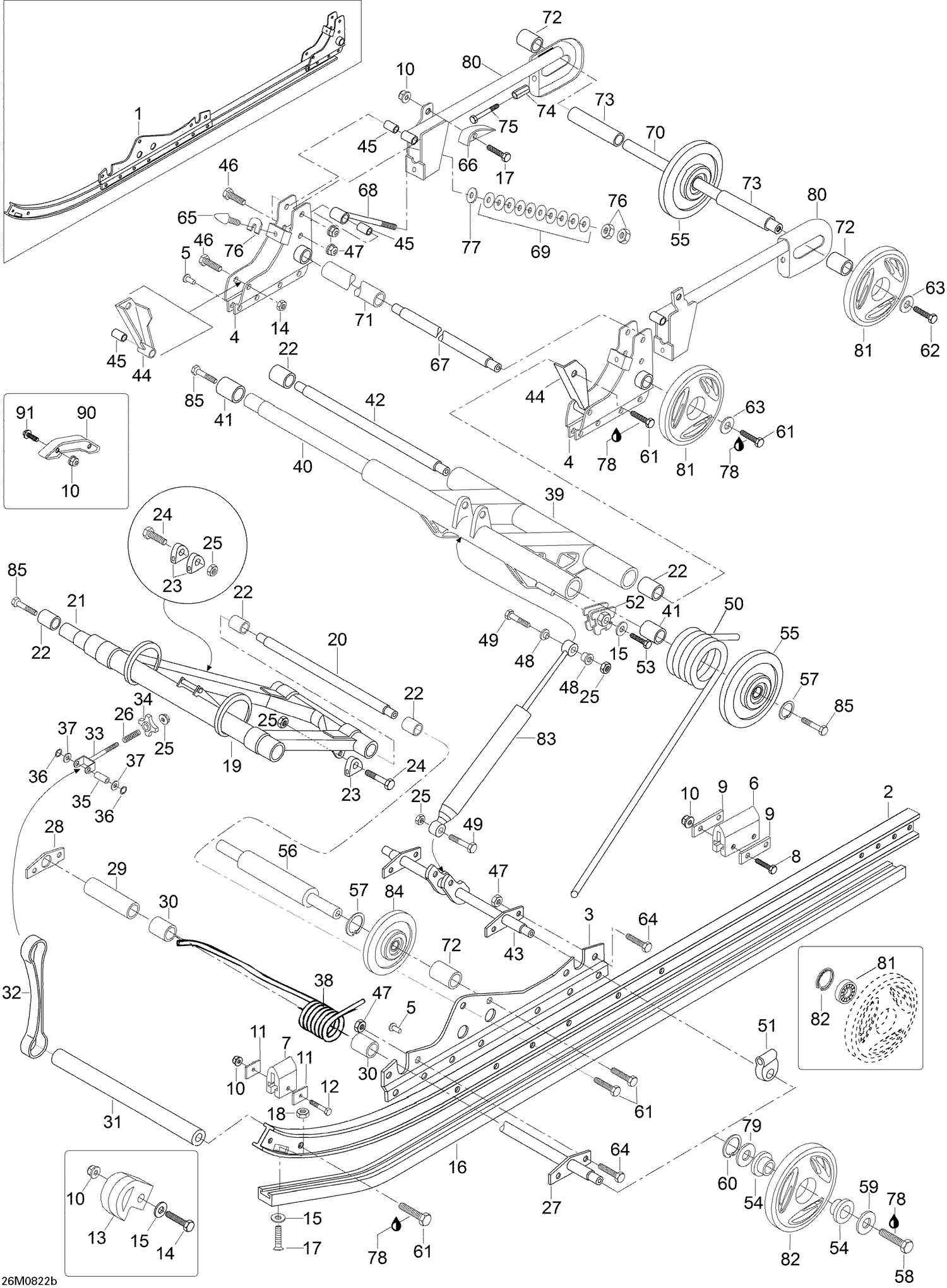

| Ref | Part Number | Description |
|---|
| 1 |
XXX |
Not Available As Spare Parts |
| 2 |
5142864 |
RUNNER - Call your local BRP dealership This part replaces M5142864. |
| 3 |
5344810 |
Support Plate Lh This part replaces M5344810. |
| 3 |
5344811 |
Support Plate Rh This part replaces M5344811. |
| 4 |
539672 |
Support For Rearaxle Lh This part replaces M539672. |
| 4 |
539673 |
Support For Rearaxle Rh This part replaces M539673. |
| 5 |
M544212 |
RIVET - Call your local BRP dealership |
| 6 |
570023100 |
RUBBER STOPPER - Call your local BRP dealership |
| 7 |
5442328 |
STOPPER-RUBBER - Call your local BRP dealership This part replaces M5442328. |
| 8 |
207064044 |
Hex. Screw M6 X 40 |
| 9 |
M548387 |
Washer |
| 10 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces M33200. |
| 11 |
M548470 |
Plate |
| 12 |
207063044 |
Hex. Screw M6 X 30 |
| 13 |
605348954 |
Runner Protector |
| 14 |
207162544 |
Hex. Screw M6 X 25 |
| 15 |
234061410 |
Flat Washer 6 mm |
| 16 |
M549582 |
Runner Shoe |
| 17 |
207162044 |
Hex. Screw M6 X 20 |
| 18 |
232561414 |
Elastic Stop Nut M6 |
| 19 |
605255303 |
Front arm - Call your local BRP dealership |
| 20 |
549695 |
Shaft This part replaces M549695. |
| 21 |
542793 |
Bogie Shaft This part replaces M542793. |
| 22 |
542770 |
Shaft Sleeve This part replaces M542770. |
| 23 |
548799 |
Spring Roller This part replaces M548799. |
| 24 |
207004044 |
Hex. Screw M10 X 40 |
| 25 |
233601416 |
Elastic Locking Nut M10 X 1.5 |
| 26 |
414460600 |
SPRING - Call your local BRP dealership |
| 27 |
M5345453 |
Axle |
| 28 |
M548469 |
Plate Support |
| 29 |
M5440313 |
Sleeve |
| 30 |
M548841 |
Sleeve |
| 31 |
M549718 |
Cross Shaft |
| 32 |
605454841 |
STOPPER STRAP - Call your local BRP dealership |
| 33 |
M5441643 |
Bolt-Eye Adjuster |
| 34 |
572034000 |
ADJUSTER KNOB - Call your local BRP dealership |
| 35 |
M5441645 |
Pin |
| 36 |
M41035 |
Circlip |
| 37 |
234001410 |
Flat Washer 10 mm |
| 38 |
605354839 |
LH Spring Front Arm |
| 38 |
605354840 |
RH FRONT ARM SPRING - Call your local BRP dealership |
| 39 |
5343493 |
Reararm - Call your local BRP dealership This part replaces M5343493. |
| 40 |
5343492 |
Shaft This part replaces M5343492. |
| 41 |
31023 |
Bearing This part replaces M31023. |
| 42 |
549656 |
Swing shaft - Call your local BRP dealership This part replaces M549656. |
| 43 |
5345454 |
SHAFT - Call your local BRP dealership This part replaces M5345454. |
| 44 |
5440349 |
Crank Arm Lh This part replaces M5440349. |
| 44 |
5440350 |
Crank Arm R.H. This part replaces M5440350. |
| 45 |
545758 |
Spacer This part replaces M545758. |
| 46 |
207084544 |
Hex. Screw M8 X 45 |
| 47 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 48 |
544417 |
Shock Spacer - Call your local BRP dealership This part replaces M544417. |
| 49 |
207005044 |
Hex. Screw M10 X 1.5 X 50 |
| 50 |
538805 |
Spring L.H. This part replaces M538805. |
| 50 |
538806 |
Spring R.H. This part replaces M538806. |
| 51 |
M5442112 |
SPRING SUPPORT - Call your local BRP dealership |
| 52 |
572030800 |
LH ADJUST CAM - Call your local BRP dealership |
| 52 |
572030900 |
RH ADJUST CAM - Call your local BRP dealership |
| 53 |
207161044 |
HEX. SCREW M6 X 10 - Call your local BRP dealership |
| 54 |
503189534 |
Cushion |
| 55 |
503189478 |
Thin Wheel 165 |
| 56 |
M549680 |
Support Shaft |
| 57 |
31001 |
Retaining Ring 25X2 Din471(1=10Pcs) This part replaces M31001. |
| 58 |
40336 |
HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336. |
| 59 |
503183100 |
Washer |
| 60 |
293370056 |
Circlip 20X1.75 DIN471 This part replaces M31007. |
| 61 |
40335 |
Hex Sc. M10X 30 Bn73 M8.8 Zne(1=10Pcs) This part replaces M40335. |
| 62 |
M40050 |
Hex. Screw With Nylon Patch |
| 63 |
503183300 |
Washer |
| 64 |
207181644 |
Hex. Screw M8 x 16 |
| 65 |
535455 |
Rubber Stopper - Call your local BRP dealership This part replaces M535455. |
| 66 |
M548262 |
Protector |
| 67 |
541816 |
Axle This part replaces M541816. |
| 68 |
5440377 |
BOLT-EYE ADJUSTER - Call your local BRP dealership This part replaces M5440377. |
| 69 |
25004 |
Cup Spring This part replaces M25004. |
| 70 |
M5343284 |
SHAFT - Call your local BRP dealership |
| 71 |
M541815 |
Sleeve |
| 72 |
M546577 |
Sleeve |
| 73 |
M5443285 |
SLEEVE - Call your local BRP dealership |
| 74 |
605633002 |
Spacer |
| 75 |
M40239 |
SCREW - Call your local BRP dealership |
| 76 |
5440645 |
Adjustment Plate This part replaces M5440645. |
| 77 |
234002410 |
Flat Washer 10 mm This part replaces M20011. |
| 78 |
293800060 |
Loctite 243, 10 ml |
| 79 |
M31091 |
SHIM - Call your local BRP dealership |
| 80 |
605251783 |
EXTENSION TUBE LH - Call your local BRP dealership |
| 80 |
605251784 |
EXTENSION TUBE RH - Call your local BRP dealership |
| 81 |
503190817 |
Wheel 165 mm Yellow |
| 82 |
503190815 |
WHEEL 139 MM - Call your local BRP dealership |
| 83 |
503189997 |
SHOCK - Call your local BRP dealership |
| 84 |
503190798 |
Wheel 139 mm Ass'y |
