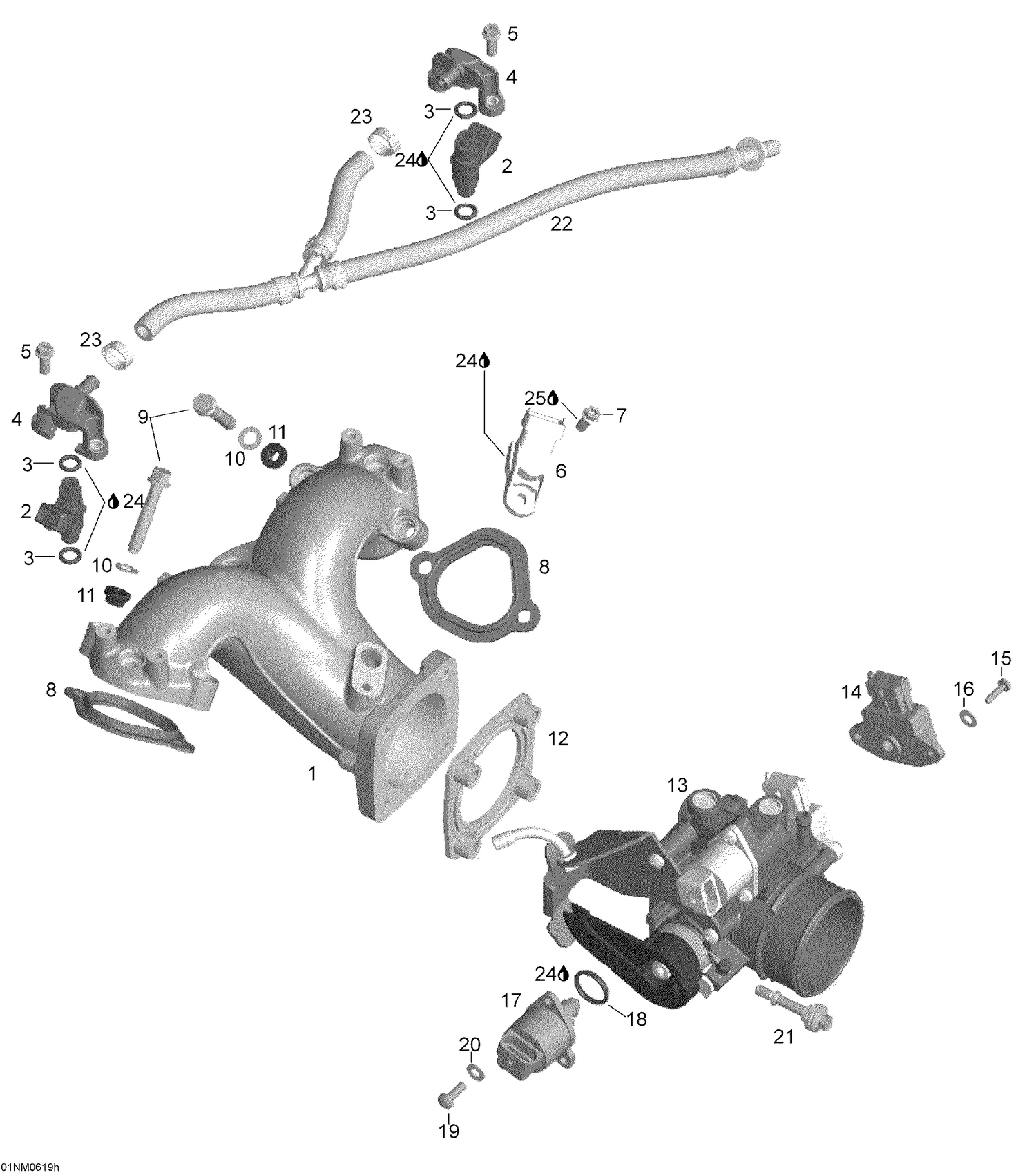

02- Throttle Body
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420867940 | AIR INLET MANIFOLD - Call your local BRP dealership |
| 3 | 420631220 | O-Ring |
| 4 | 420874410 | Fuel Rail |
| 5 | 420440162 | Torx Flange Screw M6 X 16 |
| 6 | 270600040 | Pressure Sensor This part replaces 420274055. |
| 7 | 420440162 | Torx Flange Screw M6 X 16 |
| 8 | 420950690 | Gasket |
| 9 | 420440472 | SCREW M8 X 45 - Call your local BRP dealership |
| 10 | 420944038 | WASHER - Call your local BRP dealership |
| 11 | 420660190 | RUBBER SLEEVE - Call your local BRP dealership |
| 12 | 420950792 | Rubber Gasket |
| 14 | Not | Available As Spare Part - Potentiometer |
| 15 | Not | Available As Spare Part - Screw |
| 16 | Not | Available As Spare Part - Washer |
| 17 | 420665941 | Idle Air Control Valve This part replaces 420963055. |
| 18 | 420631780 | O-Ring |
| 19 | 420440911 | Binding Head Screw M5 X 16 |
| 20 | 420845710 | Snap Ring |
| 21 | 420440568 | Hex Screw M6 X 30 This part replaces 420440307. |
| 22 | 420874562 | Fuel Hose |
| 23 | 420851458 | Clamp |
| 24 | 293550030 | Grease, Super Lube |
