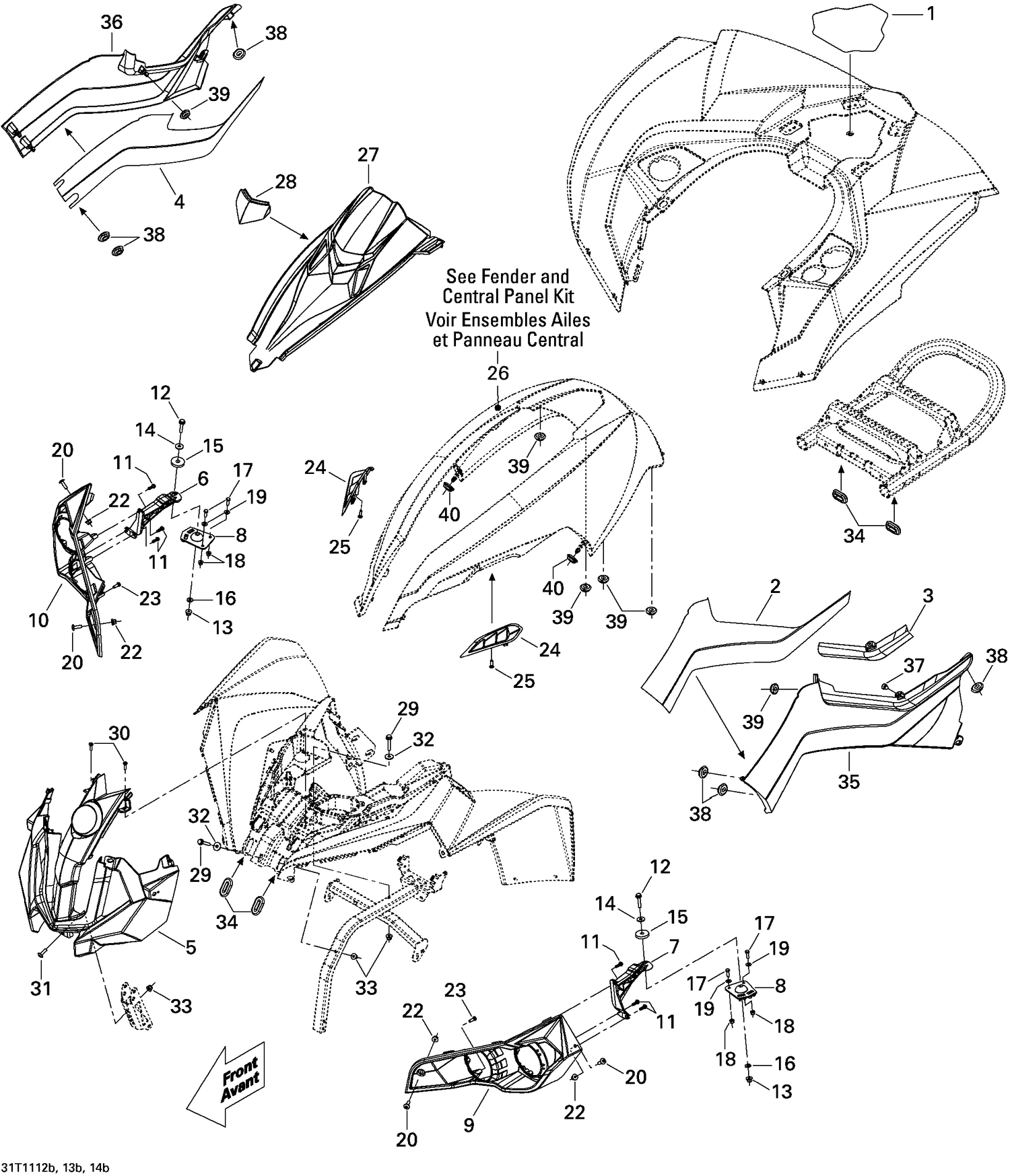

| Ref | Part Number | Description |
|---|
| 1 |
705002343 |
Rear Carpet |
| 2 |
705005620 |
Reflective Sheet This part replaces 705001990. |
| 3 |
705005617 |
REFLECTIVE SHEET - Call your local BRP dealership This part replaces 705001989. |
| 4 |
705005623 |
REFLECTIVE SHEET - Call your local BRP dealership This part replaces 705002126. |
| 5 |
705010673 |
Front Facia This part replaces 705003489. |
| 6 |
705002424 |
RH Light Support |
| 7 |
705002425 |
LH LIGHT SUPPORT - Call your local BRP dealership |
| 8 |
705002405 |
Ball Joint |
| 9 |
705004508 |
LH Front Facia |
| 10 |
705004509 |
RH Front Facia |
| 11 |
241151640 |
Hex. Flange Screw K50 X 2.24 X 16 |
| 12 |
207563034 |
Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044. |
| 13 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 14 |
250200082 |
Flat Washer This part replaces 391302000. |
| 15 |
293830037 |
Rubber Washer |
| 16 |
224061121 |
Flat Washer |
| 17 |
207151644 |
Hex. Screw M5 X 16 |
| 18 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 19 |
250200081 |
FLAT WASHER - Call your local BRP dealership This part replaces 391301700. |
| 20 |
250000284 |
Torx Screw M6 x 25 |
| 22 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 23 |
250000720 |
Torx Screw K50 X 16 This part replaces 250000146. |
| 24 |
705008137 |
LH Grille This part replaces 705002276. |
| 24 |
705008138 |
RH Grille This part replaces 705002277. |
| 25 |
250000720 |
Torx Screw K50 X 16 This part replaces 250000146. |
| 26 |
Not |
Available As Spare Part - Central Pannel |
| 27 |
705003556 |
Dashboard |
| 29 |
207663544 |
Hex. Flange Screw M6 X 35 |
| 30 |
250000720 |
Torx Screw K50 X 16 This part replaces 250000146. |
| 31 |
250000284 |
Torx Screw M6 x 25 |
| 32 |
224061201 |
Flat Washer |
| 33 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 34 |
705003668 |
Oblong Grommet |
| 35 |
705002958 |
Black, LH Lateral Panel |
| 36 |
705002959 |
Black, RH Side Panel |
| 37 |
293830005 |
Rubber Bumper |
| 38 |
705005156 |
Oval Washer |
| 39 |
705003264 |
Grommet |
