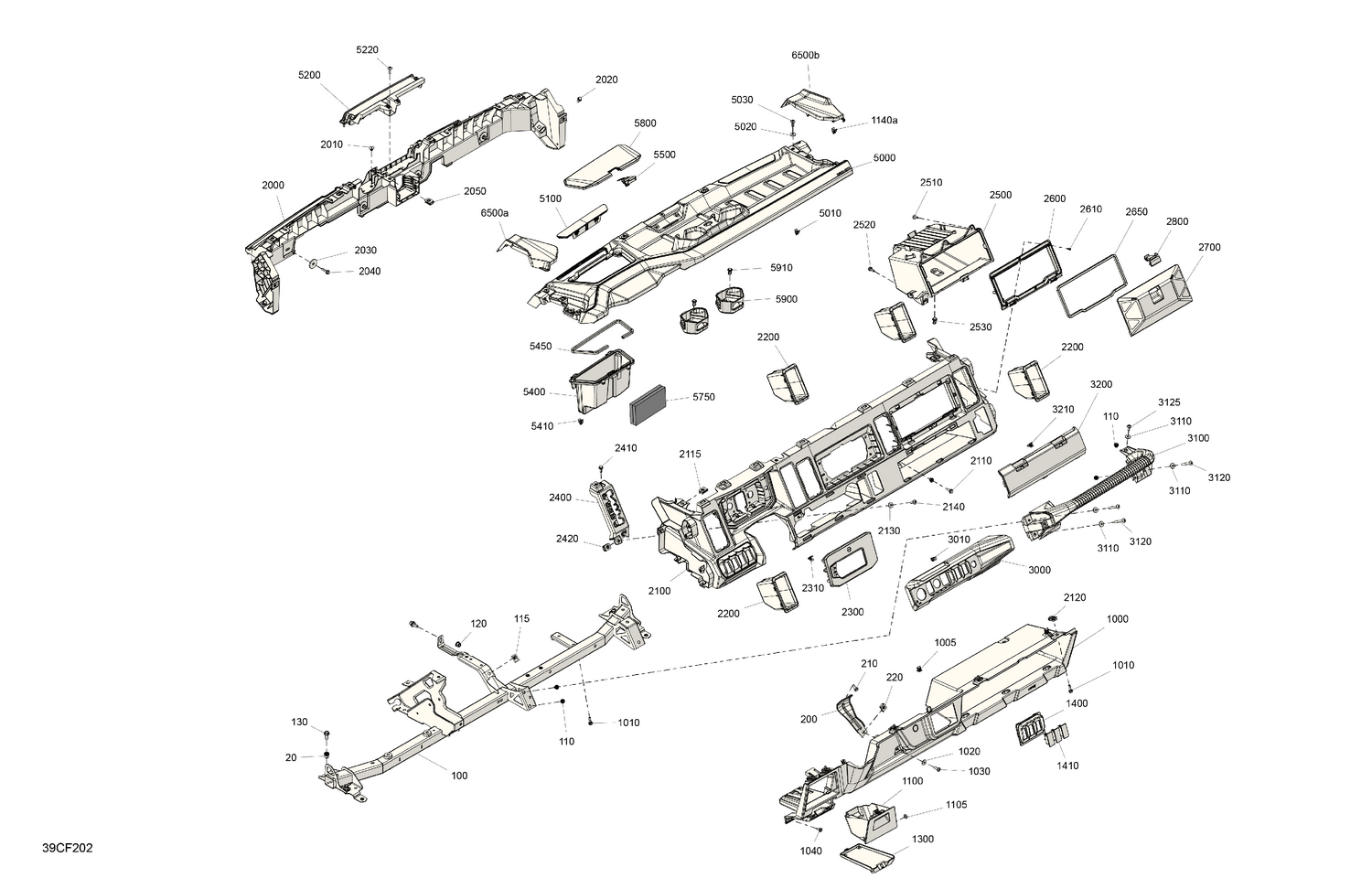

07- Cab Interior - Center Console
Parts (72)
| Ref | Part Number | Description |
|---|---|---|
| 20 | 293450307 | Insert Half Hex Body M8 x 1.25 |
| 100 | 708400660 | Dashboard Support |
| 110 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 115 | 250100208 | Panel Nut M6 X 1.0 |
| 120 | 233281416 | Hex. Elastic Flange Nut M8 |
| 130 | 207582054 | Hex Screw Washer Head M8 X 20 |
| 200 | 708400964 | Lower Dashboard Support |
| 210 | 207561646 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 220 | 250100208 | Panel Nut M6 X 1.0 |
| 1000 | 708400696 | Lower Dashboard |
| 1005 | 517302785 | Edge Clip |
| 1010 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
| 1020 | 234062670 | Stainless Steel Flat Washer |
| 1030 | 250000722 | Torx Screw M6 X 20 |
| 1040 | 250000959 | Screw PT Type K-50 X 16 |
| 1100 | 708400663 | LH Lower Storage Compartment |
| 1105 | 293300194 | O-Ring |
| 1300 | 708400978 | Storage Compartment Trim |
| 1400 | 708400674 | Lower Switch Trim |
| 1410 | 710007173 | Plug Carling |
| 2000 | 708400738 | Front Central Dashboard |
| 2010 | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 2020 | 207561646 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 2030 | 250200158 | Flat Washer M8 |
| 2040 | 207662554 | Hex. Flange Screw M6 X 25 |
| 2050 | 250100208 | Panel Nut M6 X 1.0 |
| 2100 | 708400666 | Central Dashboard |
| 2110 | 207561646 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 2115 | 250100208 | Panel Nut M6 X 1.0 |
| 2120 | 250100208 | Panel Nut M6 X 1.0 |
| 2130 | 234062670 | Stainless Steel Flat Washer |
| 2140 | 250000722 | Torx Screw M6 X 20 |
| 2200 | 708400687 | Storage Compartment |
| 2300 | 708400677 | Gauge Trim |
| 2310 | 517306478 | Clip |
| 2400 | 708400691 | Shift Lever Grille |
| 2410 | 207561646 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 2420 | 250100208 | Panel Nut M6 X 1.0 |
| 2500 | 708400700 | Glove Box Interior |
| 2510 | 250000959 | Screw PT Type K-50 X 16 |
| 2520 | 207561646 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 2530 | 293150230 | Tuflok Plastic Rivet |
| 2600 | 708400673 | Hinge_Lid |
| 2610 | 250000614 | Screw-pt.flange Oval Hd.k30 X 12 |
| 2650 | 293250633 | Cover Gasket |
| 2700 | 708400671 | Deep Black, Glove Box Cover |
| 2800 | 708400690 | Glove Box Latch |
| 3000 | 708400693 | Main Switch Support |
| 3010 | 517306478 | Clip |
| 3100 | 708400670 | RH Holding Handle |
| 3110 | 234062670 | Stainless Steel Flat Washer |
| 3120 | 250000868 | Torx Truss M6 X 50 |
| 3125 | 250000721 | Torx Truss Screw M6 X 16 |
| 3200 | 708400754 | RH Holding Handle Trim |
| 3210 | 517302785 | Edge Clip |
| 5000 | 715011305 | Upper Dashboard |
| 5010 | 517306478 | Clip |
| 5020 | 234062670 | Stainless Steel Flat Washer |
| 5030 | 250000722 | Torx Screw M6 X 20 |
| 5100 | 708400865 | Front Ventilation Duct Cap |
| 5200 | 708400756 | Front Upper Dashboard Panel |
| 5220 | 250000722 | Torx Screw M6 X 20 |
| 5400 | 708400932 | LH Upper Storage Compartment |
| 5410 | 517306478 | Clip |
| 5450 | 293250632 | Cover Gasket |
| 5500 | 708400884 | Upper Storage Latch |
| 5750 | 264000135 | Sealed Compartment Foam |
| 5800 | 708400672 | LH Box Cover |
| 5900 | 708400903 | Cup Holder Trim |
| 5910 | 293150230 | Tuflok Plastic Rivet |
| 6500a | 708400896 | LH Front Cage Trim |
| 6500b | 708400897 | RH Front Cage Trim |
