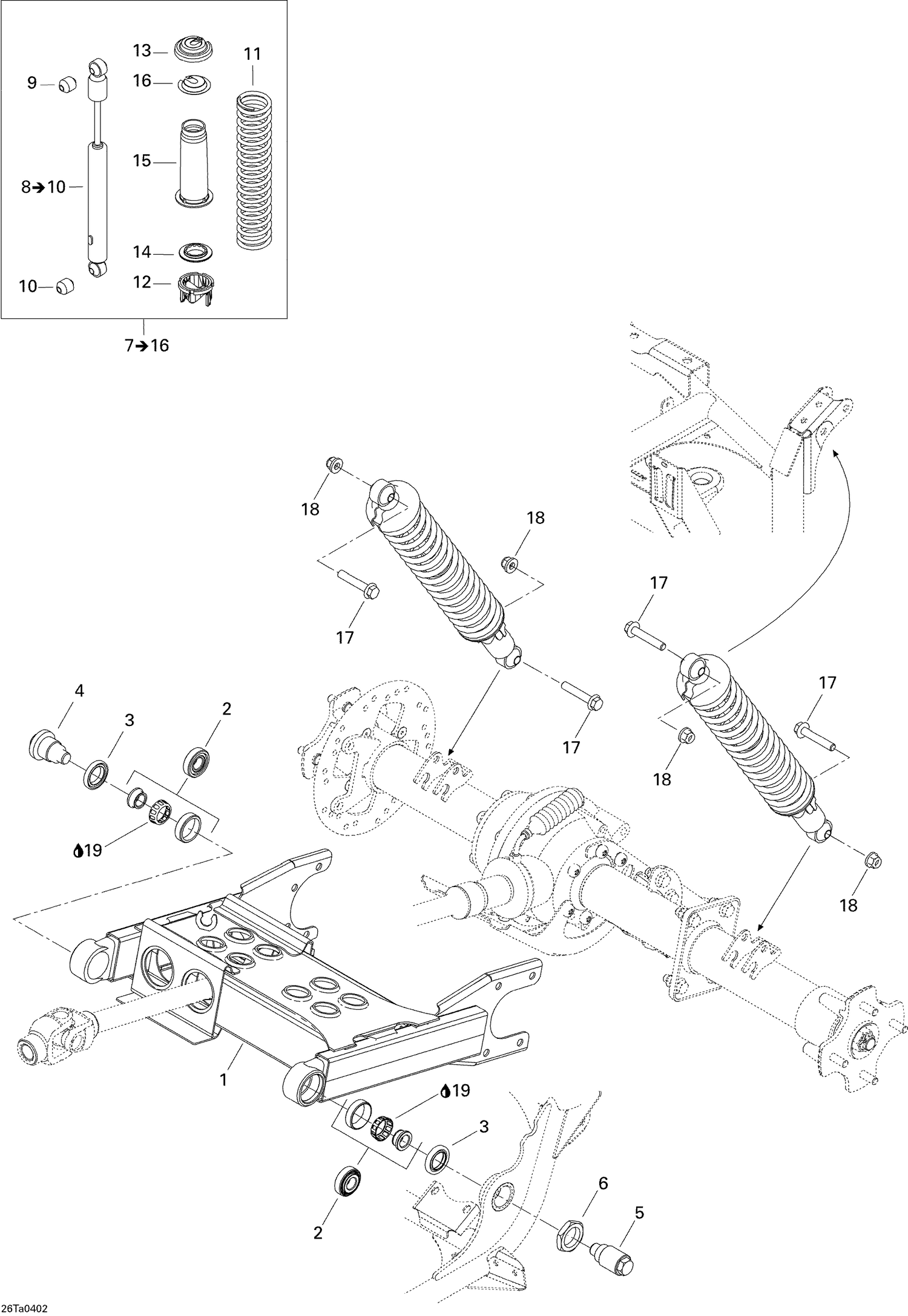

| Ref | Part Number | Description |
|---|
| 2 |
706000169 |
CONE BEARING - Call your local BRP dealership |
| 3 |
706000010 |
OIL SEAL - Call your local BRP dealership |
| 4 |
706000092 |
RH Pivot Bolt |
| 5 |
706000093 |
LH PIVOT BOLT - Call your local BRP dealership |
| 6 |
706000006 |
HEX. JAM NUT - Call your local BRP dealership |
| 9 |
706000146 |
UPPER BUSHING - Call your local BRP dealership |
| 10 |
706000147 |
Lower Bushing |
| 11 |
706000301 |
Rear Spring, Yellow |
| 12 |
706000317 |
RING ADJUSTER - Call your local BRP dealership |
| 13 |
706200881 |
Spring Stopper This part replaces 503140600. |
| 14 |
706000197 |
Spring Seat |
| 15 |
706000032 |
Protector |
| 16 |
706200785 |
Cap This part replaces 503141600. |
| 17 |
207605544 |
Hex. Flange Screw M10 X 55 |
| 18 |
233201414 |
Hex. Flange Elastic Nut M10 |
