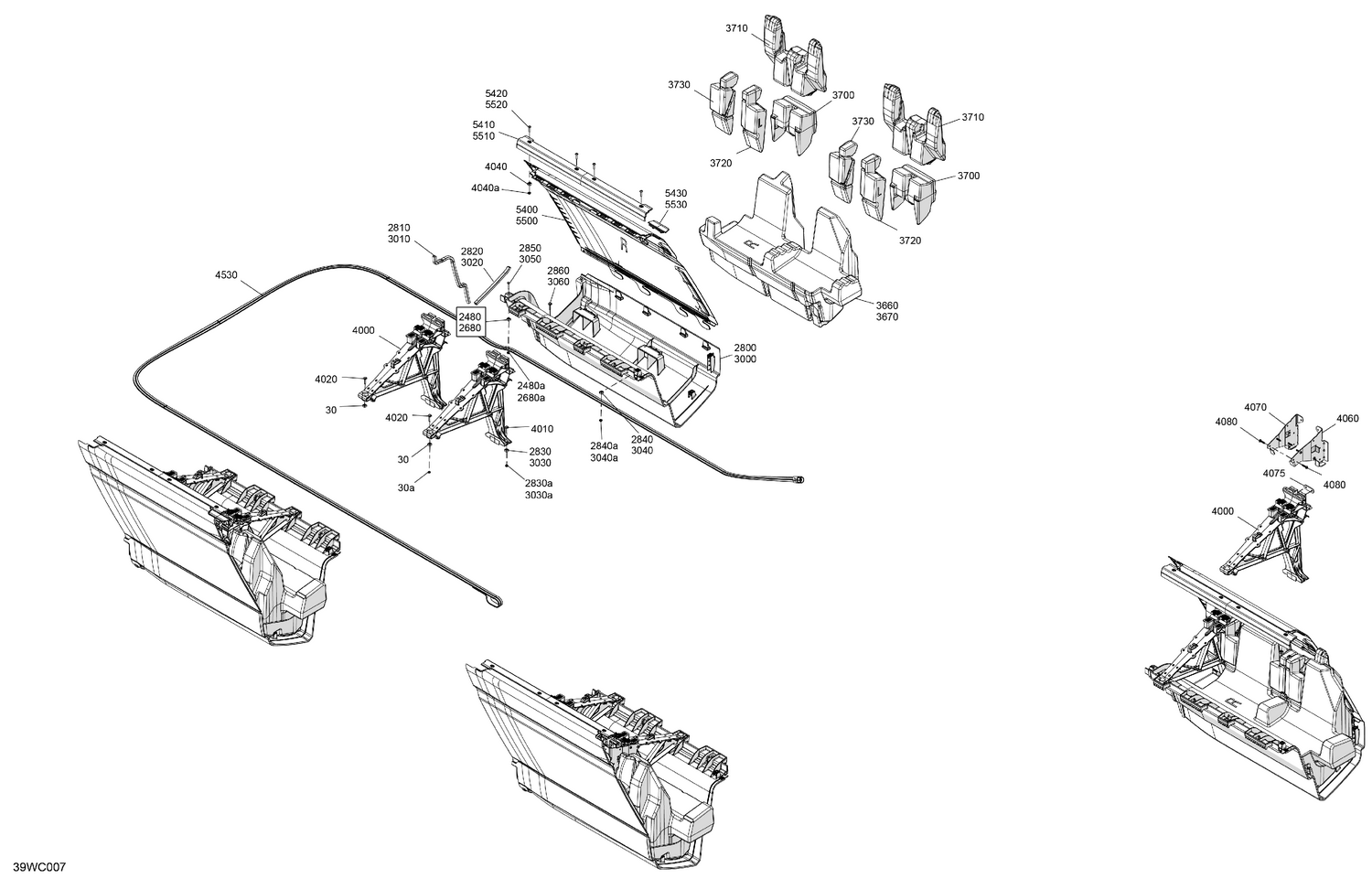

06- HULL - Central Float Deflector
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 30a | 232561200 | Brass Elastic Stop Nut M6 |
| 2480a | 232561200 | Brass Elastic Stop Nut M6 |
| 2680a | 232561200 | Brass Elastic Stop Nut M6 |
| 2800 | 291006185 | LH Central Deflector Float |
| 2810 | 292002677 | Gasket |
| 2820 | 292002677 | Gasket |
| 2830a | 232561200 | Brass Elastic Stop Nut M6 |
| 2840a | 232561200 | Brass Elastic Stop Nut M6 |
| 2850 | 250000969 | Hex Screw SEMS M6X35, SS |
| 2860 | 250000969 | Hex Screw SEMS M6X35, SS |
| 3000 | 291006186 | RH Central Deflector Float |
| 3010 | 292002677 | Gasket |
| 3020 | 292002677 | Gasket |
| 3030a | 232561200 | Brass Elastic Stop Nut M6 |
| 3040a | 232561200 | Brass Elastic Stop Nut M6 |
| 3050 | 250000969 | Hex Screw SEMS M6X35, SS |
| 3060 | 250000969 | Hex Screw SEMS M6X35, SS |
| 3660 | 292002787 | LH Central Float |
| 3670 | 292002788 | RH Central Float |
| 3700 | 291005639 | Lower Float Support |
| 3710 | 291005845 | Upper Float Support |
| 3720 | 291005637 | LH Float Support |
| 3730 | 291005636 | RH Float Support |
| 4000 | 291004895 | Interlocking Tile Support |
| 4010 | 250000969 | Hex Screw SEMS M6X35, SS |
| 4020 | 250000969 | Hex Screw SEMS M6X35, SS |
| 4040a | 232561200 | Brass Elastic Stop Nut M6 |
| 4060 | 291006168 | Reinforcement Support |
| 4070 | 291006169 | Reinforcement Support |
| 4075 | 291005950 | Connecting Plate |
| 4080 | 250000879 | Plastite Torx Screw M6.81X30 |
| 4530 | 291005856 | Rinsing Hose 756 Cm |
| 5400 | 291004844 | Off White, LH Central Panel |
| 5410 | 291006170 | Central Panel Trim |
| 5420 | 250001116 | Screw-Torx Truss Cone Head M6X25 |
| 5430 | 291005383 | Trim Cap |
| 5500 | 291004846 | Off White, RH Central Panel |
| 5510 | 291006170 | Central Panel Trim |
| 5520 | 250001116 | Screw-Torx Truss Cone Head M6X25 |
