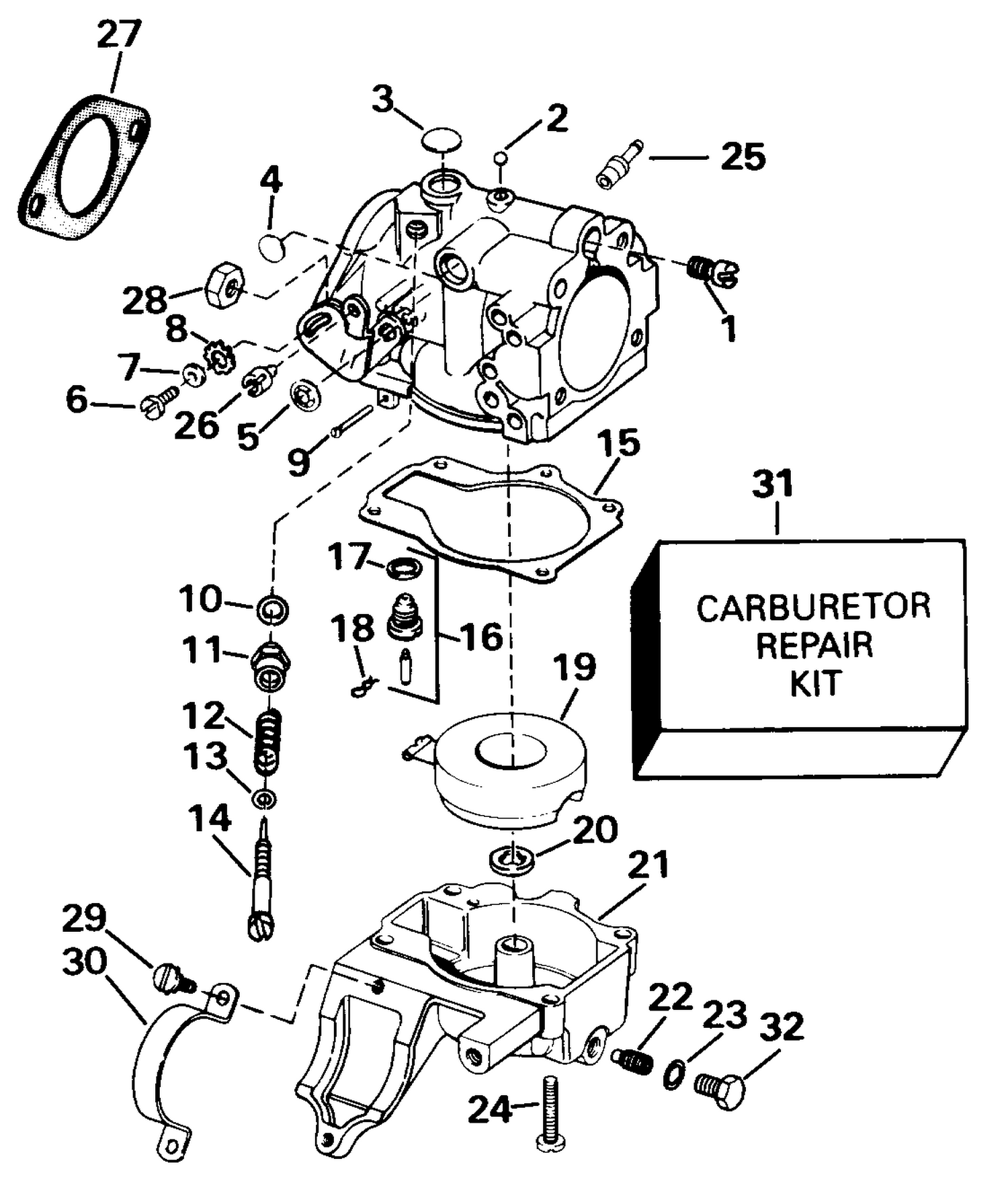

CARBURETOR 20SE, 20SEL, 25E, 25EL
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 18 | 0336842 | CLIP, SPRING |
| 21 | 0439383 | FLOAT CHAMBER |
| 24 | 0329513 | SCREW, Float bowl |
| 26 | 0313329 | LOCKWASHER, Carburetor link |
| 27 | 0325092 | GASKET |
| 28 | 0316355 | BUT, Carburetor mounting |
| 29 | 0329594 | SCREW, Cam follower |
| 30 | 0328907 | COLLIER, amorçage vers support |
| 31 | 0396701 | CARBURETOR REPAIR KIT |
| 0439388 | 0439388 | CARBURETOR ASSEMBLY |
