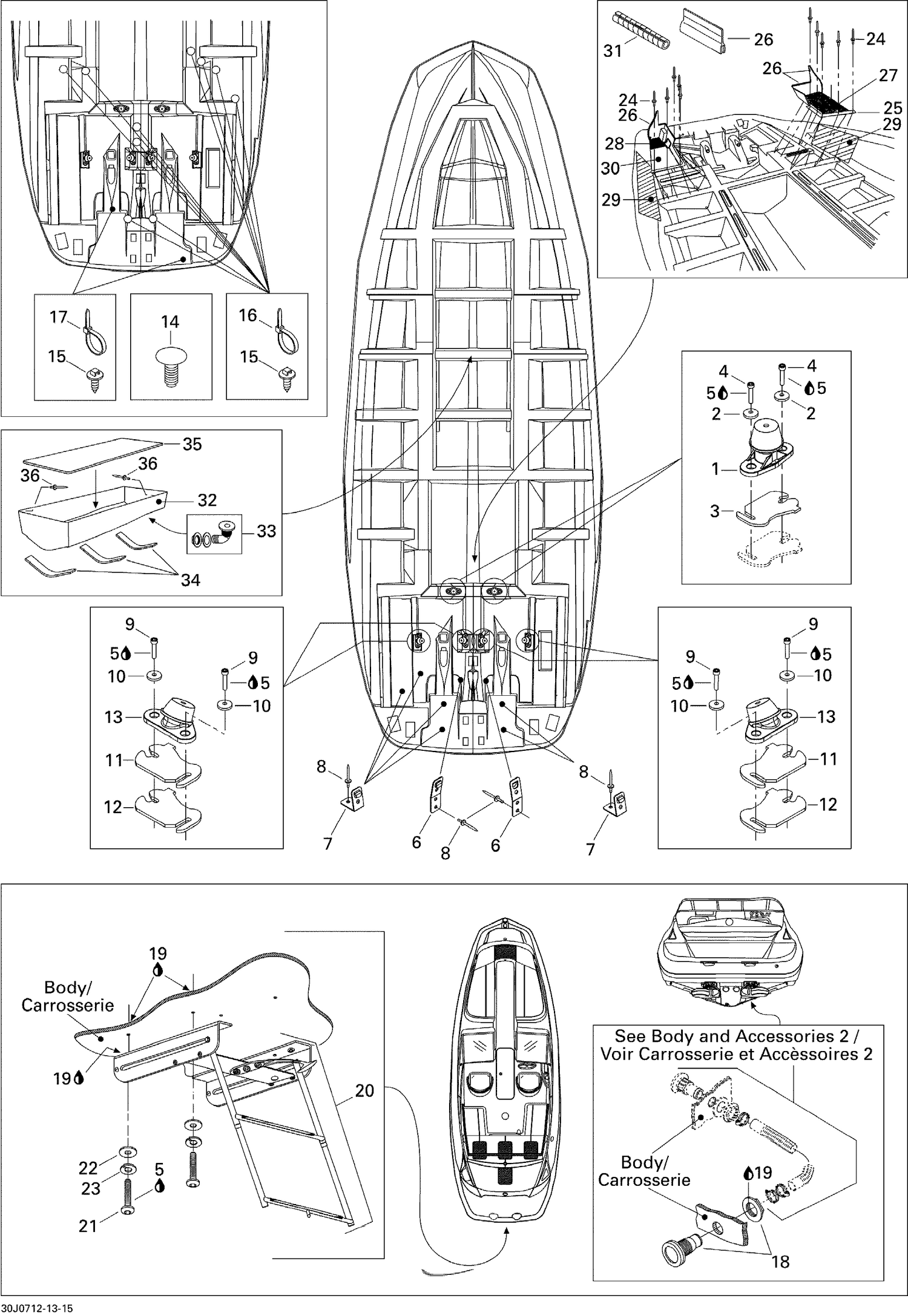

| Ref | Part Number | Description |
|---|
| 1 |
270001096 |
Engine Support Ass'y This part replaces 270000690. |
| 2 |
250200018 |
Cone Washer |
| 3 |
0460868 |
NEEDS DESCRIPTION This part replaces 204250048. |
| 4 |
205084560 |
Socket Head Screw M8 X 45 |
| 5 |
293800060 |
Loctite 243, 10 ml |
| 6 |
293850030 |
Strap Clip |
| 7 |
204060017 |
Strap Clip 90° |
| 8 |
293150037 |
Avdel Rivet 3/16" |
| 9 |
205084060 |
SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership |
| 10 |
250200018 |
Cone Washer |
| 11 |
270000445 |
SHIM 0.3 MM - Call your local BRP dealership |
| 12 |
270000762 |
Shim 1.3 mm This part replaces 270000446. |
| 13 |
270001081 |
Engine Support Ass'y This part replaces 270000688. |
| 14 |
293730006 |
Black, Dart |
| 15 |
293730040 |
Mount Dart |
| 16 |
414115200 |
Tie-Rap 180 mm |
| 17 |
293750008 |
Tie Wrap 368 mm |
| 18 |
204061102 |
SCUPPER VALVE - Call your local BRP dealership |
| 19 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 20 |
204061193 |
TWO STEP LADDER - Call your local BRP dealership This part replaces 204061122. |
| 21 |
205405060 |
SOCKET HEAD SCREW M10 X 50 - Call your local BRP dealership |
| 22 |
234001600 |
Flat Washer 10 mm, Stainless |
| 23 |
234101601 |
Helicoidal Lock Washer M10 |
| 24 |
Not |
Available As Spare Part - Rivet |
| 25 |
Not |
Available As Spare Part - Rear Storage, Port Side |
| 26 |
204130079 |
TRIM LOCK, METER - Call your local BRP dealership |
| 27 |
204061139 |
Rear Storage Liner, Port Side |
| 28 |
204061148 |
Rear Storage Liner, Starboard |
| 29 |
204061140 |
STERN STORAGE CARPET - Call your local BRP dealership |
| 30 |
Not |
Available As Spare Part - Rear Storage, Starboard |
| 31 |
204550028 |
SLIT CONDUIT, METER - Call your local BRP dealership |
| 32 |
Not |
Available As Spare Part - Ski Locker Liner |
| 33 |
204071166 |
DRAIN FITTING 90 - Call your local BRP dealership |
| 34 |
202000024 |
NEOPRENE, METER - Call your local BRP dealership |
| 35 |
204061138 |
Ski Locker Liner Carpet |
