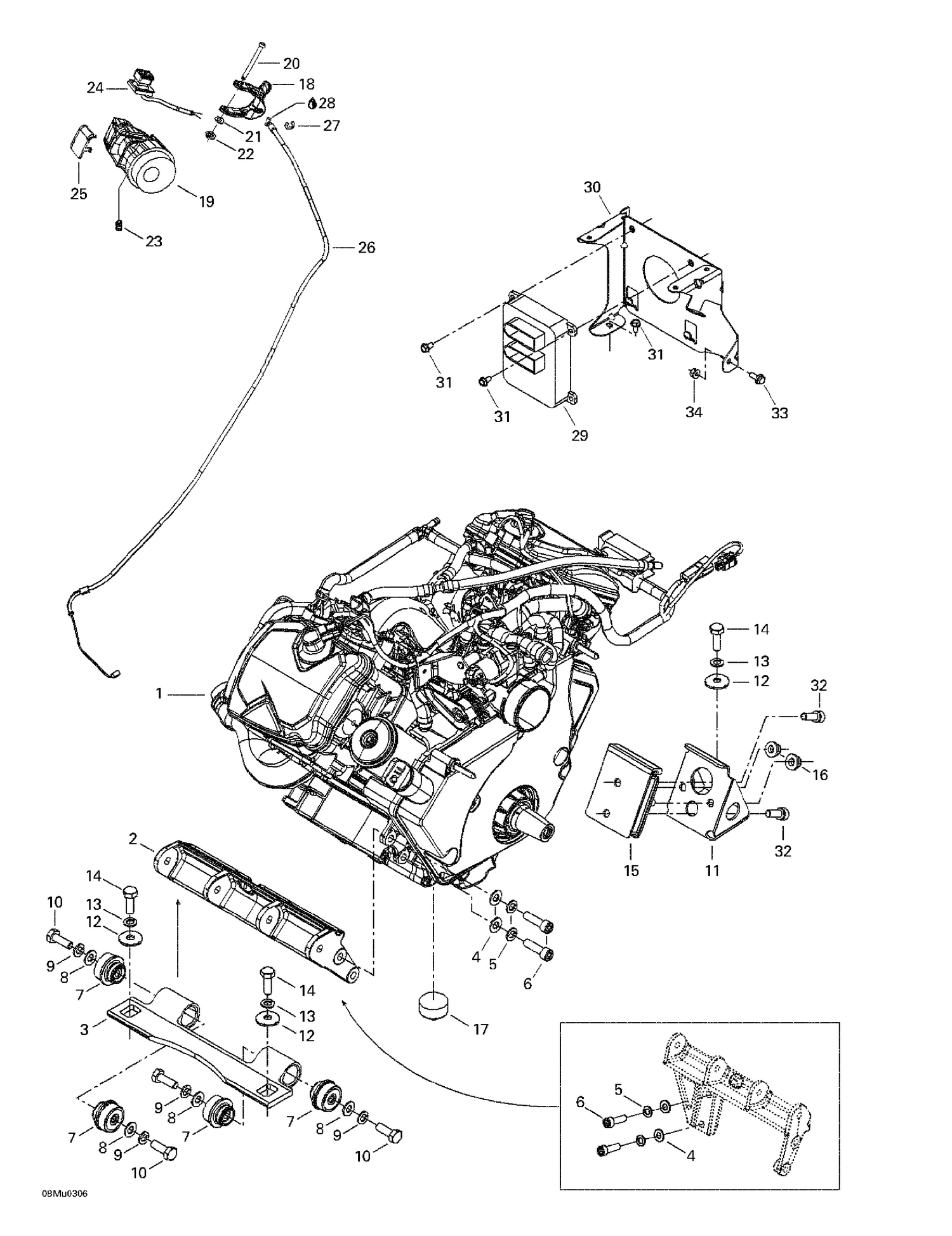

01- Engine And Engine Support
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 400101106 | Engine |
| 2 | 512059422 | FRONT ENGINE MOUNT - Call your local BRP dealership |
| 3 | 512059425 | FRONT ENGINE SUPPORT - Call your local BRP dealership |
| 4 | 234001410 | Flat Washer 10 mm |
| 5 | 234100602 | WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership |
| 6 | 205003544 | Socket Screw M10 X 35 |
| 7 | 512059691 | Rubber Mount |
| 8 | 234001410 | Flat Washer 10 mm |
| 9 | 234100602 | WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership |
| 10 | 207103044 | Hex. Screw M10 X 30 |
| 11 | 512059315 | REAR ENGINE SUPPORT - Call your local BRP dealership |
| 12 | 512056700 | Lock Washer |
| 13 | 234100602 | WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership |
| 14 | 207103044 | Hex. Screw M10 X 30 |
| 15 | 512059316 | Rubber Mount |
| 16 | 233201414 | Hex. Flange Elastic Nut M10 |
| 17 | 512059710 | STOPPER - Call your local BRP dealership |
| 18 | 512059624 | Handle Ass’Y |
| 19 | 512059489 | THROTTLE HOUSING - Call your local BRP dealership |
| 20 | 414438700 | Lever Pin |
| 21 | 234051600 | Flat Washer M5, Stainless This part replaces 414438900. |
| 22 | 414439000 | Circlip |
| 23 | 414440800 | Socket Set Screw M8 X 10 |
| 24 | 515177362 | Emergency Stop Switch This part replaces 512059751. |
| 25 | 572100901 | Switch Cover |
| 26 | 512059349 | THROTTLE CABLE - Call your local BRP dealership |
| 27 | 414274500 | Circlip |
| 28 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 29 | 420664620 | Electronic Module |
| 30 | 518323189 | Electronic Module Support |
| 31 | 210261250 | Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 32 | 205002544 | Socket Head Screw M10 X 25 |
| 33 | 207661644 | Hex. Flange Screw M6 X 16 |
