Home / BRP / Can-Am ATV / 2024 / 009 - ATV - CE - Outlander 500/700 Series / 001 - Outlander Max 500 4X4 - CE, 2024 / CE - Outlander Max 500 4X4 - 1VRD - DPS Package - Granite Grey, 2024 0001VRD00 / 04- Drive - Rear Wheels

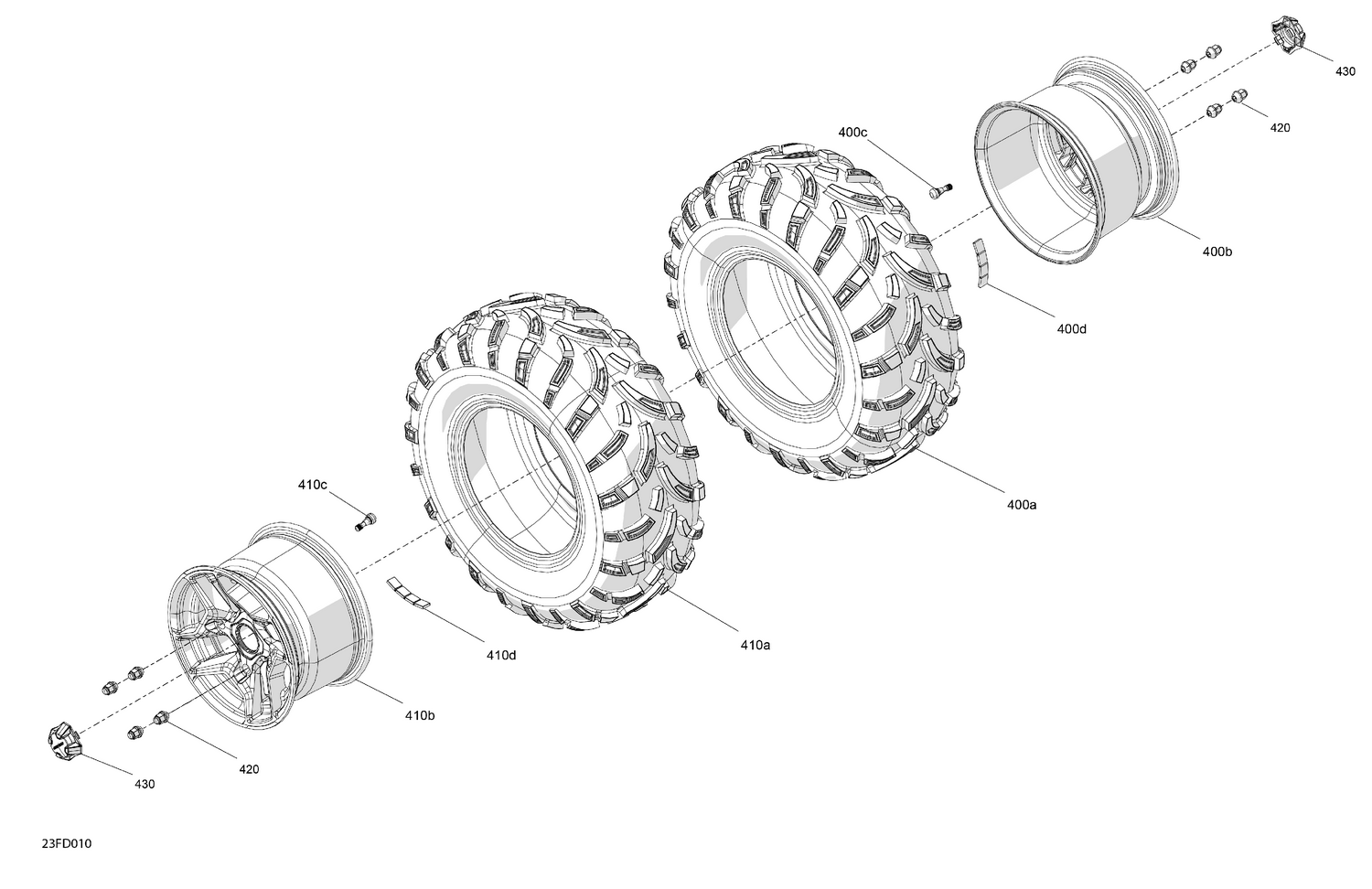

04- Drive - Rear Wheels

04- Drive - Rear Wheels

Parts (5)

RefPart NumberDescription
400a 705503585 Tire 25 X 10 R12
400c 705402595 Tire Valve Ass'y
410a 705503585 Tire 25 X 10 R12
410c 705402595 Tire Valve Ass'y
420 250100184 Black, Wheel Nut M10 X 1.25
