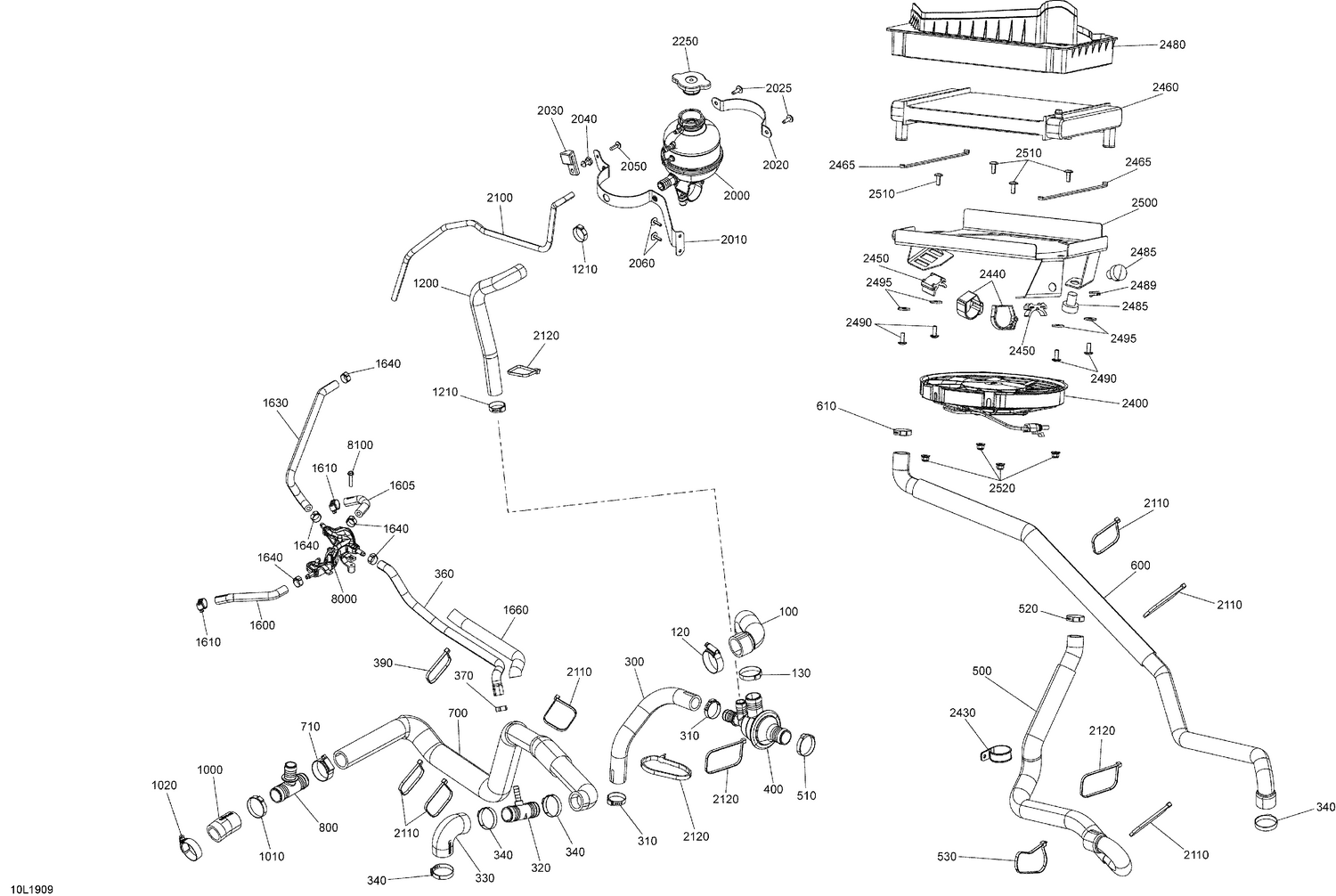

01- Cooling Commander - 600 E-TEC
Parts (58)
| Ref | Part Number | Description |
|---|---|---|
| 100 | 509000595 | Engine Outlet Hose |
| 120 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 130 | 509000181 | Oetiker Gear Clamp |
| 300 | 509000523 | Bypass Hose |
| 310 | 293650099 | Crimp Clamp |
| 320 | 509000510 | T-Fitting |
| 330 | 509001066 | Radiator Hose |
| 340 | 509000529 | Oetiker Gear Clamp, 36.5-706R |
| 345 | 509000181 | Oetiker Gear Clamp |
| 360 | 509000906 | Bleeder Hose |
| 370 | 293650047 | Crimp Clamp, 15.3-706R |
| 390 | 414115200 | Tie-Rap 180 mm |
| 400 | 509000499 | Thermostat Housing |
| 500 | 509000983 | Thermostat Outlet Hose |
| 510 | 509000181 | Oetiker Gear Clamp |
| 520 | 293650099 | Crimp Clamp |
| 530 | 414115200 | Tie-Rap 180 mm |
| 600 | 509000994 | Hose |
| 610 | 293650099 | Crimp Clamp |
| 700 | 509000992 | Radiator Hose |
| 710 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 800 | 509000372 | T-Fitting |
| 1000 | 509001067 | Engine Inlet Hose |
| 1010 | 509000181 | Oetiker Gear Clamp |
| 1020 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 1200 | 509000736 | Filling Hose |
| 1210 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
| 1600 | 509000818 | Bleeder Hose |
| 1605 | 509000819 | Bleeder Hose |
| 1610 | 293650170 | Tridon Gear Clamp |
| 1630 | 509000998 | Hose |
| 1640 | 293650046 | Oetiker Clamp |
| 1660 | 415080000 | Tubing 16 mm |
| 2000 | 509000421 | Coolant Tank |
| 2010 | 509000852 | Reservoir support |
| 2020 | 509000608 | Support |
| 2025 | 250000676 | Forming Screw M5 x 16 |
| 2030 | 509000609 | Support |
| 2040 | 517303439 | Knob |
| 2050 | 250000720 | Torx Screw K50 X 16 |
| 2060 | 250000725 | Screw M4 X 16 |
| 2100 | 276000048 | Hose 6 mm |
| 2250 | 509000180 | Radiator Pressure Cap |
| 2400 | 509000838 | Cooling Fan |
| 2430 | 27011 | Clamp With Rubber |
| 2440 | 508000820 | Velcro-Strip |
| 2450 | 508000822 | Bumper |
| 2460 | 509000980 | Radiator |
| 2465 | 509000986 | Rubber Strip |
| 2480 | 509000985 | Deflector |
| 2485 | 570044700 | Rubber Bumper |
| 2489 | 710000992 | Clip |
| 2490 | 250000717 | Torx Head Screw M6 X 16 |
| 2495 | 224061201 | Flat Washer |
| 2500 | 509000984 | Support |
| 2510 | 250000717 | Torx Head Screw M6 X 16 |
| 2520 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 8000 | 509000803 | Bleed Collector |
