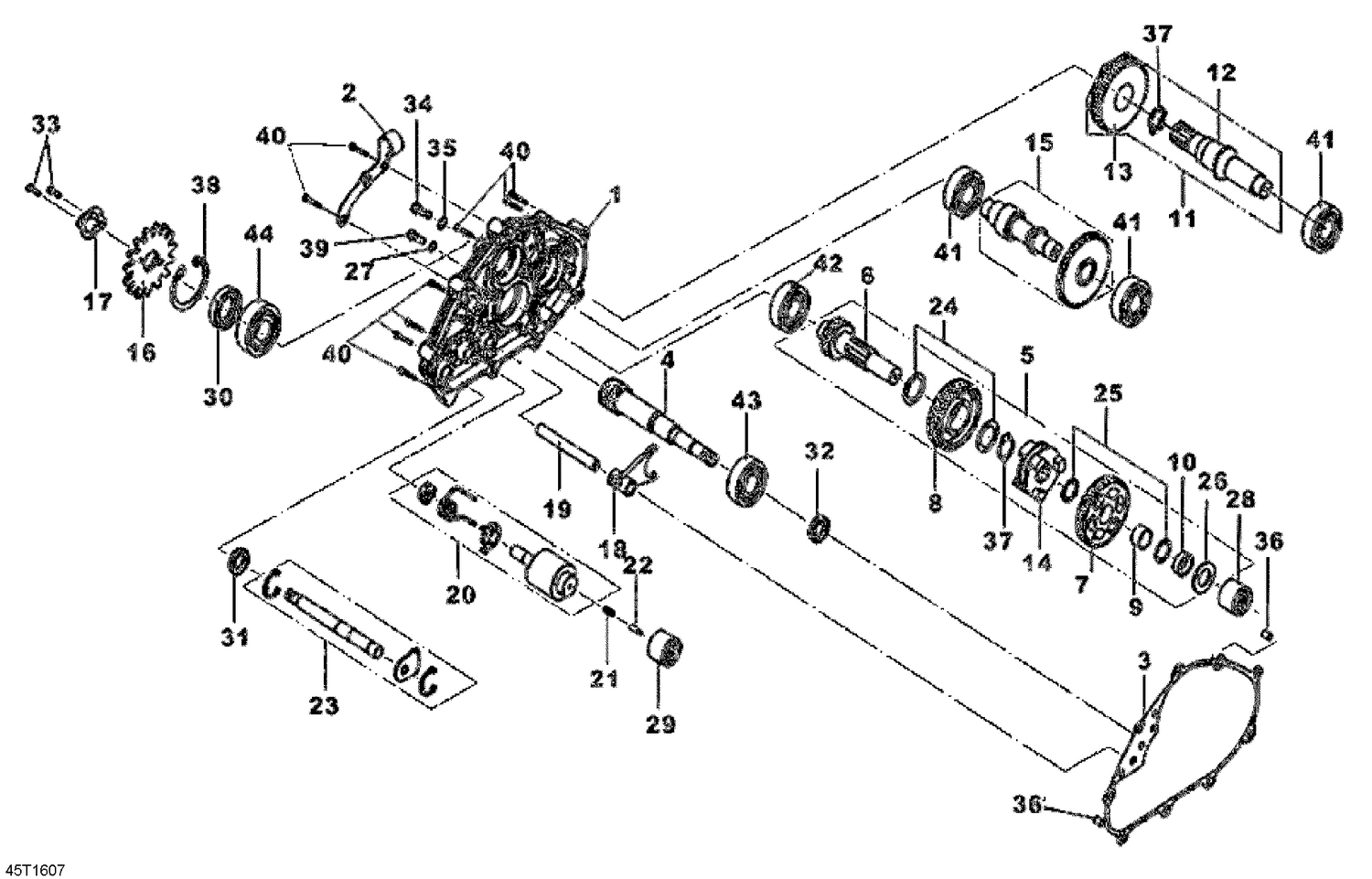

05- Gear Box
Parts (43)
| Ref | Part Number | Description |
|---|---|---|
| 1 | S21200RB1010 | Transmission Case |
| 2 | S21201RB1000 | Inner Cover Stay |
| 3 | S21395RB1000 | Cover Transmission Gasket |
| 4 | S23411RB1000 | Drive Shaft |
| 5 | S23420RB1000 | Counter Shaft Ass'y |
| 6 | NASP/NDPR | Not Available As Spare Parts |
| 7 | NASP/NDPR | Not Available As Spare Parts |
| 8 | NASP/NDPR | Not Available As Spare Parts |
| 9 | NASP/NDPR | Not Available As Spare Parts |
| 10 | NASP/NDPR | Not Available As Spare Parts |
| 11 | S23430RCA010 | Final Shaft Ass'y |
| 12 | NASP/NDPR | Not Available As Spare Parts |
| 13 | NASP/NDPR | Not Available As Spare Parts |
| 14 | NASP/NDPR | Not Available As Spare Parts |
| 15 | S23500RB1000 | Reverse Shaft Ass'y |
| 16 | S23800RB1000 | Drive Sprocket |
| 17 | S23801RB1000 | Drive Sprocket Fixing Plate |
| 18 | S24211RB1000 | Shift Fork |
| 19 | S24241RB1000 | Shift Fork Shaft |
| 20 | S24300RB1000 | Shift Drum Ass'y |
| 21 | S24319R02000 | Gear Indication Spg |
| 22 | S24323R02000 | Gear Indication |
| 23 | S24610RB1000 | Gear Shift Spindle Ass'y |
| 24 | NASP/NDPR | Not Available As Spare Parts |
| 25 | NASP/NDPR | Not Available As Spare Parts |
| 26 | NASP/NDPR | Not Available As Spare Parts |
| 27 | S90474M9Q000 | Washer |
| 28 | S91003RB1000 | Needle Bearing |
| 29 | S91103X17000 | Needle Bearing |
| 30 | S91209RCA000 | Oil Seal This part replaces S91209RCA0000. |
| 31 | S91202RB1000 | Oil Seal |
| 32 | S91204HMA000 | Oil Seal |
| 33 | S92101060100H | Hex. Bolt |
| 34 | S9280012000 | Drain Plug Screw |
| 35 | S9410912000 | Washer 12 mm |
| 36 | S90703M8Q000 | Dowel Pin This part replaces S9430110140. |
| 37 | NASP/NDPR | Not Available As Spare Parts |
| 38 | S9452052000 | Circlip |
| 39 | S957010801200 | Flanged Bolt M8 X 12 |
| 40 | S957010804000 | Flanged Bolt M8 X 40 |
| 41 | S961006204010 | Ball Bearing |
| 42 | S961006304010 | Ball Bearing |
| 43 | S961006305300 | Ball Bearing |
