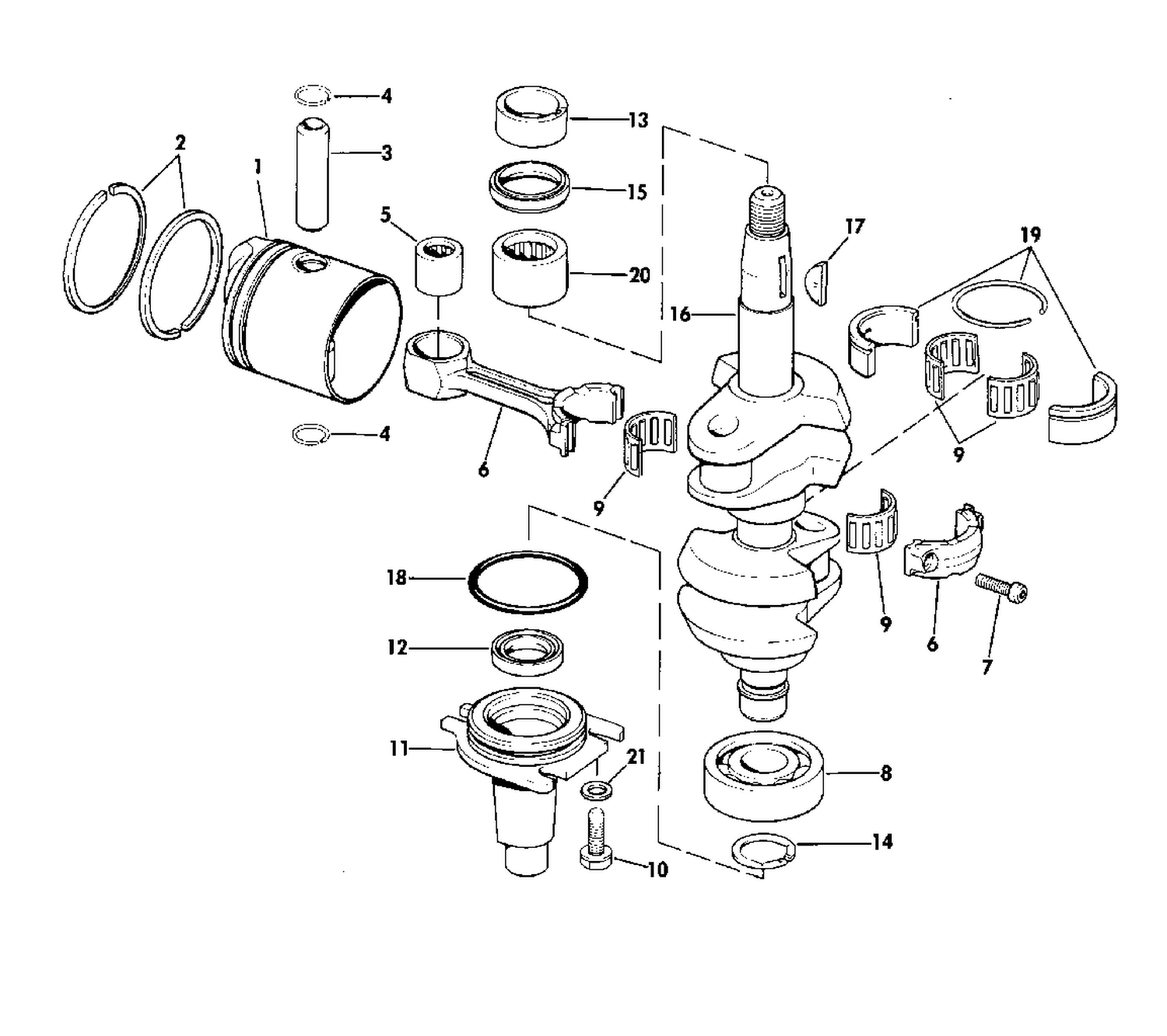

| Ref | Part Number | Description |
|---|
| 1 |
0386012 |
PISTON, Standard |
| 1 |
0386013 |
PISTON, .030 O. S. |
| 2 |
0386279 |
RING SET, Standard |
| 2 |
0386280 |
RING SET, .030 O. S. |
| 3 |
0318672 |
WRIST PIN |
| 4 |
0318669 |
RETAINING RING |
| 6 |
0396607 |
CONNECTING ROD ASSEMBLY This part replaces 0385964. |
| 8 |
0385173 |
BALL BEARING, Prop. shaft |
| 9 |
0395401 |
BEARING SET This part replaces 0386613. |
| 10 |
0300646 |
VIS, ancrage |
| 11 |
0394327 |
CRANK CASE HEAD This part replaces 0385971. |
| 13 |
0318929 |
CAM, Magneto |
| 14 |
0318641 |
RETAINING RING, Ball bearing |
| 16 |
0318678 |
CRANKSHAFT |
| 17 |
0318931 |
KET, Crankshaft |
| 18 |
0308458 |
JOINT TORIQUE, tête carter-moteur |
| 19 |
0318863 |
LINERS, Center bearing |
| 20 |
0386008 |
BEARING ASSEMBLY CRANKSHAFT |
