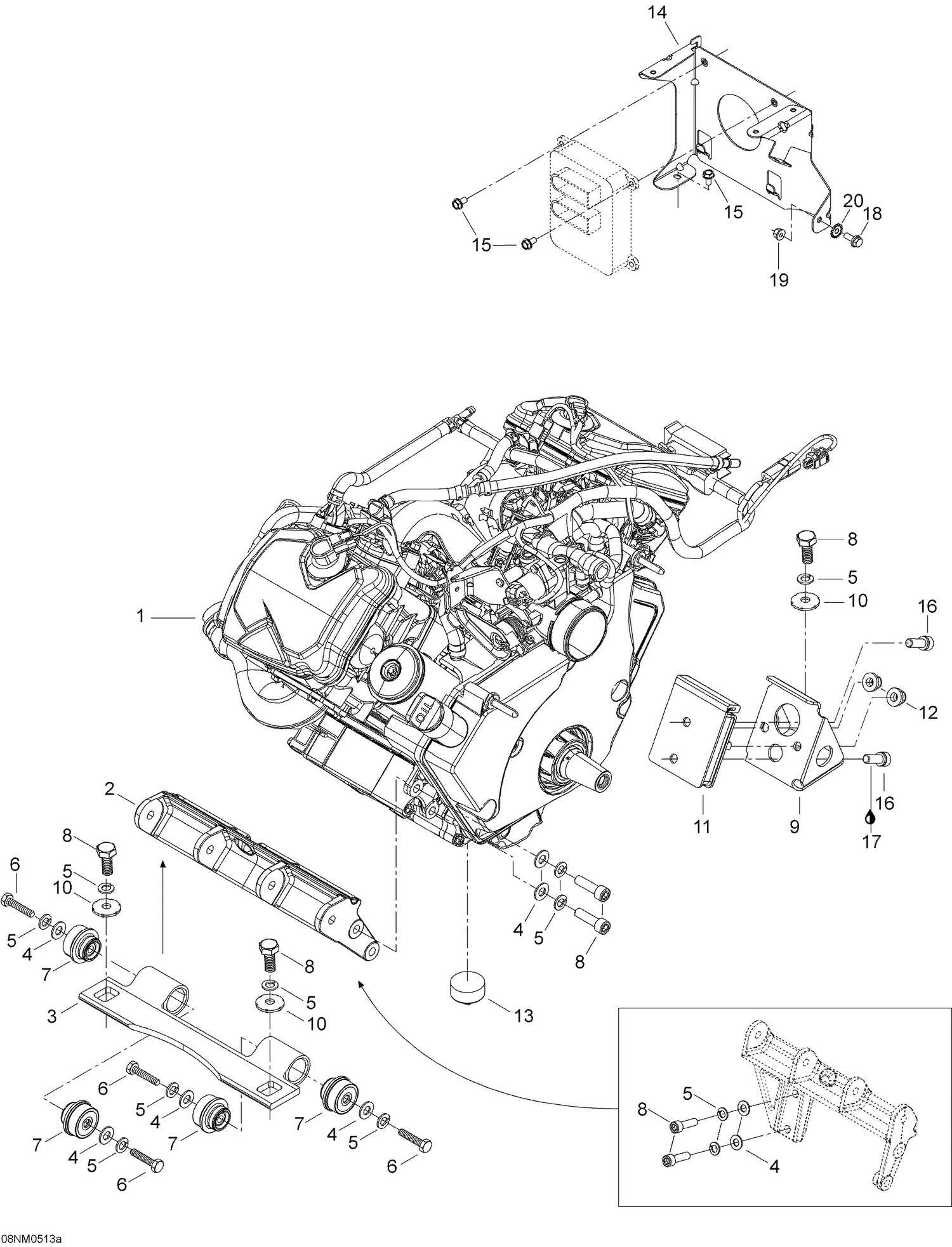

| Ref | Part Number | Description |
|---|
| 1 |
400101115 |
Engine |
| 2 |
512059422 |
FRONT ENGINE MOUNT - Call your local BRP dealership |
| 3 |
512059425 |
FRONT ENGINE SUPPORT - Call your local BRP dealership |
| 4 |
20005 |
WASHER M10 - Call your local BRP dealership |
| 5 |
20113 |
Spring washer M10 |
| 6 |
205003544 |
Screw M10 x 35 |
| 7 |
512059691 |
Rubber mount |
| 8 |
40041 |
Screw M10 x 30 |
| 9 |
512059315 |
REAR ENGINE SUPPORT - Call your local BRP dealership |
| 10 |
512056700 |
Lock washer |
| 11 |
512059316 |
Rubber mount |
| 12 |
33074 |
NUT-FLANGE ELASTIC M10X1.5 (1=10pcs) - Call your local BRP dealership |
| 13 |
512059710 |
STOPPER - Call your local BRP dealership |
| 14 |
512059921 |
Support plate |
| 15 |
40327 |
Hex. screw M6 x 12 |
| 16 |
40053 |
Socket head screw M10 x 25 |
| 17 |
293800060 |
Liima Loctite 243, 10ml |
| 18 |
40029 |
Screw M5 x 16 |
| 19 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
