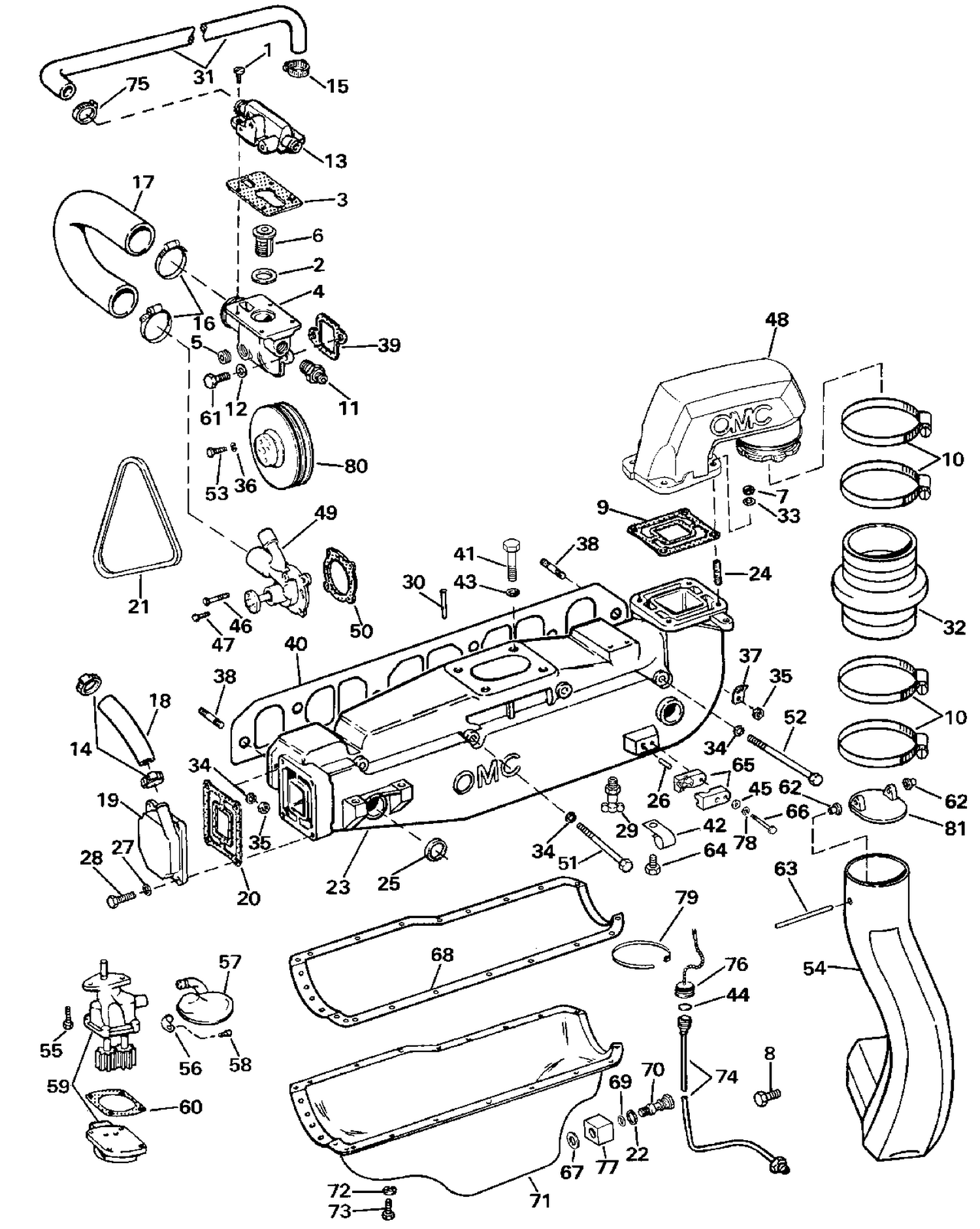

| Ref | Part Number | Description |
|---|
| 2 |
0313416 |
GASKET, Thermostat |
| 3 |
0314809 |
GASKET |
| 4 |
3854254 |
HOUSING & PLUG ASSY This part replaces 0985959. |
| 5 |
3850999 |
PLUG This part replaces 0913564. |
| 6 |
3853799 |
THERMOSTAT ASSY This part replaces 0982554. |
| 9 |
3850495 |
GASKET, Elbow to manifold This part replaces 0908013. |
| 10 |
3852604 |
CLAMP, Exhaust This part replaces 0912667. |
| 11 |
0171960 |
SENDER, Water temperature |
| 13 |
0910360 |
HOUSING ASSEMBLY, Upper |
| 14 |
0912627 |
CLAMP |
| 15 |
0912627 |
CLAMP |
| 17 |
0311075 |
HOSE |
| 18 |
0910305 |
HOSE, Inlet |
| 19 |
0910384 |
CAP, Manifold |
| 20 |
0311121 |
GASKET, Cap to manifold |
| 21 |
0311606 |
BELT |
| 21 |
0910343 |
BELT |
| 23 |
0984054 |
MANIFOLD & STUD ASSY |
| 24 |
0310870 |
STUD |
| 25 |
0315712 |
CORE PLUG |
| 26 |
0907799 |
PIN |
| 28 |
0552940 |
SCREW, Stern bracket |
| 29 |
0379957 |
PETCHOCK ASSY, Water drain |
| 30 |
0980669 |
TUBE SERVICE KIT |
| 31 |
0911974 |
HOSE, Cooler to thermo. hsg. |
| 31 |
0913489 |
HOSE, Thermostat to gimbal |
| 32 |
3852741 |
HOSE, Exhaust This part replaces 0913591. |
| 34 |
0120177 |
L'WASHER, Alternator to brkt |
| 37 |
0311111 |
LIFT BRACKET |
| 38 |
3852093 |
STUD, Lift bracket This part replaces 0310968. |
| 39 |
0311069 |
GASKET, Housing |
| 40 |
0912164 |
GASKET, Manifold to head |
| 41 |
0913209 |
SCREW, Carburetor |
| 42 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309041. |
| 44 |
3852426 |
SEAL, Cap oil drain tube This part replaces 0907845. |
| 46 |
0306501 |
BOLT, Water pump |
| 47 |
0306322 |
BOLT, Water pump |
| 48 |
3850799 |
ELBOW, Exhaust This part replaces 0910380. |
| 49 |
3858340 |
Pump Ay This part replaces 0984360. |
| 50 |
3853342 |
GASKET, Water pump This part replaces 0311851. |
| 51 |
0201809 |
SCEW,Starter to cylinder |
| 52 |
0907891 |
SCREW, Exh mfld, rear |
| 53 |
0306861 |
SCREW |
| 54 |
0985817 |
EXHAUST PIPE |
| 55 |
3853173 |
BOLT, Camshaft sprocket This part replaces 0914325. |
| 56 |
3853133 |
SUPPORT ASSY This part replaces 0914324. |
| 57 |
3854014 |
PIPE & SCREEN ASSY This part replaces 0985105. |
| 58 |
3853219 |
SCREW, Suction pipe bracket This part replaces 0914438. |
| 59 |
3853843 |
OIL PUMP This part replaces 0985085. |
| 60 |
3852658 |
GASKET, Pump cover This part replaces 0912958. |
| 62 |
3853566 |
BUSHING, Pin This part replaces 0913672. |
| 63 |
0913663 |
PIN EXHAUST FLAP |
| 64 |
0313117 |
SCR,Clamp,eng cable |
| 65 |
0913250 |
ANCHOR BLOCK |
| 66 |
0324982 |
SCREW |
| 67 |
3851981 |
GASKET, Fitting to oil pan This part replaces 0913365. |
| 68 |
0913278 |
GASKET, Oil pan |
| 70 |
3852694 |
RETAINER, Oil drain This part replaces 0913363. |
| 71 |
0313647 |
OIL PAN |
| 73 |
3853171 |
SCREW, Oil pan, front This part replaces 0914376. |
| 74 |
0985598 |
OIL LINE ASSY |
| 75 |
0979803 |
CLAMP |
| 76 |
3853783 |
CAP & BEAD CHAIN ASSY This part replaces 0980068. |
| 77 |
0913364 |
FITTING, Oil drain |
| 79 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 80 |
0384104 |
PULLEY ASSEMBLY This part replaces 0383932. |
