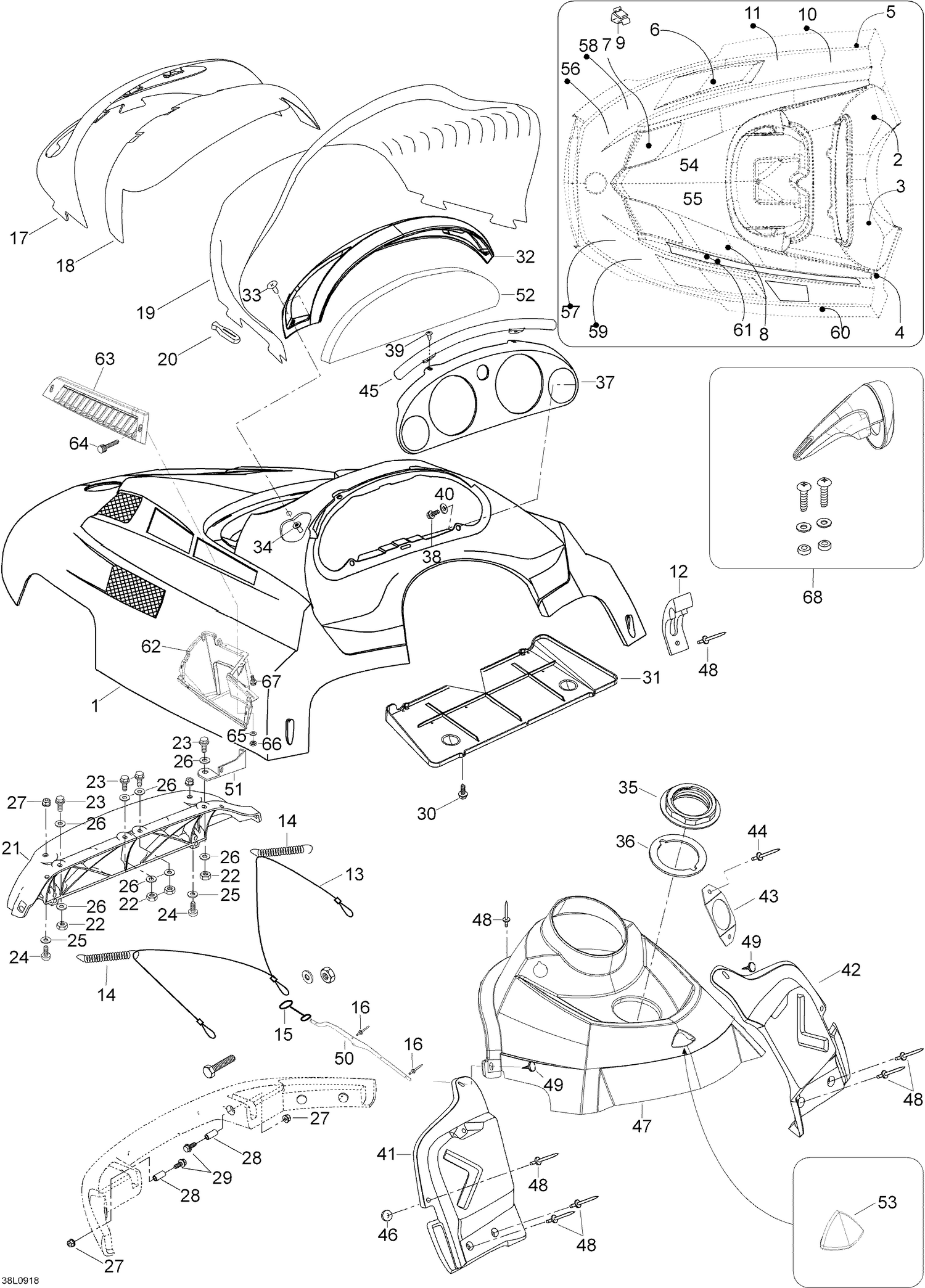

| Ref | Part Number | Description |
|---|
| 2 |
605350906 |
ISOLATION REAR LH - Call your local BRP dealership |
| 3 |
605350907 |
ISOLATION REAR RH - Call your local BRP dealership |
| 4 |
605350908 |
ISOLATION REAR RH - Call your local BRP dealership |
| 5 |
605350909 |
LOWER ISOLATION REAR LH - Call your local BRP dealership |
| 6 |
605350923 |
LH UPPER GRILL - Call your local BRP dealership |
| 6 |
605350924 |
RH UPPER GRILL - Call your local BRP dealership |
| 7 |
605350925 |
LH LOWER GRILL - Call your local BRP dealership |
| 7 |
605350926 |
RH LOWER GRILL - Call your local BRP dealership |
| 8 |
605350927 |
LH GRILL - Call your local BRP dealership |
| 9 |
414227300 |
Clip |
| 10 |
605350910 |
UPPER ISOLATION REAR RH - Call your local BRP dealership |
| 11 |
605350911 |
ISOLATION REAR CENTER LH - Call your local BRP dealership |
| 12 |
517302152 |
Latch |
| 13 |
605351372 |
Retainer cable |
| 14 |
5442675 |
Spring |
| 15 |
5442870 |
Retainer Cable Clip - Call your local BRP dealership |
| 16 |
36002 |
Rivet |
| 17 |
517302158 |
HEADLAMP MOULDING, DEEP BLACK - Call your local BRP dealership |
| 18 |
517302003 |
WINDSHIELD SUPPORT - Call your local BRP dealership |
| 19 |
605152073 |
Windshield |
| 20 |
570023800 |
Latch |
| 21 |
517302631 |
Hinge half |
| 22 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 23 |
40030 |
Hex, screw M6 x 20 |
| 24 |
40381 |
Socket head screw M6 x 20 |
| 25 |
20117 |
Washer |
| 26 |
234062410 |
Flat Washer 6 mm This part replaces 20009. |
| 27 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 28 |
517302179 |
BUSHING - Call your local BRP dealership |
| 29 |
40003 |
Hex. screw M6 x 35 |
| 30 |
243141630 |
Screw M4.8 x 16 |
| 31 |
605354612 |
INTAKE PLATE - Call your local BRP dealership |
| 32 |
605151832 |
COVER - Call your local BRP dealership |
| 33 |
40061 |
Handle Screw, low, M4 x 18 Black(1=10pcs - Call your local BRP dealership |
| 34 |
28051 |
Well-nut |
| 35 |
517302043 |
CONSOLE NUT - Call your local BRP dealership |
| 36 |
5447116 |
Gasket - Call your local BRP dealership |
| 37 |
605354134 |
INDICATOR SUPPORT - Call your local BRP dealership |
| 38 |
40611 |
Self tapping screw K40 x 10 |
| 39 |
40888 |
Wronic-screw 4,2 x 19 |
| 40 |
20039 |
Washer |
| 41 |
605251384 |
LH CONSOLE - Call your local BRP dealership |
| 42 |
605251922 |
RH CONSOLE - Call your local BRP dealership |
| 43 |
605352405 |
Support, R.H. Console |
| 44 |
36005 |
Rivet |
| 45 |
605352586 |
SUPPORT PLATE - Call your local BRP dealership |
| 46 |
20008 |
Washer A5,3 |
| 47 |
605252075 |
Middle console |
| 48 |
36037 |
Rivet |
| 49 |
414644300 |
Black, Dart |
| 50 |
605452657 |
BRACKET - Call your local BRP dealership |
| 51 |
605351463 |
LH HOOD SUPPORT - Call your local BRP dealership |
| 51 |
605351464 |
RH HOOD SUPPORT - Call your local BRP dealership |
| 52 |
605352583 |
FILTER - Call your local BRP dealership |
| 53 |
605453896 |
PLUG - Call your local BRP dealership |
| 54 |
605350912 |
ISOLATION CENTER LH - Call your local BRP dealership |
| 55 |
605350913 |
ISOLATION CENTER RH - Call your local BRP dealership |
| 56 |
Not |
Available As Spare Part - Isolation front corner LH |
| 57 |
Not |
Available As Spare Part - Isolation front corner RH |
| 58 |
Not |
Available As Spare Part - Isolation front L.H. |
| 59 |
Not |
Available As Spare Part - Isolation front R.H. |
| 60 |
Not |
Available As Spare Part - R.H. reflective sheet |
| 61 |
44001 |
REFLECTIVE SHEET (1M X 1M) - Call your local BRP dealership |
| 62 |
605354585 |
Cooling channel - Call your local BRP dealership |
| 63 |
605354586 |
Cooling channel - Call your local BRP dealership |
| 64 |
250000724 |
Torx Screw M5 X 20 This part replaces 250000130. |
| 65 |
20008 |
Washer A5,3 |
| 66 |
33009 |
Elastic stop nut M5 |
| 67 |
40847 |
SCREW 4 - Call your local BRP dealership |
