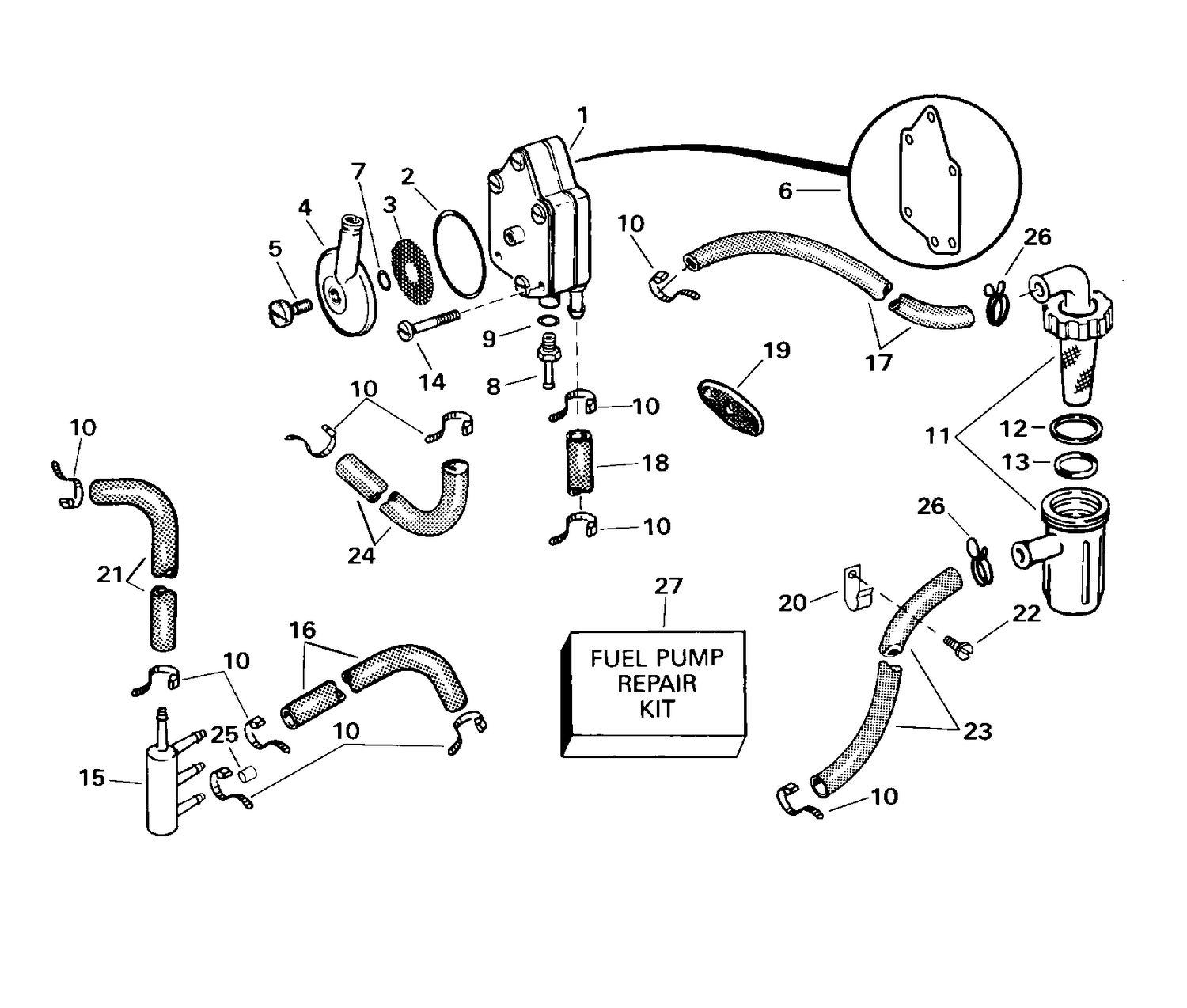

| Ref | Part Number | Description |
|---|
| 1 |
0438557 |
FUEL PUMP Assy |
| 10 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 11 |
0397715 |
FILTER, Fuel |
| 15 |
5004610 |
FITTING, Fuel manifold This part replaces 0395540. |
| 16 |
HOSE, |
Manifold to low. carb., 3½ in. (90mm) |
| 17 |
0333407 |
FLEXIBLE, filtre à carburant vers pompe à carburant |
| 18 |
HOSE, |
Pulse 16 in. (406mm) |
| 19 |
0303615 |
GASKET |
| 20 |
0310947 |
CLAMP |
| 21 |
HOSE, |
Manifold to upper carb., 3½ in. (90mm) |
| 23 |
0336225 |
FLEXIBLE, connecteur vers filtre |
| 25 |
0333264 |
CAP, Fuel manifold |
| 26 |
0339278 |
COLLIER DE SERRAGE |
