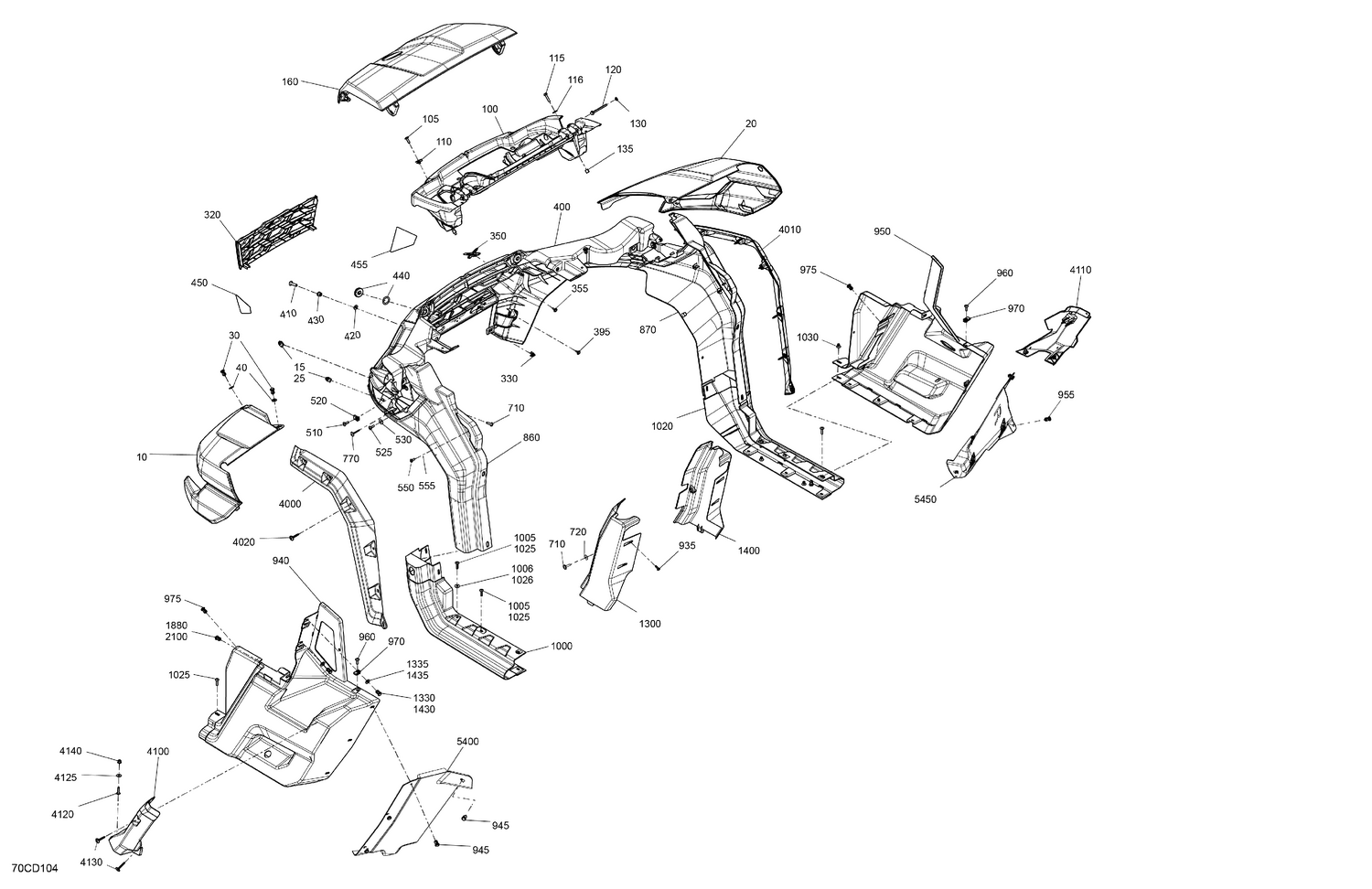

| Ref | Part Number | Description |
|---|
| 10 |
705018173 |
Wildland Camo, LH Front Fender |
| 15 |
250100198 |
Panel Nut M6 X 1.0 |
| 20 |
705018174 |
Wildland Camo, RH Front Fender |
| 25 |
250100198 |
Panel Nut M6 X 1.0 |
| 30 |
293150230 |
Tuflok Plastic Rivet |
| 40 |
503192494 |
Washer |
| 100 |
705013766 |
Multi Purpose Support |
| 105 |
250000722 |
Torx Screw M6 X 20 |
| 110 |
250100198 |
Panel Nut M6 X 1.0 |
| 115 |
210263050 |
Hex. Flange Screw M6 X 30 |
| 116 |
234062670 |
Stainless Steel Flat Washer |
| 120 |
207667554 |
Hex. Flange Screw M6 X 75 |
| 130 |
732610072 |
Push Nut |
| 135 |
293900125 |
Bushing |
| 160 |
705018175 |
Wildland Camo, Front Hood |
| 320 |
705013590 |
Grille |
| 330 |
517306478 |
Clip |
| 350 |
705017646 |
Emblem X |
| 355 |
250000725 |
Screw M4 X 16 |
| 395 |
250000725 |
Screw M4 X 16 |
| 400 |
705013591 |
Deep Black, Front Fascia |
| 410 |
250000886 |
Torx Screw M8 X 30 |
| 420 |
503192494 |
Washer |
| 430 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 440 |
705010718 |
Grommet |
| 450 |
704905072 |
LH Front Reflector |
| 455 |
704905073 |
RH Front Reflector |
| 510 |
250000722 |
Torx Screw M6 X 20 |
| 520 |
250100198 |
Panel Nut M6 X 1.0 |
| 525 |
250000722 |
Torx Screw M6 X 20 |
| 530 |
234062670 |
Stainless Steel Flat Washer |
| 550 |
250000720 |
Torx Screw K50 X 16 |
| 555 |
234051670 |
Flat Washer M5 |
| 710 |
250000807 |
Torx Truss Screw M6 X 25 |
| 720 |
234062670 |
Stainless Steel Flat Washer |
| 860 |
705008152 |
LH Front Lateral Panel |
| 870 |
705008153 |
RH Front Lateral Panel |
| 935 |
250000720 |
Torx Screw K50 X 16 |
| 940 |
705013658 |
Deep Black, LH Rear Body Panel |
| 945 |
293150230 |
Tuflok Plastic Rivet |
| 950 |
705013659 |
Deep Black, RH Rear Body Panel |
| 955 |
293150230 |
Tuflok Plastic Rivet |
| 960 |
250000722 |
Torx Screw M6 X 20 |
| 970 |
250100198 |
Panel Nut M6 X 1.0 |
| 975 |
293150230 |
Tuflok Plastic Rivet |
| 1000 |
705019037 |
Deep Black, LH Central Panel |
| 1005 |
250000807 |
Torx Truss Screw M6 X 25 |
| 1006 |
234062670 |
Stainless Steel Flat Washer |
| 1020 |
705019038 |
Deep Black, RH Central Panel |
| 1025 |
250000807 |
Torx Truss Screw M6 X 25 |
| 1026 |
234062670 |
Stainless Steel Flat Washer |
| 1030 |
293150308 |
Black, Ornit Rivet 3/16 X ,675 This part replaces 293150308. |
| 1300 |
715006542 |
LH Rear Cage Cover Kit |
| 1330 |
293150230 |
Tuflok Plastic Rivet |
| 1335 |
503192494 |
Washer |
| 1400 |
715006543 |
RH Rear Cage Cover Kit |
| 1430 |
293150230 |
Tuflok Plastic Rivet |
| 1435 |
503192494 |
Washer |
| 1880 |
293150230 |
Tuflok Plastic Rivet |
| 2100 |
293150230 |
Tuflok Plastic Rivet |
| 4000 |
705011518 |
LH Front Fender Flare |
| 4010 |
705011519 |
RH Front Fender Flare |
| 4020 |
250000840 |
Torx Truss Screw Head PT.K50 X 40 |
| 4100 |
705011522 |
LH Central Fender Flare |
| 4110 |
705011523 |
RH Center Fender Flare |
| 4120 |
250000758 |
Torx Screw M6 X 25 |
| 4125 |
234062670 |
Stainless Steel Flat Washer |
| 4130 |
250000840 |
Torx Truss Screw Head PT.K50 X 40 |
| 4140 |
233261494 |
Hex. Flange Elastic Nut M6 |
| 5400 |
705016336 |
LH Rear Deflector |
| 5450 |
705016337 |
RH Rear Deflector |
