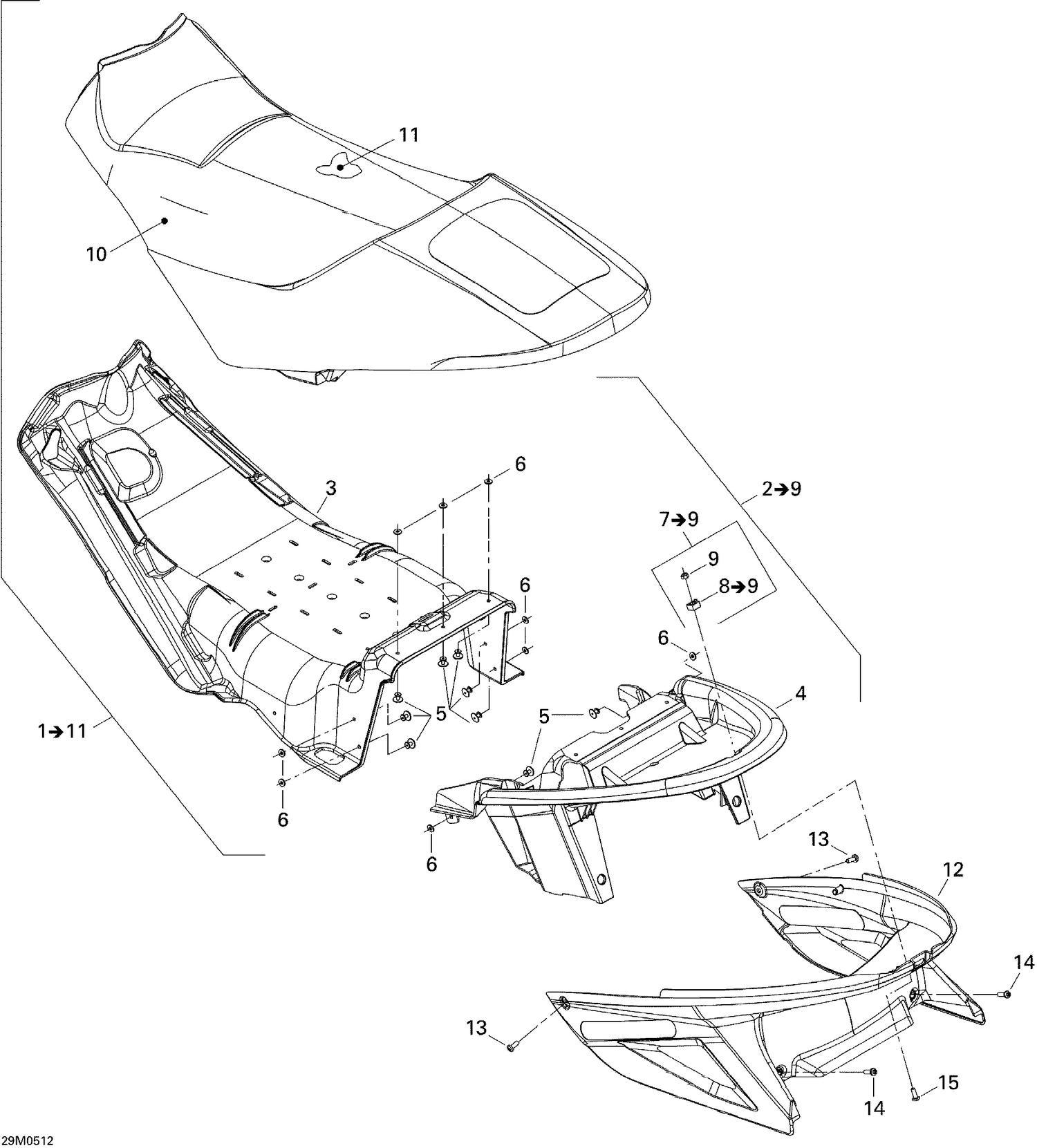

09- Seat
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 3 | Not | Available As Spare Part - Seat Base |
| 4 | 510004214 | Seat Base Ass'y |
| 5 | 293150104 | Pop Rivet 3/16" This part replaces 390409600. |
| 6 | 517225900 | Flat Washer |
| 9 | 232061600 | Hex. Nut M6 |
| 10 | 510004215 | Seat Cover |
| 11 | 510004351 | Foam |
| 12 | 510004213 | Deep Black, Trunk |
| 12 | 510004532 | Labrador Blue, Trunk |
| 13 | 250000721 | Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 14 | 250000722 | Torx Screw M6 X 20 This part replaces 250000128. |
