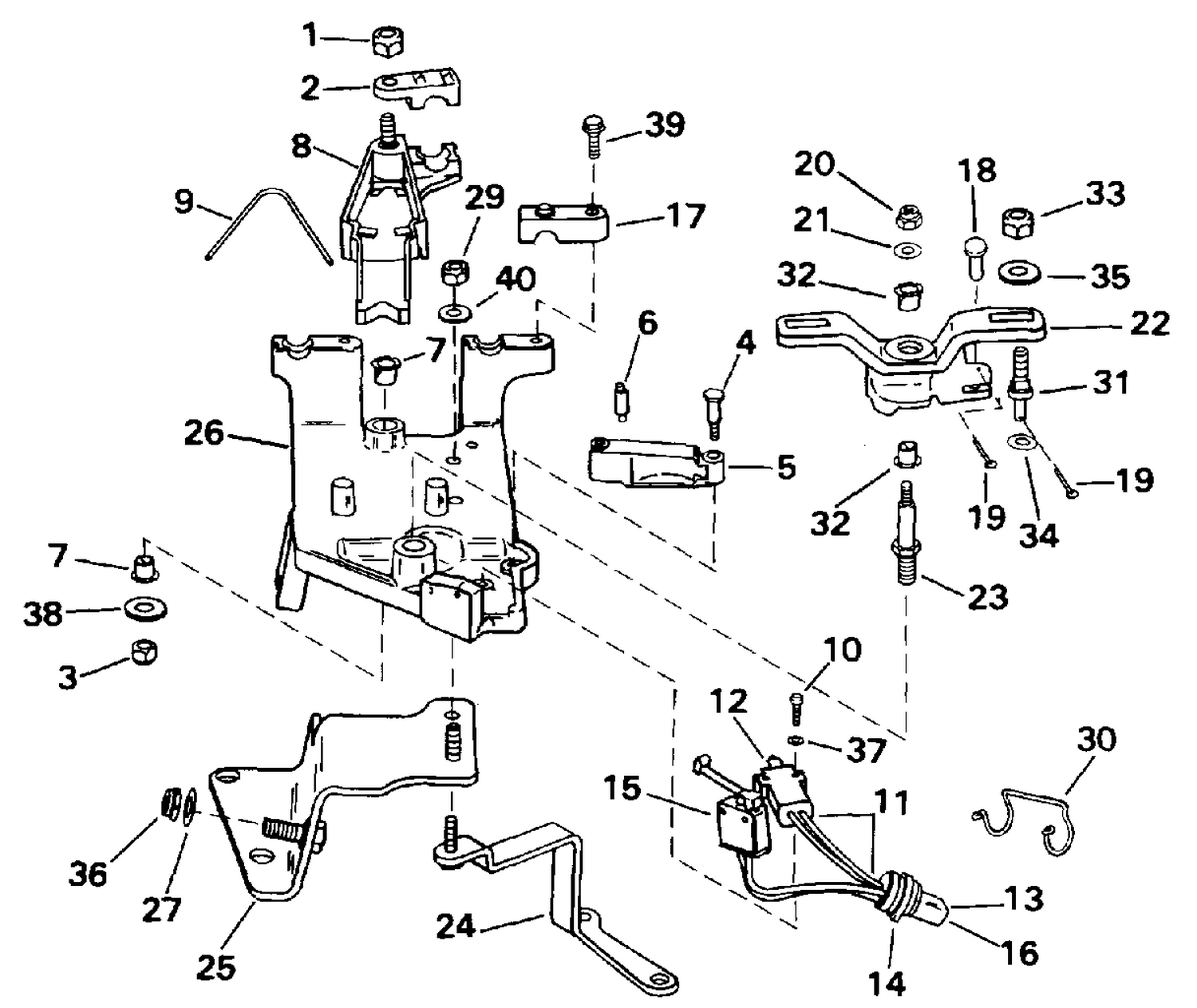

| Ref | Part Number | Description |
|---|
| 2 |
3853249 |
ANCHOR, Shift cable |
| 4 |
3853248 |
SCREW, Shift interrupter cam |
| 5 |
3853251 |
CAM, Shift switch |
| 6 |
3853247 |
ROLLER, Cam, shift interrupter |
| 8 |
3853250 |
HOUSING, Shift interrupter |
| 9 |
3853322 |
SPRING, Shift interrupter |
| 11 |
3854410 |
SWITCH & CONNECTOR |
| 12 |
3854432 |
SWITCH, Shift assist |
| 15 |
3854431 |
SWITCH, Neutral drive |
| 17 |
3852836 |
ANCHOR BLOCK |
| 18 |
3852835 |
PIN, Shift cable |
| 21 |
0328738 |
LOCKWASHER This part replaces 3852189. |
| 22 |
3853753 |
LEVER, Shift |
| 23 |
3853296 |
SHAFT, Shift lever |
| 24 |
3850951 |
BRACE & STUD ASSY. |
| 25 |
3850952 |
BRACKET & STUD ASSY. |
| 26 |
3854932 |
BRACKET, Shift This part replaces 3853754. |
| 27 |
3854504 |
WASHER, Support bracket |
| 30 |
0512743 |
DISPOSITIF DE RETENUE This part replaces 3852238. |
| 31 |
0916341 |
PIN, Shift cable This part replaces 3854740. |
| 33 |
3853758 |
NUT, Shift cable pin |
| 36 |
0320266 |
LOCKNUT, Cooler bracket This part replaces 3852161. |
| 38 |
0328738 |
LOCKWASHER This part replaces 3852189. |
