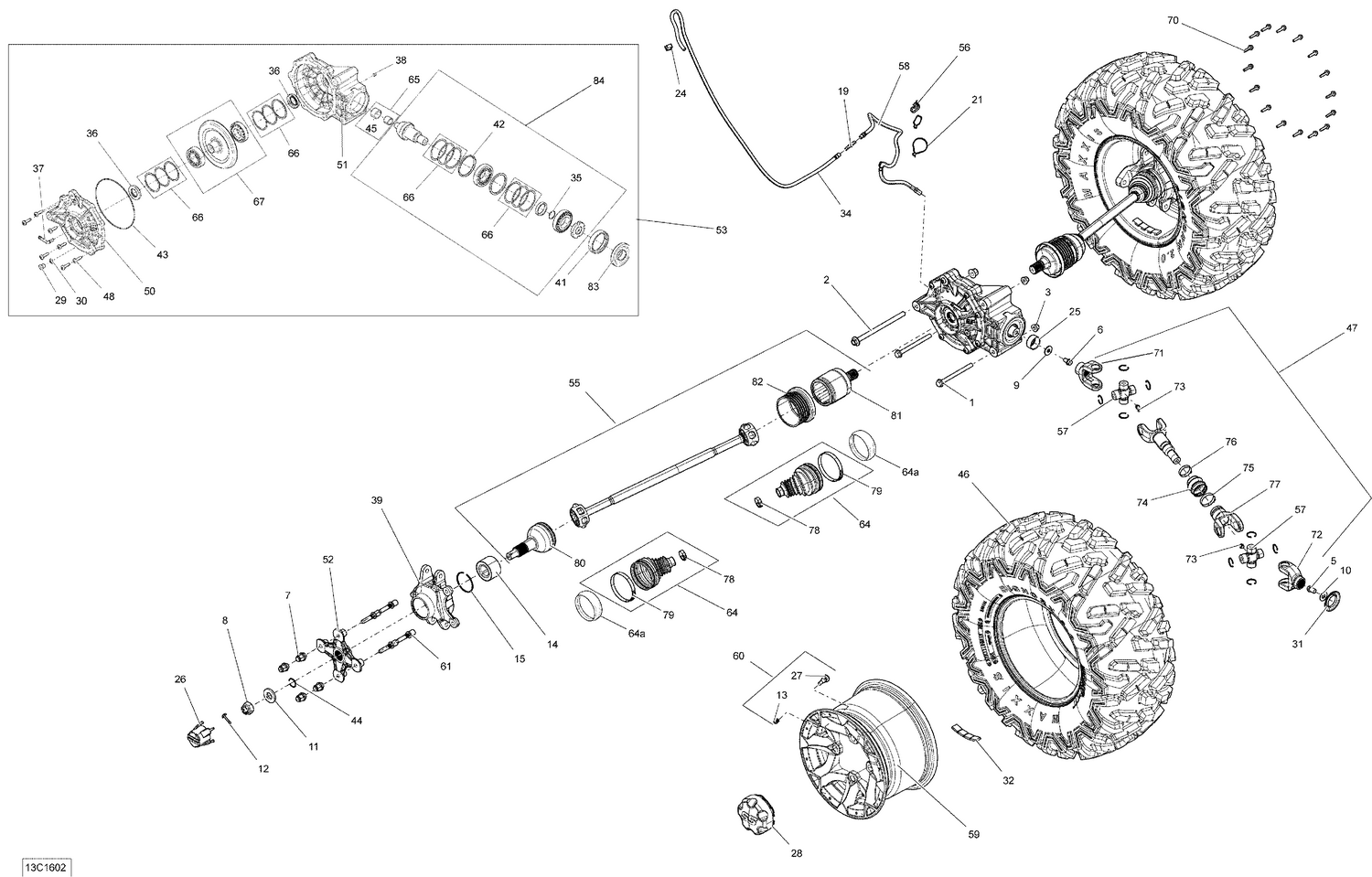

08- Rear Drive System
Parts (51)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 230602546 | Hex. Flange Screw M10 X 125 |
| 2 | 230629087 | HEX. FLANGED SCREW M12 X 190 - Call your local BRP dealership |
| 3 | 233201436 | Hex. Flange Elastic Nut M10 |
| 4 | 233221416 | Elastic Flange Nut M12 |
| 5 | 250001039 | Hex Flange Screw M12 X 16 This part replaces 250000359. |
| 6 | 250001044 | Hex. Flange Screw M10 X 16 S.GRIP This part replaces 250000615. |
| 7 | 250100184 | Black, Wheel Nut M10 X 1.25 This part replaces 250100100. |
| 8 | 250100193 | Castle Nut M20 This part replaces 250100161. |
| 9 | 250200014 | Flat Washer M10 |
| 10 | 250200102 | Flat Washer M12 |
| 11 | 250200170 | Conical Spring Washer M20 This part replaces 250200148. |
| 12 | 250400071 | Cotter Pin |
| 13 | 293000110 | Valve Cap |
| 14 | 293350150 | Ball Bearing This part replaces 293350040. |
| 15 | 293370019 | Circlip |
| 25 | 705400036 | Wear Ring |
| 27 | 705400193 | Rim Valve With Cap |
| 29 | 705500504 | Fill Level Plug |
| 30 | 705500506 | Copper Washer |
| 31 | 705501123 | Protector |
| 35 | 705501554 | O-Ring |
| 36 | 705501556 | Oil Seal |
| 37 | 705501584 | Breather Tube |
| 38 | 705501724 | Plug Drain |
| 39 | 705501730 | LH Rear Knuckle |
| 39 | 705501731 | RH Rear Knuckle |
| 41 | 705501740 | NUT - Call your local BRP dealership |
| 42 | 703500839 | Differential Shim Kit |
| 43 | 705501749 | Oil Seal |
| 44 | 705501781 | Circlip |
| 45 | 703500840 | Needle Bearing |
| 48 | 705502063 | Screw |
| 50 | 705502171 | REAR COVER - Call your local BRP dealership |
| 51 | 705502172 | PINION COVER - Call your local BRP dealership |
| 52 | 705502223 | Wheel Hub ( 29 Splines ) |
| 53 | 705502275 | Final Drive Unit |
| 56 | 710003168 | Dart Tie Rap 200MM |
| 58 | 219704388 | Was 293830177 Hose |
| 60 | 705400193 | Rim Valve With Cap |
| 61 | 250300060 | Wheel Stud This part replaces 250300051. |
| 65 | 703500840 | Needle Bearing This part replaces 703500869. |
| 66 | 703500839 | Differential Shim Kit |
| 67 | 703500868 | Gear Kit |
| 71 | 715900271 | Joint |
| 72 | 715900272 | Joint |
| 73 | 715900295 | Grease Fitting |
| 74 | 715900118 | Rubber Boot |
| 78 | 715900242 | Oetiker Clamp, 27.3 mm |
| 79 | 715900241 | Oetiker Clamp, 82.1 mm |
| 80 | 715900391 | CV Joint |
