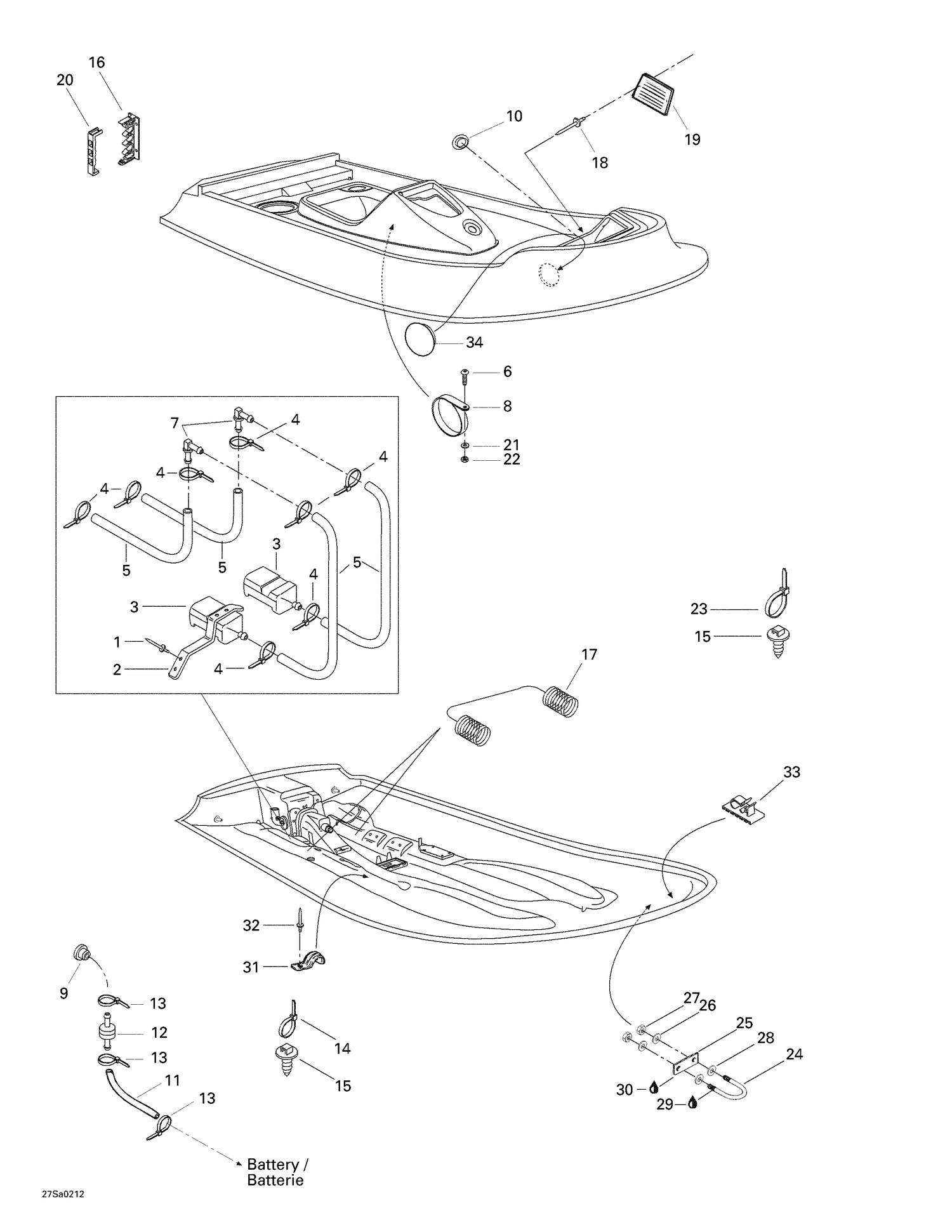

09- Body And Accessories 2
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 293150008 | Pop Rivet 3/16" This part replaces 293150011. |
| 2 | 292000392 | Spring Clip |
| 3 | 292000688 | Bailer Screen |
| 4 | 293750001 | Tie Wrap 94 mm |
| 5 | 219704412 | Polyurethane Hose, 8 Mm 3000Mm Long |
| 6 | 208452560 | Screw M5 x 25 |
| 7 | 293710057 | ELBOW FITTING 90 - Call your local BRP dealership |
| 8 | 204000064 | Clamp-Cable |
| 9 | 293720029 | Grommet |
| 10 | 293000030 | Hunky Cap |
| 11 | 219704360 | Hose 6 Mm 15000Mm Long |
| 12 | 275500499 | CHECK VALVE - Call your local BRP dealership This part replaces 275500167. |
| 13 | 293750001 | Tie Wrap 94 mm |
| 14 | 293750002 | Tie Wrap 142 mm |
| 15 | 293730040 | Mount Dart This part replaces 293730018. |
| 16 | 293750012 | Tie Mount Top |
| 17 | 204000063 | Flexible Hose 3" (Meter) |
| 18 | 204130080 | RIVET_PLASTIC - Call your local BRP dealership This part replaces 293150010. |
| 19 | 291000300 | Rear Intake Grill (Black) |
| 20 | 293750013 | Tie Mount |
| 21 | 234051600 | Flat Washer M5, Stainless |
| 22 | 232551600 | Hex. Elastic Nut M5 |
| 23 | 293750008 | Tie Wrap 368 mm |
| 24 | 292000063 | U-CLAMP - Call your local BRP dealership |
| 25 | 291000307 | RETAINING PLATE - Call your local BRP dealership |
| 26 | 234181601 | Lock Washer 8 mm, Stainless |
| 27 | 232081600 | Hex. Nut M8 |
| 28 | 293050001 | Flat Washer M8.5 x 18 |
| 29 | 293800005 | Loctite 271, 10 ml |
| 30 | 296000309 | Silicone Sealant 51388, 300 ml |
| 31 | 293750011 | Clip Cable |
| 32 | 293150016 | Rivet 1/8" |
| 33 | 293750005 | TIE CLAMP - Call your local BRP dealership |
