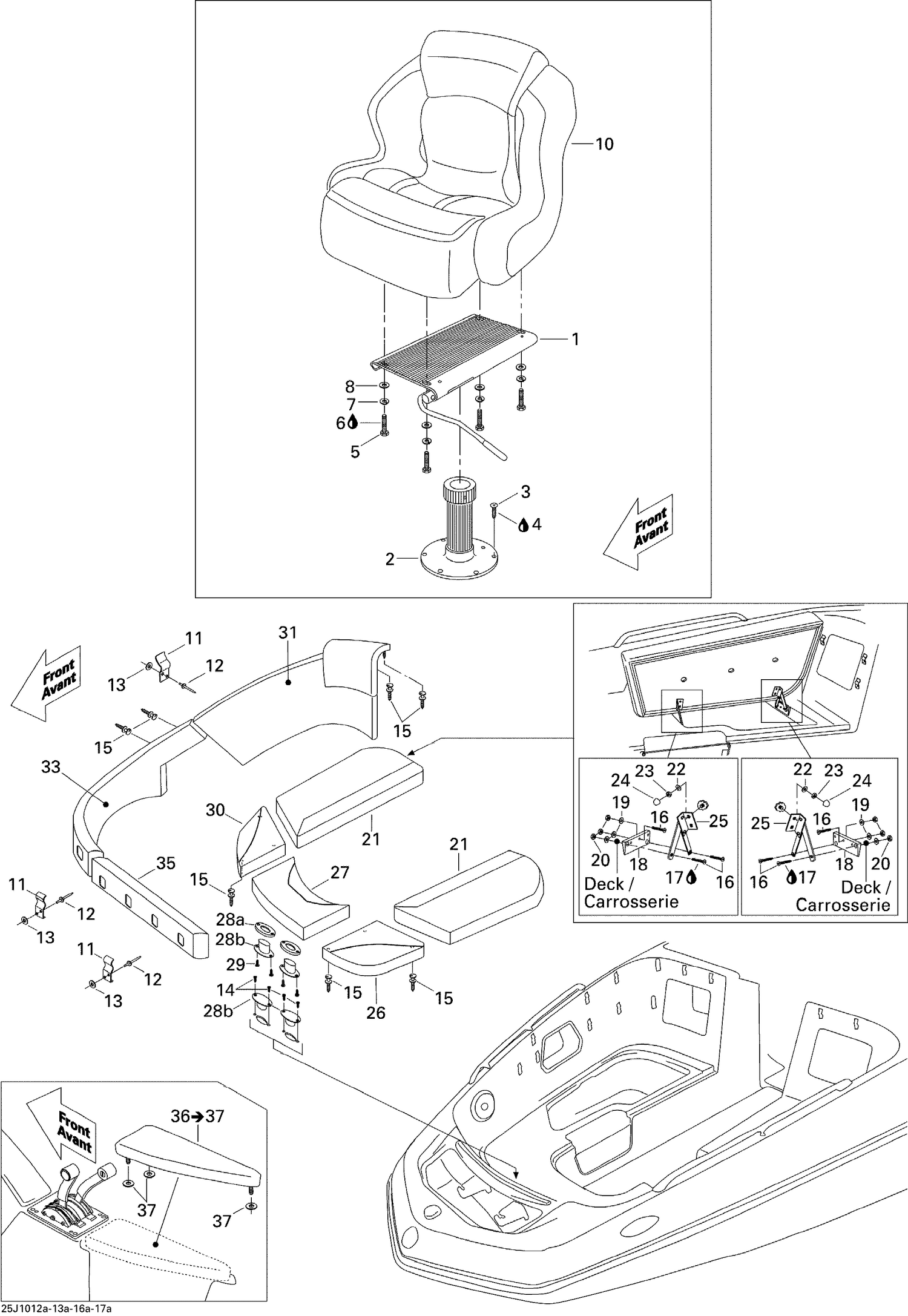

| Ref | Part Number | Description |
|---|
| 1 |
204613742 |
SLIDE AND SWIVEL SEAT BASE - Call your local BRP dealership |
| 2 |
269001903 |
SEAT PEDESTAL - Call your local BRP dealership |
| 3 |
204100201 |
PHILLIPS SCREW 1/4-20 X 1-1/4 - Call your local BRP dealership |
| 4 |
293800060 |
Loctite 243, 10 ml |
| 5 |
204100134 |
TAPPING SCREW 1/4-20 X 3/4 - Call your local BRP dealership |
| 6 |
293800060 |
Loctite 243, 10 ml |
| 7 |
211200025 |
Lock Washer 1/4” |
| 8 |
234082600 |
Flat Washer 8 mm, Stainless |
| 10 |
204614548 |
Bucket Seat Ass'y |
| 11 |
204613998 |
SEAT SUPPORT - Call your local BRP dealership |
| 12 |
293150043 |
Pop Rivet 3/16" |
| 13 |
234061600 |
Stainless Flat Washer M6 |
| 14 |
204100054 |
SCREW 8 X 3/4? - Call your local BRP dealership |
| 15 |
204130264 |
Dart 1", White |
| 16 |
205364060 |
SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership |
| 17 |
293800060 |
Loctite 243, 10 ml |
| 18 |
204614766 |
HINGE SHIM - Call your local BRP dealership |
| 19 |
234062600 |
Flat Washer M6, Stainless |
| 20 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 21 |
204614978 |
Front Side Cushion, Port Side |
| 21 |
204614986 |
FRONT SIDE CUSHION, STARBOARD - Call your local BRP dealership |
| 22 |
234062600 |
Flat Washer M6, Stainless |
| 23 |
211100026 |
HEX. NUT 1/4 - Call your local BRP dealership |
| 24 |
204130008 |
Plastic Cap, White |
| 25 |
204614745 |
Hinge Set |
| 26 |
269001980 |
FRONT BOW CUSHION, PORT SIDE - Call your local BRP dealership This part replaces 204614980. |
| 27 |
269001981 |
FRONT CENTER CUSHION ASS'Y - Call your local BRP dealership This part replaces 204614982. |
| 28a |
204130219 |
SPACER MAGNET 1/8'' - Call your local BRP dealership |
| 28b |
204614513 |
MAGNETIC CATCH ASS'Y - Call your local BRP dealership |
| 29 |
204100054 |
SCREW 8 X 3/4? - Call your local BRP dealership |
| 30 |
269001982 |
FRONT BOW CUSHION, STARBOARD SIDE - Call your local BRP dealership This part replaces 204614984. |
| 31 |
204614988 |
Bow Side Backrest, Port Side |
| 31 |
204614990 |
BOW SIDE BACKREST, STARBOARD - Call your local BRP dealership |
| 33 |
269001986 |
BOW FRONT BACKREST, PORT SIDE - Call your local BRP dealership This part replaces 204614992. |
| 33 |
269001987 |
BOW FRONT BACKREST, STARBOARD SIDE - Call your local BRP dealership This part replaces 204614994. |
| 35 |
204614996 |
BOW CENTER BACKREST - Call your local BRP dealership |
