Parts Catalog

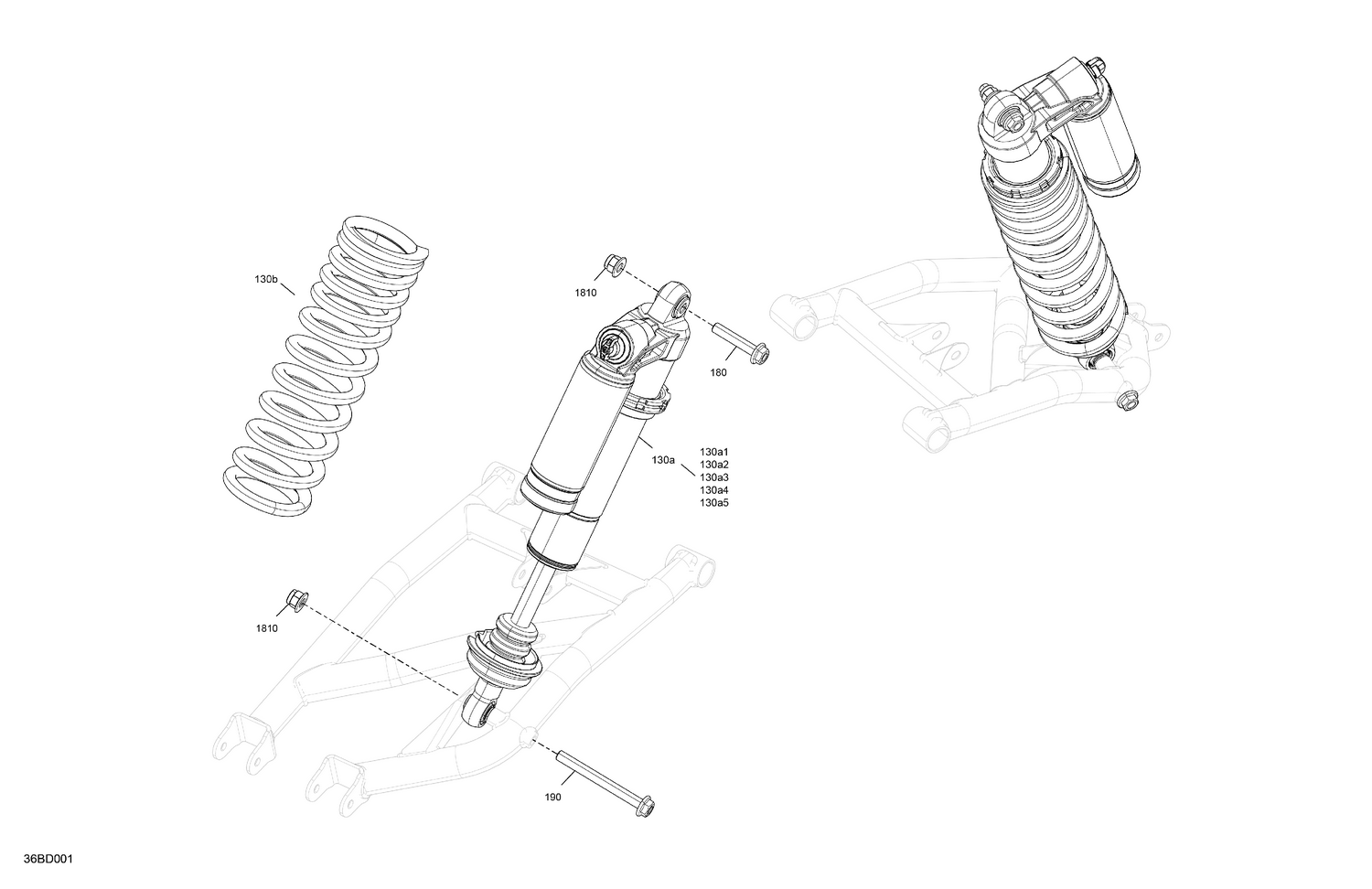

05- Suspension - Rear Shocks

Parts (8)

Ref	Part Number	Description
130a1	715900337	Spherical Bearing
130a2	706004078	Ball Joint
130a3	715900338	O-Ring Bushing
130a4	715900480	Circlip
130a5	715900481	Reducer
130b	706005551	Legion Red, Compression Spring
180	250000857	Flange Screw M12 X 60
190	250000860	Screw Flange M12 X 115
