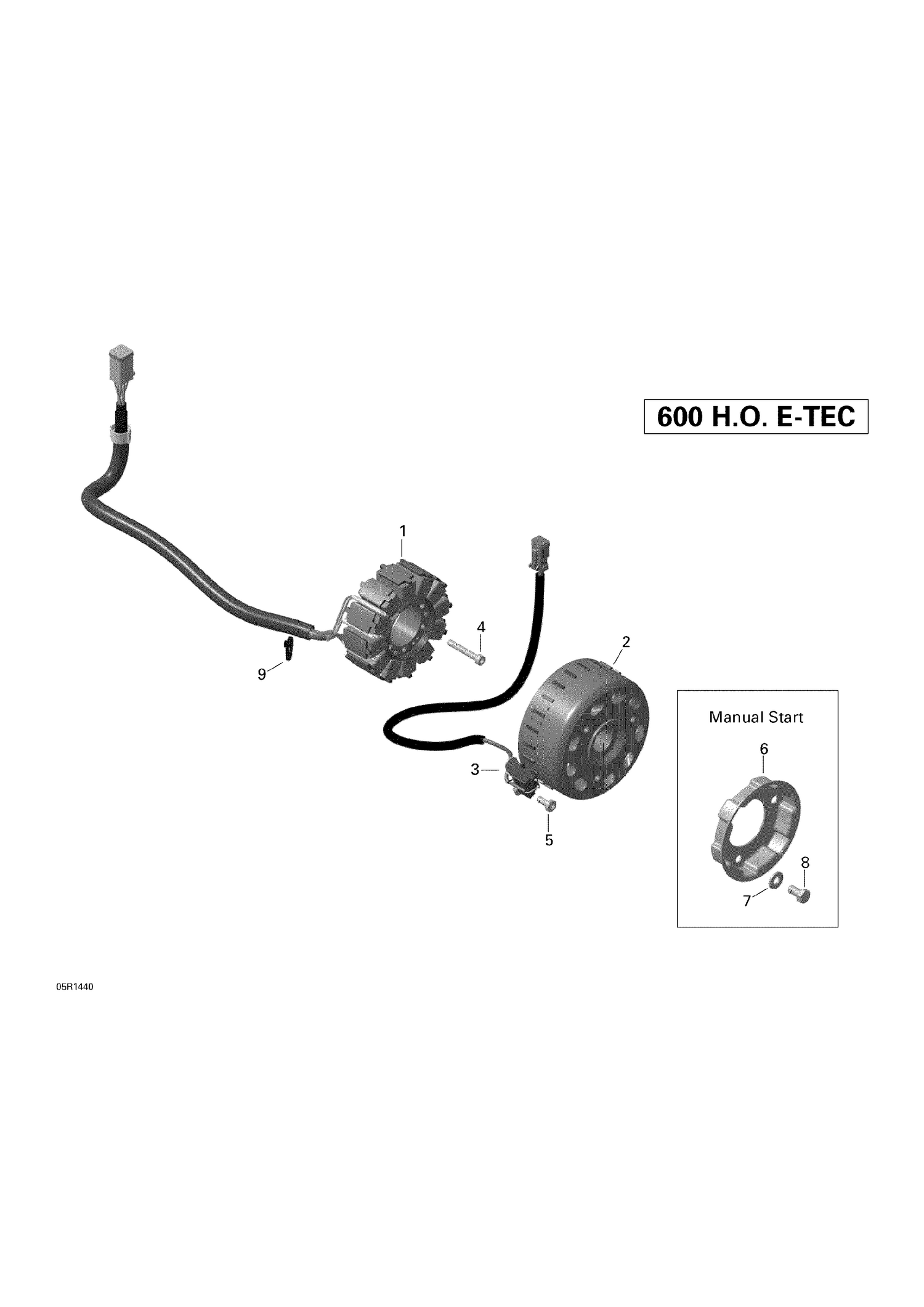

03- Magneto — Parts Catalog

Ref	Part Number	Description
1	420665435	Stator Plate
2	420665442	Flywheel This part replaces 420665447.
3	410922969	Pick-Up Ass'y
4	420241816	SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership
5	420640324	Torx Screw M6 X 16
