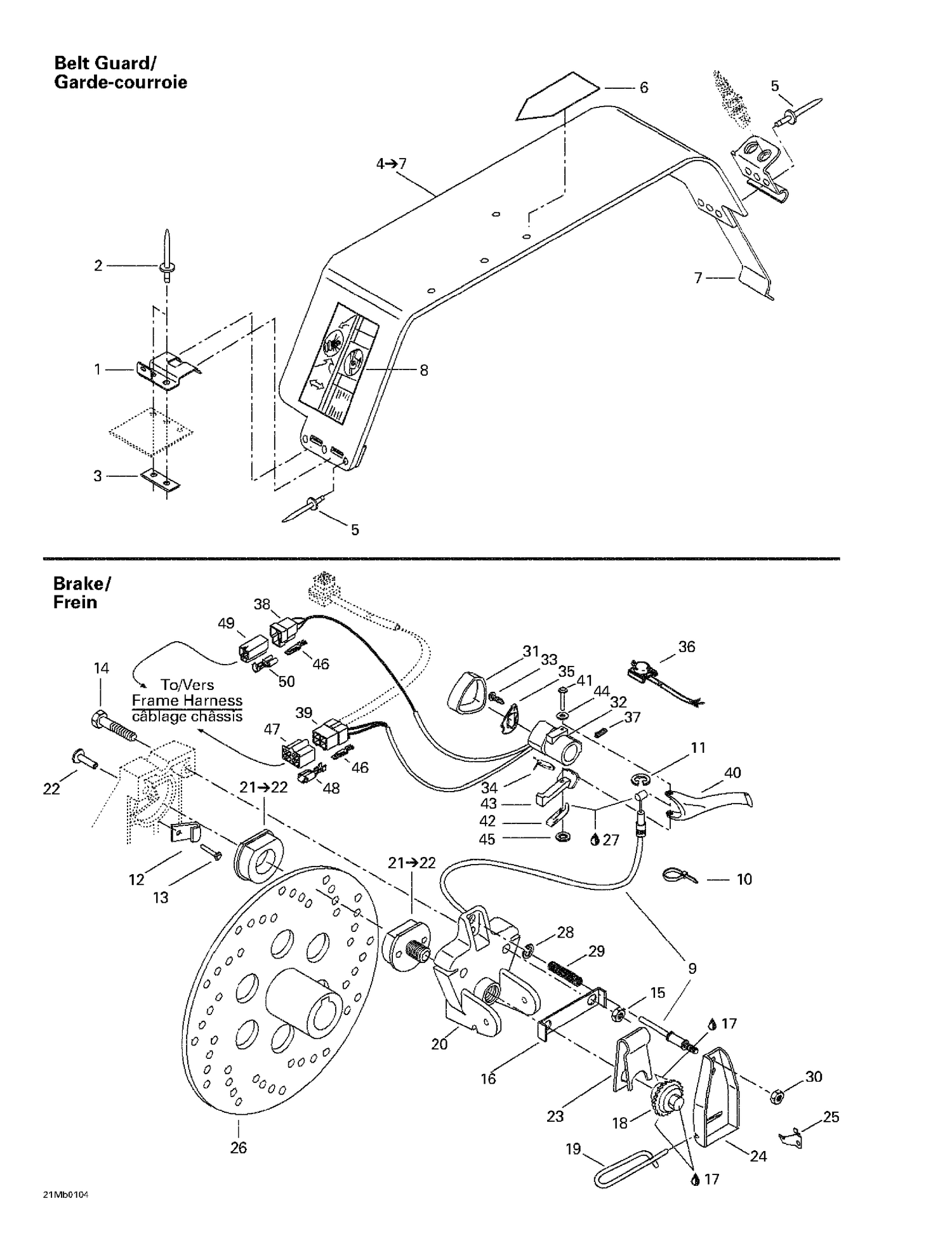

| Ref | Part Number | Description |
|---|
| 1 |
518314200 |
Pulley Guard Bracket |
| 2 |
390402200 |
Pop Rivet 3/16" |
| 3 |
518207500 |
REINFORCEMENT - Call your local BRP dealership |
| 5 |
390402200 |
Pop Rivet 3/16" |
| 6 |
516002670 |
WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership This part replaces 516000132. |
| 7 |
414941800 |
Tool Box Spring |
| 8 |
418001701 |
Suspension Adjustment Decal |
| 9 |
414922500 |
BRAKE CABLE - Call your local BRP dealership |
| 10 |
414115200 |
Tie-Rap 180 mm |
| 11 |
414274500 |
Circlip |
| 12 |
507022600 |
WEAR INDICATOR - Call your local BRP dealership |
| 13 |
Not |
Available As Spare Part - Tubular Rivet |
| 14 |
207085544 |
Hex. Screw M8 X 55 |
| 15 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 16 |
507020400 |
LOCK-TAB - Call your local BRP dealership |
| 17 |
293800023 |
LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership |
| 18 |
507019600 |
Wheel Ratchet |
| 19 |
507027500 |
Hair Pin |
| 20 |
507027600 |
Machined Caliper |
| 22 |
293150104 |
Pop Rivet 3/16" This part replaces 390409600. |
| 23 |
507020200 |
RELEASE SPRING - Call your local BRP dealership |
| 24 |
507021500 |
LEVER - Call your local BRP dealership |
| 25 |
507009400 |
RATCHET SPRING - Call your local BRP dealership |
| 26 |
507029000 |
WELDED DISK - Call your local BRP dealership |
| 27 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 28 |
371901300 |
Circlip |
| 29 |
414460600 |
SPRING - Call your local BRP dealership |
| 30 |
232561414 |
Elastic Stop Nut M6 |
| 31 |
572073800 |
BRAKE COVER - Call your local BRP dealership |
| 32 |
572086500 |
BRAKE HOUSING - Call your local BRP dealership |
| 33 |
414473200 |
Screw |
| 34 |
415085700 |
Brake Switch |
| 35 |
572086600 |
LH Plate |
| 36 |
415085800 |
Dimmer Switch |
| 37 |
414440800 |
Socket Set Screw M8 X 10 |
| 38 |
409204200 |
FEMALE HOUSING - Call your local BRP dealership |
| 39 |
409209300 |
MALE HOUSING - Call your local BRP dealership |
| 40 |
572025700 |
BRAKE HANDLE - Call your local BRP dealership |
| 41 |
517229400 |
PIN - Call your local BRP dealership |
| 42 |
517229300 |
Spring |
| 43 |
572025200 |
Brake Lever |
| 44 |
414729400 |
WAVE SPRING WASHER METALCRAFT - Call your local BRP dealership |
| 45 |
389804300 |
Push Nut |
| 46 |
409210000 |
MALE TERMINAL - Call your local BRP dealership |
| 47 |
409204900 |
FEMALE HOUSING - Call your local BRP dealership |
| 48 |
561503200 |
Female Terminal PACKARD |
| 49 |
409204300 |
Female Housing |
