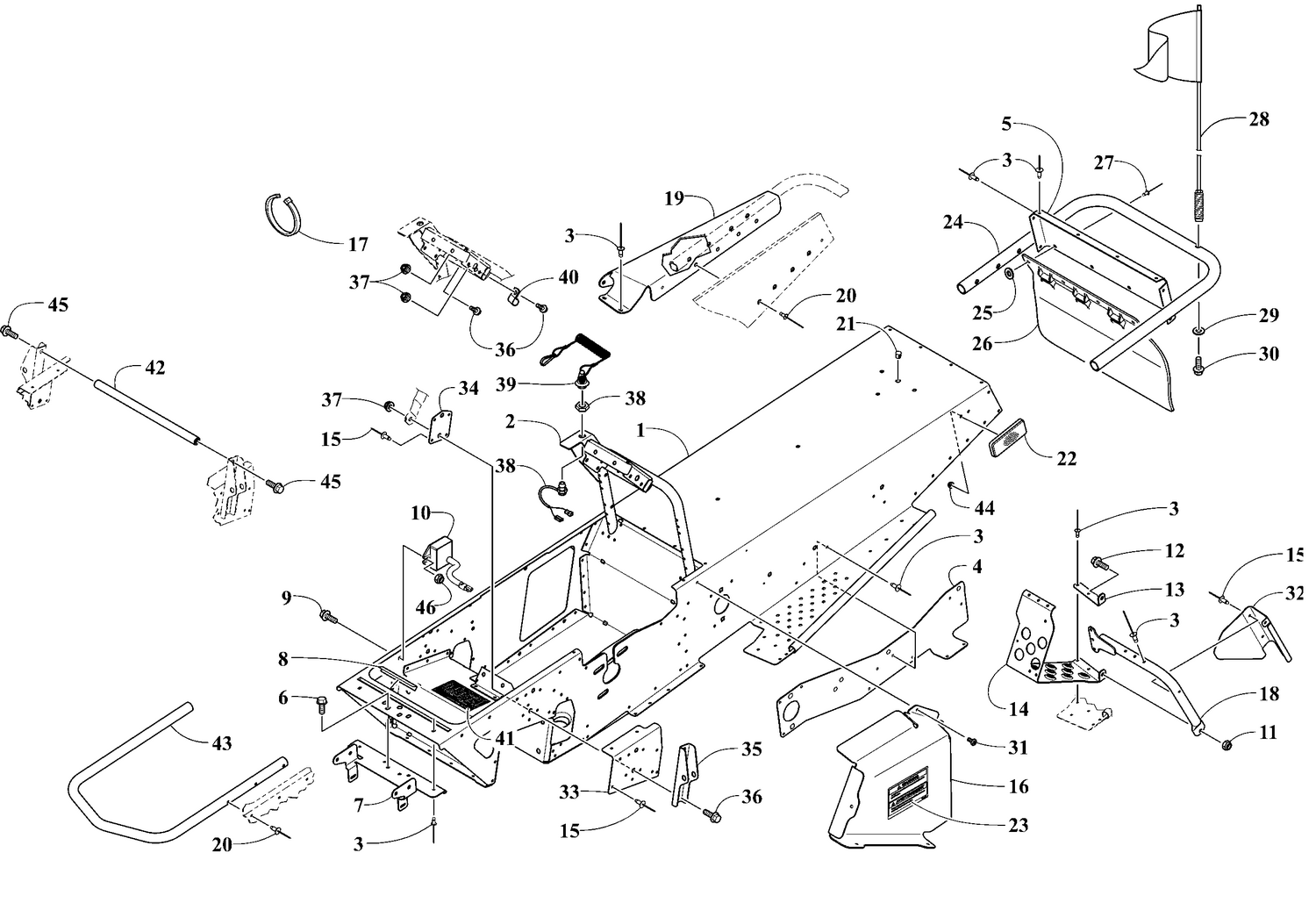

| Ref | Part Number | Description |
|---|
| 1 |
4707-392 |
Black, Tunnel Ass'y |
| 2 |
6716-497 |
Black, Front End Ass'y |
| 3 |
0307832 |
PLUG, Screw |
| 3 |
8060-484 |
Zinc Rivet |
| 4 |
2706-156 |
RH Reinforced Tunnel Plate |
| 4 |
2706-157 |
LH Reinforced Tunnel Plate |
| 5 |
2706-158 |
Black, Tunnel Cover Plate |
| 6 |
0623-892 |
Self Tapping Screw 1/4-20X1/2 |
| 7 |
6706-367 |
Black, Front Belly Pan Bracket |
| 8 |
0706-371 |
Rack Trim 36 |
| 9 |
8477-620 |
Machine Screw |
| 10 |
0307901 |
ROLL PIN |
| 10 |
0630-409 |
Voltage Regulator |
| 11 |
8047-366 |
Elastic Stop Nut 1/4-20 |
| 12 |
8020-040 |
Cap Screw 1/4-20 |
| 13 |
0336842 |
CLIP, SPRING This part replaces 0603145. |
| 13 |
2706-180 |
RH Footrest Bracket Support |
| 13 |
2706-181 |
LH Footrest Bracket Support |
| 14 |
6716-354 |
Black, RH Footrest |
| 14 |
6716-355 |
Black, LH Footrest |
| 15 |
8060-486 |
Zinc Rivet |
| 16 |
2706-217 |
Cover |
| 17 |
414115200 |
Tie-Rap 180 mm |
| 18 |
3706-773 |
LH Footrest Support |
| 18 |
4706-824 |
RH Footrest Support |
| 19 |
4706-262 |
Black, RH Rear Bumper End Cap |
| 19 |
4706-263 |
Black, LH Rear Bumper End Cap |
| 20 |
8060-706 |
Black, Rivet |
| 21 |
0326151 |
SPRING, Override |
| 21 |
0623-562 |
Black, Hole Plug 3/8 DIA |
| 22 |
0387908 |
LEVER AND PIN ASSY |
| 22 |
6606-819 |
Decal Amber Reflector |
| 23 |
3611-754 |
Warning Decal |
| 24 |
3706-006 |
Black, Rear Bumper |
| 25 |
0123-802 |
Flat Washer |
| 26 |
1616-355 |
Snow Guard |
| 27 |
0318832 |
O-RING, No. 35 |
| 27 |
8060-708 |
Black, Pop Rivet |
| 28 |
0314906 |
CLIP |
| 28 |
6706-408 |
Flag Safety Ass'y |
| 29 |
8050-247 |
Flat Washer |
| 30 |
8020-134 |
Cap Screw 5/16-18 |
| 31 |
0623-301 |
Self Tapping Screw 10X1/2 |
| 32 |
0387590 |
FLOAT CHAMBER |
| 32 |
6706-552 |
Black, RH Bellypan Support Bracket |
| 32 |
6706-553 |
Black, LH Bellypan Support Bracket |
| 33 |
6706-548 |
RH Outer Reinforcement Plate |
| 33 |
6706-549 |
LH Outer Reinforcement Plate |
| 34 |
6706-440 |
Inner Plate Reinforcement |
| 35 |
0324977 |
ORIFICE, No. 61, 20 inch transom |
| 35 |
0326856 |
HIGH SPEED ORIFICE, No. 62 |
| 35 |
0326928 |
ORIFICE PLUG (#55) |
| 35 |
0327689 |
ORIFICE, No 67 This part replaces 0325836. |
| 35 |
6706-441 |
Black, Bracket |
| 36 |
8020-131 |
Cap Screw 5/16-18 |
| 37 |
0317501 |
SCREW PLUG, Orifice |
| 37 |
8047-426 |
Elastic Stop Nut 1/4-20 |
| 38 |
0630-138 |
Tether Switch |
| 39 |
0325092 |
GASKET |
| 39 |
0630-139 |
Tether Switch Cord |
| 40 |
0316355 |
BUT, Carburetor mounting |
| 40 |
3008-040 |
Heat Sensor Clamp M12 |
| 41 |
6621-942 |
Decal , Jet Chart 120 |
| 42 |
4604-452 |
Axle X-Brace |
| 43 |
6706-274 |
Black, Front Bumper |
| 44 |
1623-566 |
Cap Screw 5/16-18 |
| 0387906 |
0387906 |
CARBURETOR ASSEMBLY, Middle |
| 0387907 |
0387907 |
CARBURETOR ASSEMBLY, Upper & lower |
| 0391608 |
0392574 |
CARBURETOR ASSEMBLY, Upper & lower This part replaces 0391608. |
| 0391609 |
0391609 |
CARBURETOR ASSEMBLY, Middle |
| 0391632 |
0391632 |
CARBURETOR ASSEMBLY, Middle, 20 inch transom |
| 0391633 |
0392576 |
CARBURETOR ASSEMBLY, Upper & lower This part replaces 0391633. |
