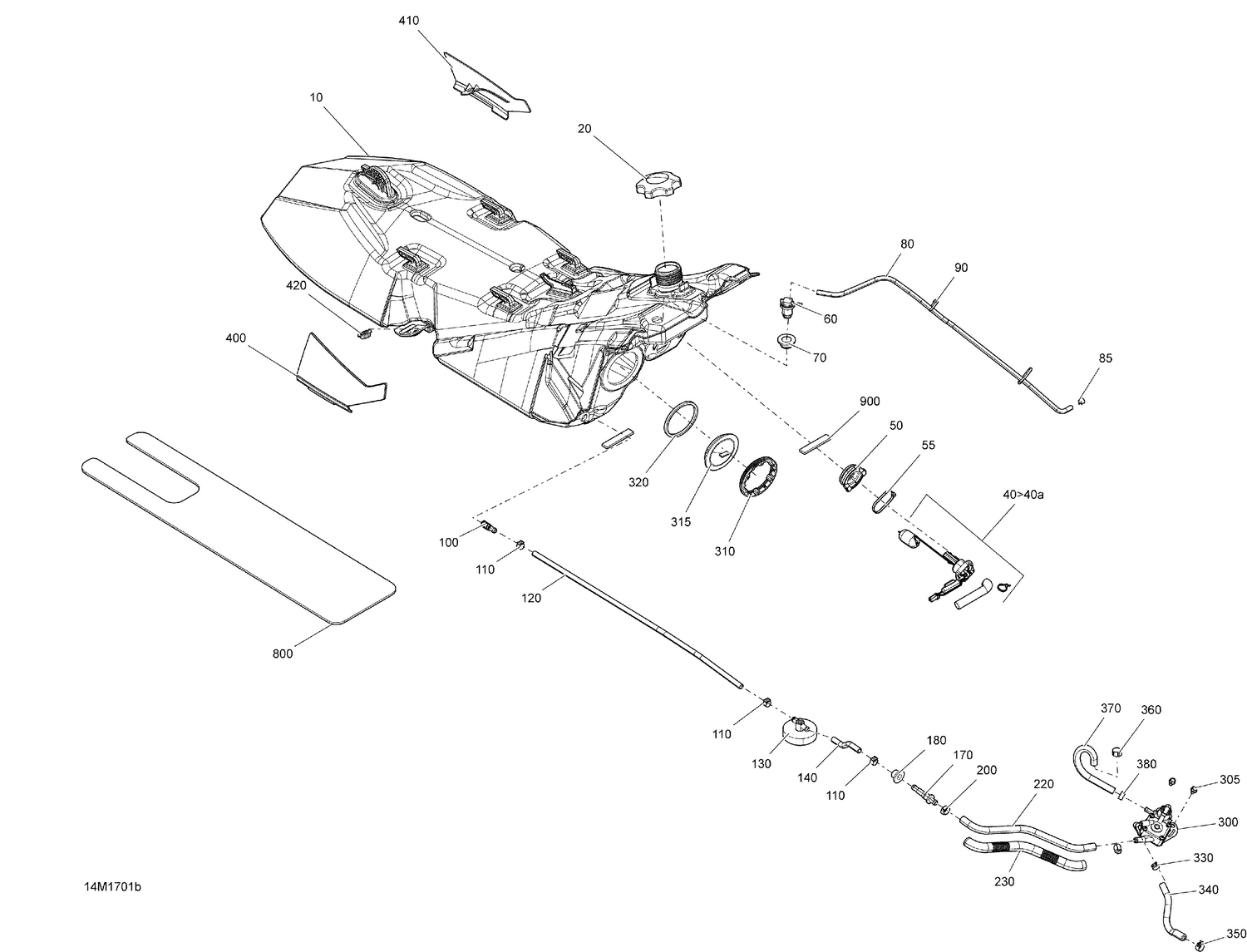

02- Fuel System
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 513033696 | Fuel Tank |
| 20 | 513033969 | Fuel Tank Cap This part replaces 513033720. |
| 40a | 710001995 | Fuse, 0.5 Ampère |
| 50 | 513033606 | Grommet |
| 55 | 293750008 | Tie Wrap 368 mm |
| 60 | 513033842 | Check Valve |
| 70 | 513033596 | Grommet |
| 80 | 219704410 | Polyurethane Hose 10000Mm Long |
| 85 | 414554800 | Spring Clamp |
| 90 | 414115200 | Tie-Rap 180 mm |
| 100 | 414872100 | Fuel Filter Strainer |
| 110 | 513033010 | Norma Spring Clamp |
| 120 | 219704391 | Polyurethane Hose 1000mm Long This part replaces 513033332. |
| 130 | 513033353 | Multi-Point Pick-Up |
| 140 | 513033352 | Formed Hose |
| 170 | 414872700 | Male Connector |
| 180 | 513033435 | Grommet |
| 200 | 293650053 | Crimp Clamp |
| 220 | 513033165 | Formed Hose |
| 230 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 300 | 513033184 | Fuel Pump |
| 305 | 210261040 | Hex. Flange Screw M6 X 10 |
| 310 | 513033180 | Ring |
| 315 | 513033591 | Cap |
| 320 | 513033334 | Gasket |
| 330 | 414415200 | Spring Clamp |
| 340 | 513033327 | Formed Hose |
| 350 | 513033029 | Universal Spring Clamp |
| 360 | 293650125 | Oetiker Clamp |
| 370 | 513033343 | Formed Hose |
| 380 | 414655700 | Spring Clamp |
| 400 | 513033418 | RH Cap |
| 410 | 513033419 | LH Cap |
| 420 | 513033326 | Shoulder Bushing |
| 800 | 513033588 | Insulating Foam |
