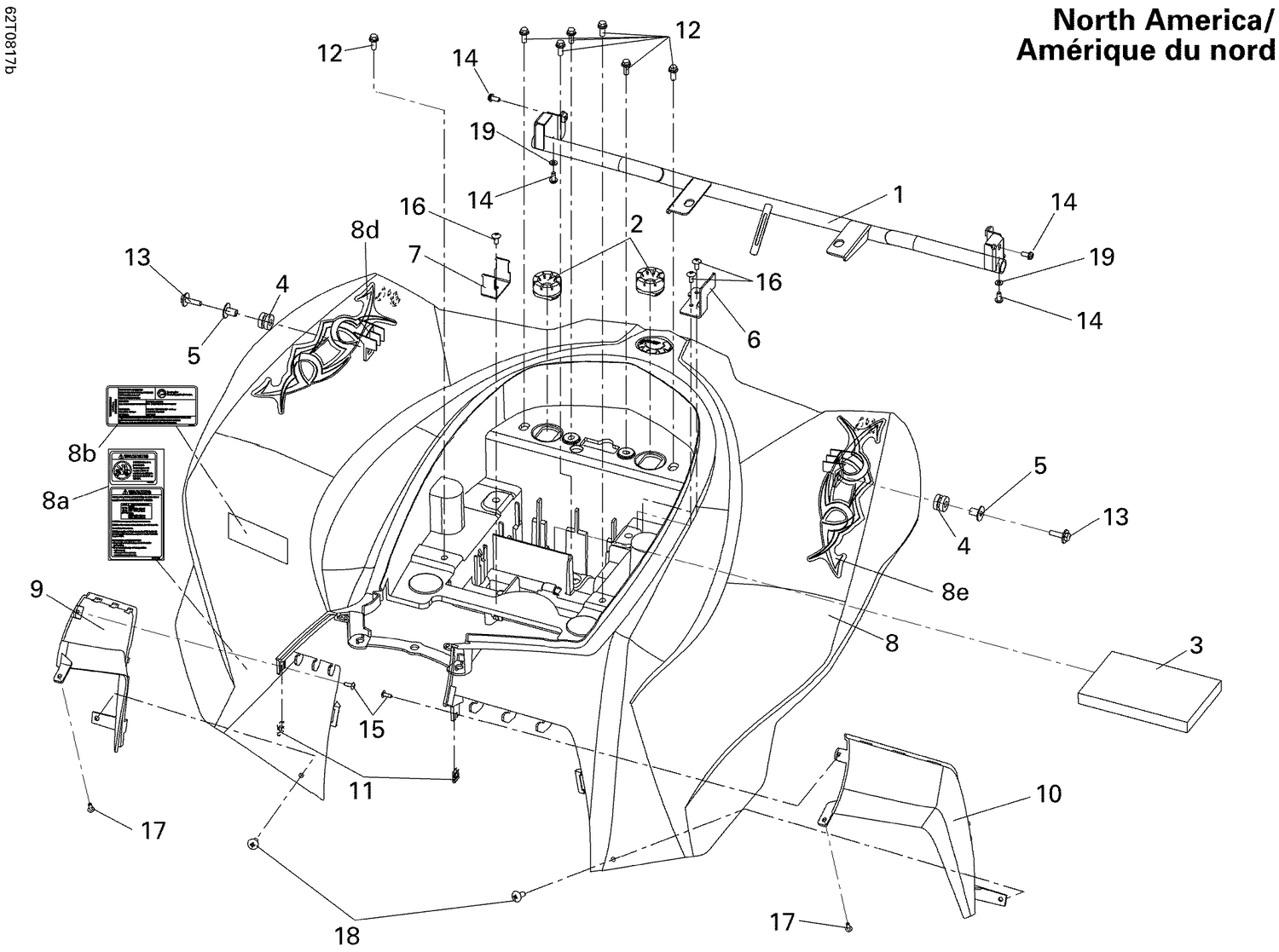

09- Rear Fender North America
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | S50530RCB000 | Rear Fender Support |
| 2 | S77212RCA000 | Rubber Cushion |
| 3 | S80108RCA000 | Sponge Rubber |
| 4 | S80103X01000 | Rubber Washer |
| 5 | S80104X01000 | Fender Collar |
| 6 | S80107RCA000 | CDI Stay |
| 7 | S80109RB1000 | Stay |
| 8 | S8010GRCB910ZY | Rear Fender , Yellow |
| 8a | S8750BRCA000 | Warning Decal B |
| 8b | S87514RCA800 | EPA Label |
| 8d | S87133RCAA00 | Rear Fender Decal |
| 8e | S87132RCAA00 | Rear Fender Decal |
| 9 | S83525RCA000JF | RH Side Cover |
| 10 | S83625RCA000JF | LH Side Cover |
| 11 | S90302V02000 | Clip Nut |
| 12 | S9390335280 | Tapping Screw M5 X 12 |
| 13 | S934040602507 | Washer Bolt |
| 14 | S938910501207 | Flanged Bolt M5 X 12 |
| 15 | S9390334380 | Tapping Screw M4 X 12 |
| 16 | S9390335280 | Tapping Screw M5 X 12 |
| 17 | S9390344380 | Tapping Screw |
| 18 | S90119G03900 | Screw Washer This part replaces S90199G03000. |
