Home / BRP / 2012 / Summit / Summit SPORT 600, 2012 000CYCB00 / 01- Engine 600

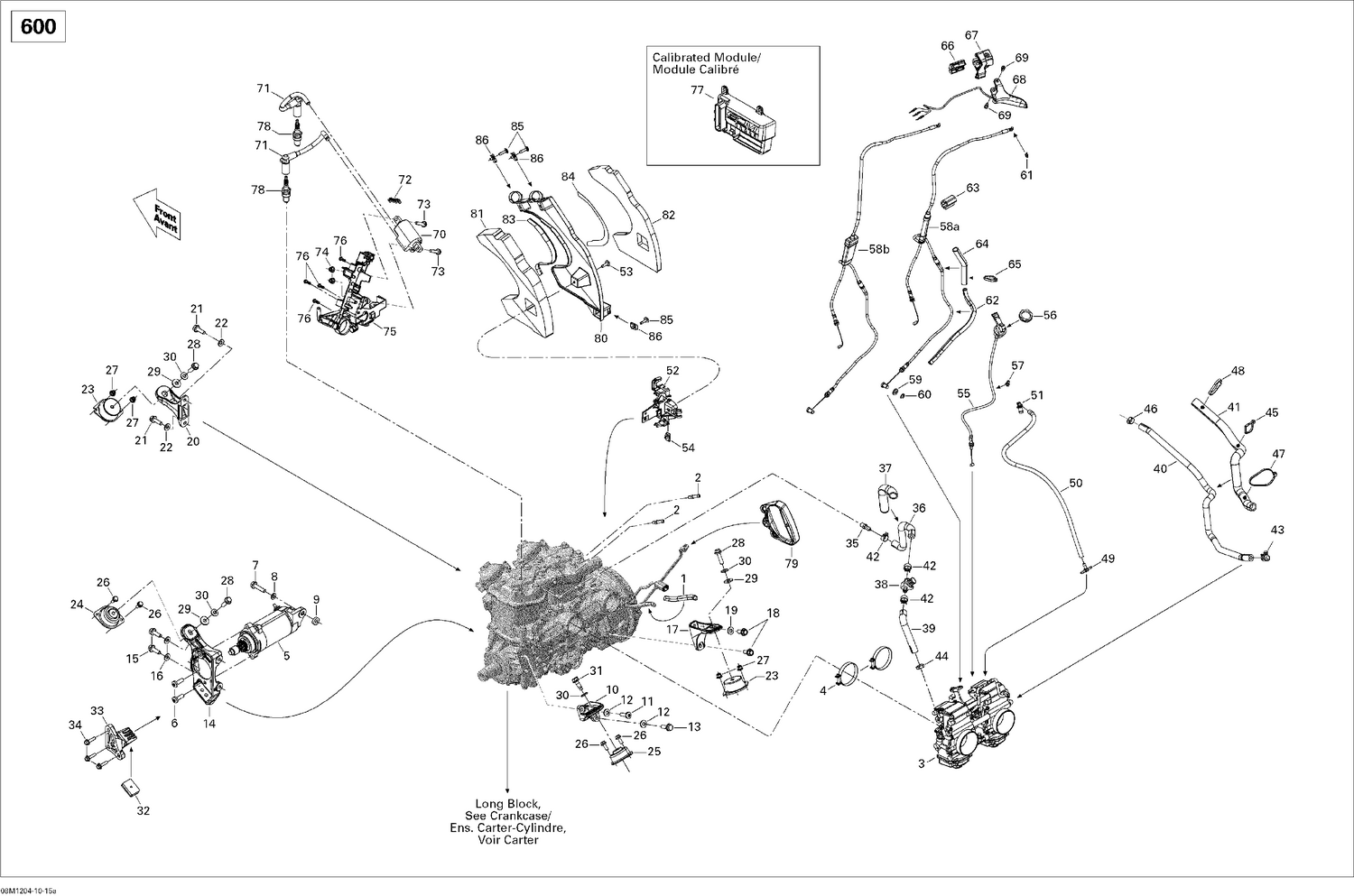

01- Engine 600

01- Engine 600

Parts (86)

RefPart NumberDescription
1 219704407 Tubing 10 MM 1000MM Long
2 420924724 Hose Nipple
3 403138815 Carburetor Kit, TM40-B418
4 512059835 Gemi Clamp
5 XXX Not Available As Spare Parts
6 XXX Not Available As Spare Parts
7 XXX Not Available As Spare Parts
8 XXX Not Available As Spare Parts
9 XXX Not Available As Spare Parts
10 512060478 Rear Support, PTO
11 250000752 Torx Screw M8 X 1.25 X 25, Scotch Grip This part replaces 250000248.
12 234281474 Conical Spring Washer M8
13 207582586 Hex. Flange Screw M8 X 25, Scotch Grip
14 512060712 FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060699.
15 207582586 Hex. Flange Screw M8 X 25, Scotch Grip
16 234281474 Conical Spring Washer M8
17 512060559 Rear Support, MAG
18 207582044 Hex. Flange Screw M8 X 20, Scotch Grip
19 234281474 Conical Spring Washer M8
20 512060469 Front Support, MAG
21 207582586 Hex. Flange Screw M8 X 25, Scotch Grip
22 234281474 Conical Spring Washer M8
23 512060729 Rubber Mount
24 512061507 Vibration Damper This part replaces 512060387.
25 512060448 Rubber Mount
26 207561644 Hex. Flange Screw M6 X 16, Scotch Grip
27 233261414 Hex. Flange Elastic Nut M6 x 1.0
28 207683044 Hex. Flange Screw M8 X 30
29 503183200 Yellow, Washer
30 234281474 Conical Spring Washer M8
31 250000796 Hex. Flange Screw M8 X 1.25 X 25 This part replaces 250000570.
32 512060627 Stopper
33 512060576 Stopper Support
34 207562544 Hex. Flange Screw M6 X 25
35 512060196 Male Connector 1/8"-27 NPT
36 512060355 Hose Formed
37 219704408 Tubing 16 Mm 1000Mm Long
38 512059324 Valve 5/16”
39 512060353 Hose Formed
40 512060347 Hose Formed
41 219704408 Tubing 16 Mm 1000Mm Long
42 414655700 Spring Clamp
43 293650214 Norma Spring Clamp
44 293650125 Oetiker Clamp
45 414115200 Tie-Rap 180 mm
46 293650046 Oetiker Clamp
47 293750008 Tie Wrap 368 mm
48 414115200 Tie-Rap 180 mm
49 572045500 T-Fitting
50 219704410 Polyurethane Hose 10000Mm Long
51 414580700 Male Connector
52 512060298 Solenoid Support
53 250000528 Torx Screw M5 X 20
54 250000958 Panel Nut M5 X 0.8 This part replaces 250000079.
55 512060672 Choke Cable
56 512060671 Plastic Nut
57 414115200 Tie-Rap 180 mm
58a XXX Not Available As Spare Parts
58b 512060893 Throttle Cable This part replaces 512060547.
59 234081100 Flat Washer 8 mm, Nylon
60 414753500 Circlip
61 414274500 Circlip
62 219704425 Tubing 6 Mm 3000Mm Long
63 512060313 Protector
64 219704407 Tubing 10 MM 1000MM Long
65 414115200 Tie-Rap 180 mm
66 512060198 Upper Housing Ass'y
67 512060860 Lower Housing This part replaces 512060430.
68 512061252 Throttle Handle Ass'y This part replaces 512060616.
69 732601143 Flange Screw
70 512059968 Ignition Coil
71 512060291 Cable
72 410914600 Plastic Clip, Spark Plug Wire
73 207563034 Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044.
74 233261414 Hex. Flange Elastic Nut M6 x 1.0
75 512060924 Coils Support This part replaces 512060745.
76 241151640 Hex. Flange Screw K50 X 2.24 X 16
77 512060680 Calibrated Module, 600
78 415128524 Spark Plug NGK BR9ECS
79 512060136 Starter Grip
80 512060338 Noise Shield
81 512060341 Inner Noise Foam
82 512060342 Outer Noise Foam
83 512060574 Heat Shield
84 512060575 Heat Shield
85 250000528 Torx Screw M5 X 20
