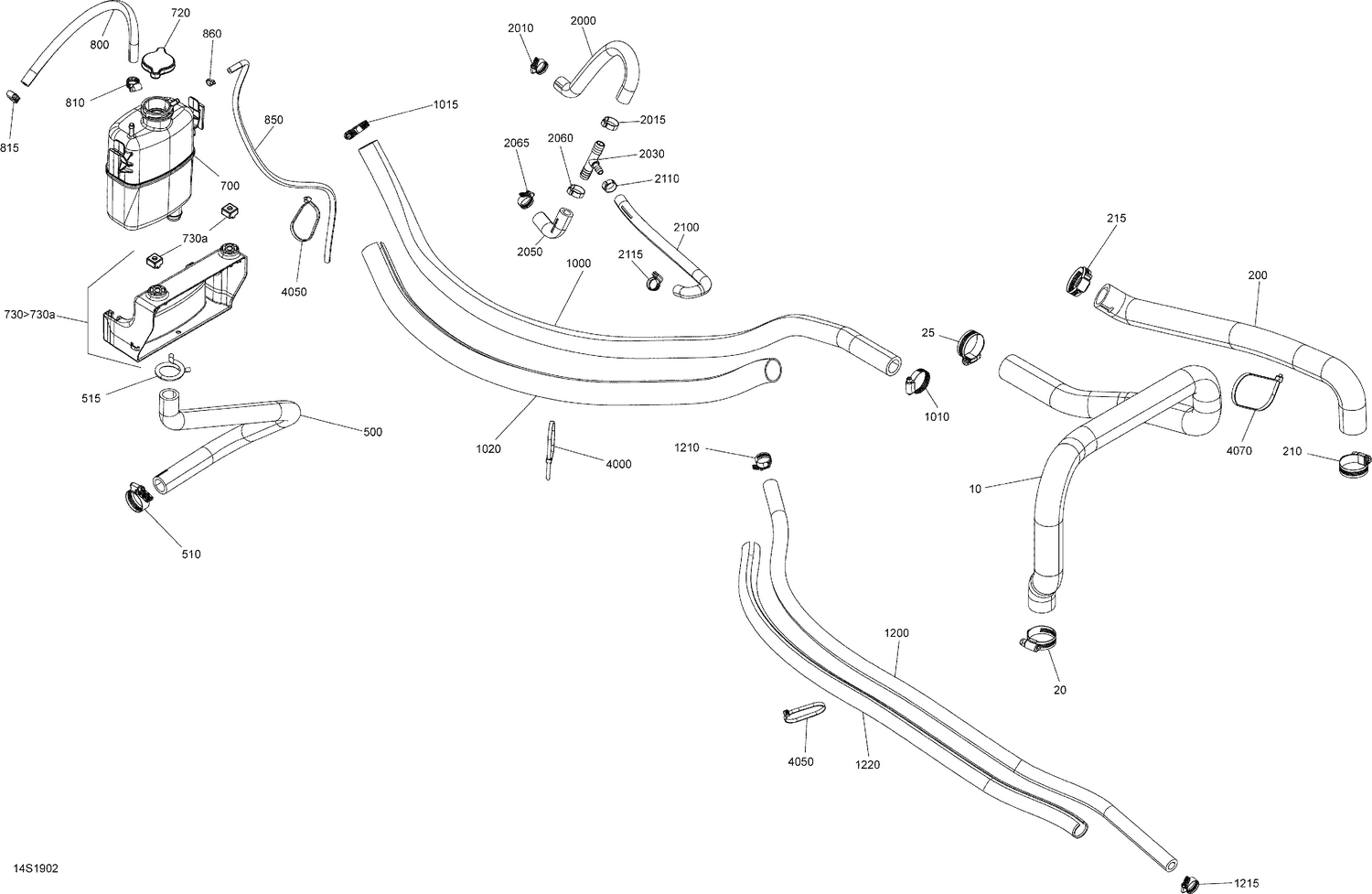

01- Cooling System
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 276000459 | Radiator Hose, LH This part replaces 276000426. |
| 20 | 293650245 | Norma Clamp This part replaces 293650280. |
| 25 | 293650245 | Norma Clamp This part replaces 293650280. |
| 200 | 276000248 | RH Radiator Hose |
| 210 | 293650245 | Norma Clamp This part replaces 293650280. |
| 215 | 293650245 | Norma Clamp This part replaces 293650280. |
| 500 | 276000486 | Hose, Coolant Tank Lower This part replaces 276000364. |
| 510 | 293650019 | Tridon Gear Clamp This part replaces 293650290. |
| 515 | 293650115 | Spring Clamp |
| 700 | 276000086 | Coolant Tank |
| 720 | 276000100 | Pressure Cap |
| 730a | 269502408 | Housing Nut M6 This part replaces 269501166. |
| 800 | 219704362 | Was 276000394 Hose 6.4 mm |
| 810 | 293650287 | Gear Clamp |
| 815 | 293650287 | Gear Clamp |
| 850 | 219704389 | Polyurethane Hose 4000MM Long |
| 860 | 293750001 | Tie Wrap 94 mm |
| 1000 | 219704361 | Hose 19.0Mm. 2000Mm Long |
| 1010 | 293650284 | Gear Clamp |
| 1015 | 293650284 | Gear Clamp |
| 1020 | 219704402 | Tubing 25 MM 1000MM Long |
| 1200 | 219704394 | Was 276000001 Hose 12.5 mm |
| 1210 | 293650285 | Clamp Gear |
| 1215 | 293650285 | Clamp Gear |
| 1220 | 219704423 | Was 515175319 Tubing 22 mm |
| 2000 | 276000484 | Hose, Bypass Upper This part replaces 276000244. |
| 2010 | 293650285 | Clamp Gear |
| 2015 | 293650012 | Oetiker Clamp |
| 2030 | 293710116 | T-Fitting |
| 2050 | 276000455 | Hose, Bypass Lower This part replaces 276000245. |
| 2060 | 293650012 | Oetiker Clamp |
| 2065 | 293650285 | Clamp Gear |
| 2100 | 276000246 | Formed Hose |
| 2110 | 293650030 | Oetiker Clamp |
| 2115 | 293650285 | Clamp Gear |
| 4000 | 293750008 | Tie Wrap 368 mm |
| 4050 | 414115200 | Tie-Rap 180 mm |
