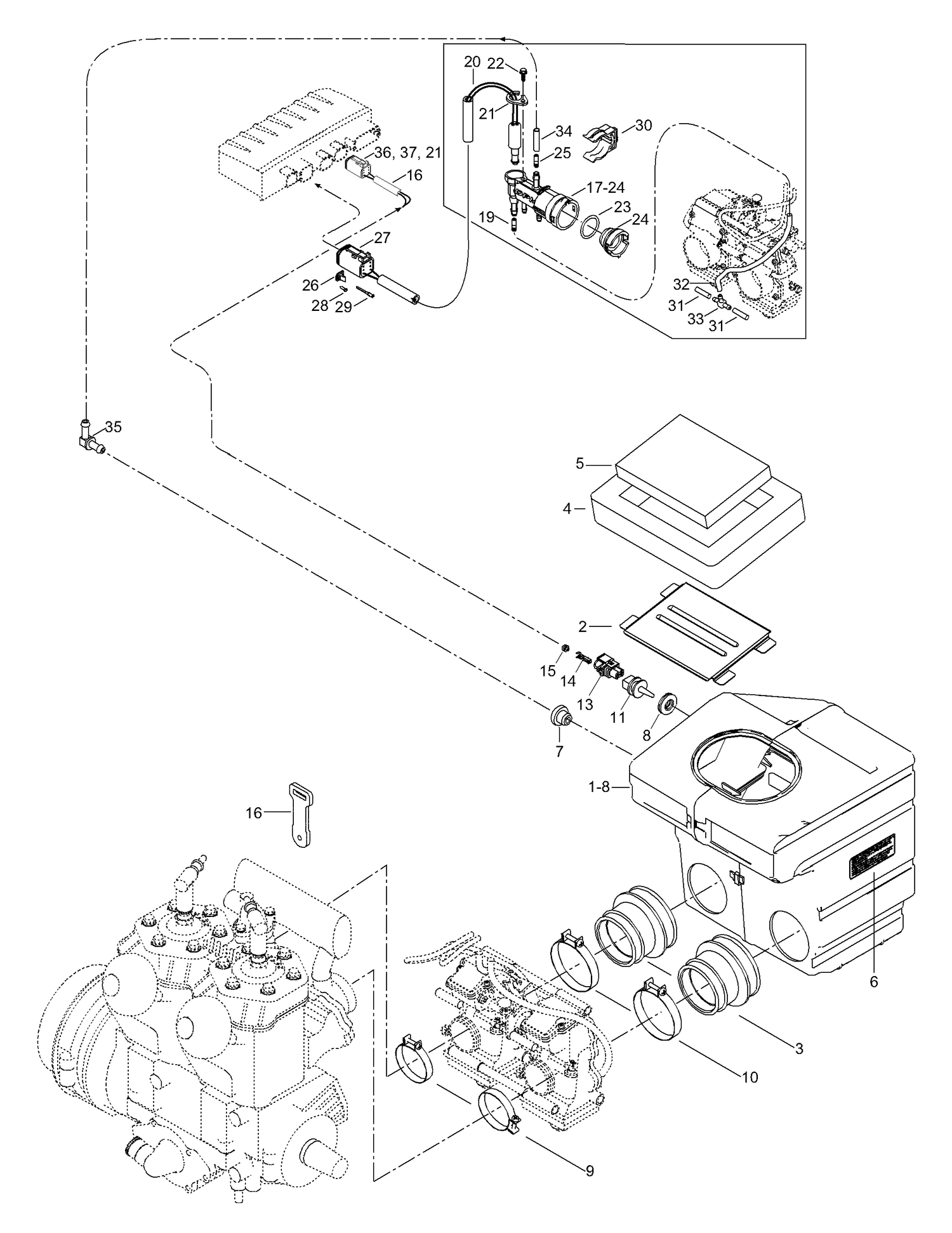

01- Air Silencer
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 508000004 | INTAKE GRILL - Call your local BRP dealership |
| 3 | 508000092 | Intake adaptor |
| 4 | 508000099 | Lower foam |
| 5 | 508000154 | Air filter |
| 6 | 516001191 | Caution Label, Air Intake |
| 7 | 513032908 | Grommet |
| 8 | 570065500 | GROMMET - Call your local BRP dealership |
| 9 | 512059835 | Clamp |
| 10 | 27046 | Clamp |
| 11 | 270600000 | AIR TEMPERATURE SENSOR - Call your local BRP dealership |
| 13 | 515175588 | FEMALE TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership |
| 14 | 278000998 | Female terminal |
| 15 | 278000999 | Seal |
| 16 | 515175332 | Tubing |
| 19 | 404161825 | STARTER JET - Call your local BRP dealership |
| 20 | 515175701 | PRESSURE MANIFOLD HARNESS - Call your local BRP dealership |
| 21 | 415061600 | SOLENOID LOCK - Call your local BRP dealership |
| 22 | 241140060 | Screw K40 x 10 |
| 23 | 293300042 | O-RING - Call your local BRP dealership |
| 24 | 270600009 | CAP - Call your local BRP dealership |
| 25 | 404161819 | Starter jet |
| 26 | 515175678 | Wedge |
| 27 | 515175673 | Female connector housing |
| 28 | 293000052 | Sealing Cap |
| 29 | 278000632 | Female terminal |
| 30 | 512058919 | SUPPORT - Call your local BRP dealership |
| 31 | 39004 | Hose 5/8 |
| 32 | 512059524 | Hose |
| 33 | 414729300 | T-FITTING - Call your local BRP dealership |
| 34 | 512059651 | Hose |
| 35 | 414580600 | Connector |
| 36 | 515175706 | Female Lock |
